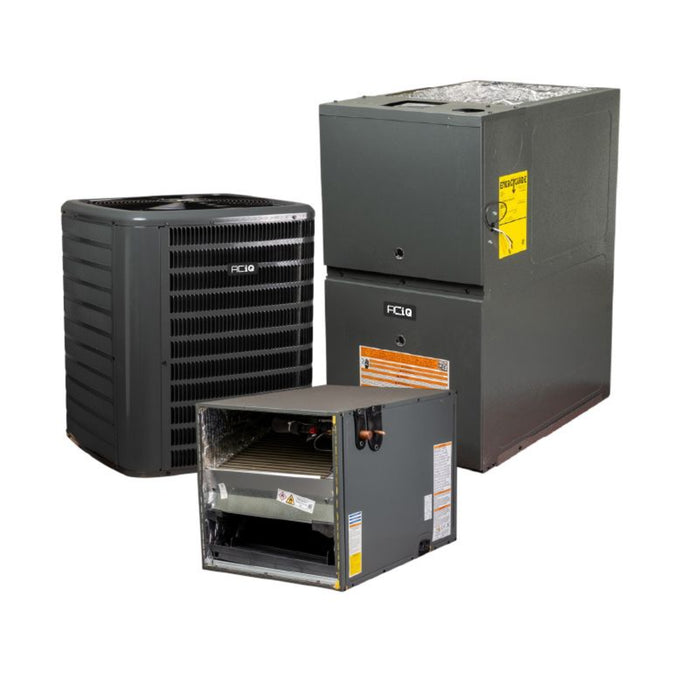

1.5 Ton 13.4 SEER2 80% AFUE 40,000 BTU Low NOx Gas Furnace and R32 Air Conditioner System - Horizontal
ADD TO CART FOR INSTANT SAVINGS!
ADD TO CART FOR INSTANT SAVINGS!
The ACiQ AQ-GLXS3BN3610 is a cooling-only condenser unit. Providing a 13.4 SEER2 efficiency with a single stage, reciprocating compressor, the AQ-GLXS3BN3610 is an inexpensive condenser to cool your home when paired with an AC coil.
The ACiQ AQ-GR9S800603BN gas furnace delivers dependable heating for small to medium homes. It is designed for consistent comfort and simple operation. Its efficient design helps reduce fuel use and improve indoor warmth.
This furnace provides 60,000 BTU input heating power. It delivers up to 48,000 BTU output at 80% efficiency. It is ideal for steady heating in smaller residential spaces.
The 80% AFUE rating meets standard furnace efficiency requirements. Most heat is used for home comfort, while some is lost through venting. This model requires metal venting for safe operation.
This single stage furnace runs at full power when heating is needed. The burner turns completely on or off based on thermostat demand. This simple system offers reliable and easy performance.
The furnace comes factory-ready for natural gas use. It can also be converted to propane with an optional conversion kit. This provides flexibility for different home setups.
The 9-speed ECM motor improves airflow and reduces electricity use. It replaces older PSC motors for better efficiency. This helps improve comfort while lowering energy costs.
The heavy steel cabinet protects internal furnace components. A self-diagnostic control board helps detect system issues quickly. The durable ignitor improves reliability and reduces maintenance needs.
This furnace supports both upflow and horizontal installation options. Color-coded wiring terminals make installation faster and simpler. It is designed to reduce labor time and installation cost.
| 3 Ton 13.4 SEER2 Single Stage Air Conditioner Condenser - R32 | |
|---|---|
| Feature | Spec |
| SKU | AQ-GLXS3BN3610 |
| Weight (in lbs) | 151.000000 |
| Brand/Manufacturer | Private Brand |
| Replaces | GSX130361, GSXN3N3610 |
| Product Features | Basic Efficiency, New Refrigerant Compliant |
| Cooling BTU | 36,000 |
| Decibel Level (dBA) | 69 |
| Horsepower | 1/8 HP |
| Refrigerant | R32 |
| SEER2 (Efficiency) | 13.4 |
| Condenser Stages | Single Stage |
| Compressor Type | Scroll |
| Liquid Line | 3/8" |
| Suction Line | 7/8" |
| Liquid Valve Size | 3/8" |
| Suction Valve Size | 7/8" |
| Electrical | 208 / 230 V. 1 Phase 60 Hz |
| Max Breaker Size | 30 Amps |
| Min. Breaker Size | 17.5 Amps |
| Tonnage | 3 Ton |
| Connection | Sweat |
| Height | 32 1/2" |
| Width | 26" |
| Depth | 26" |
| Warranty | 10 Years Parts Limited Warranty with Online Registration |
| Safety Information | PROPOSITION 65 WARNING |

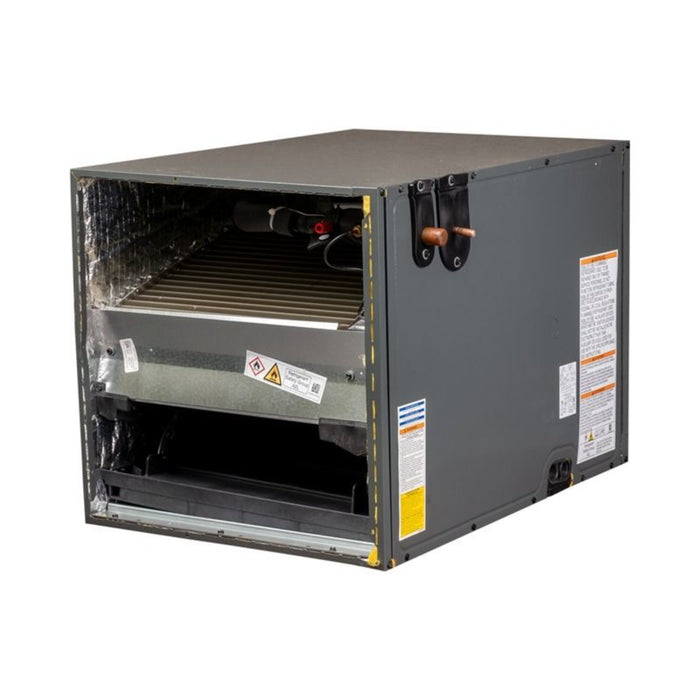

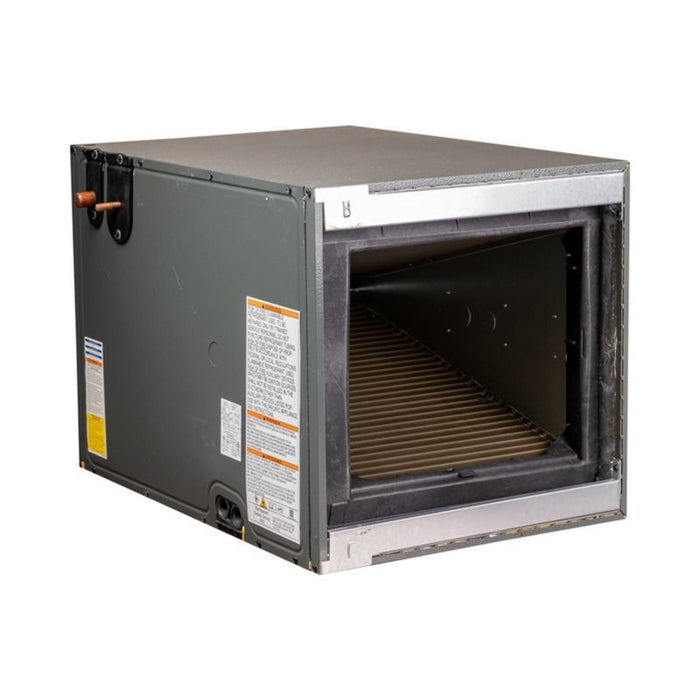

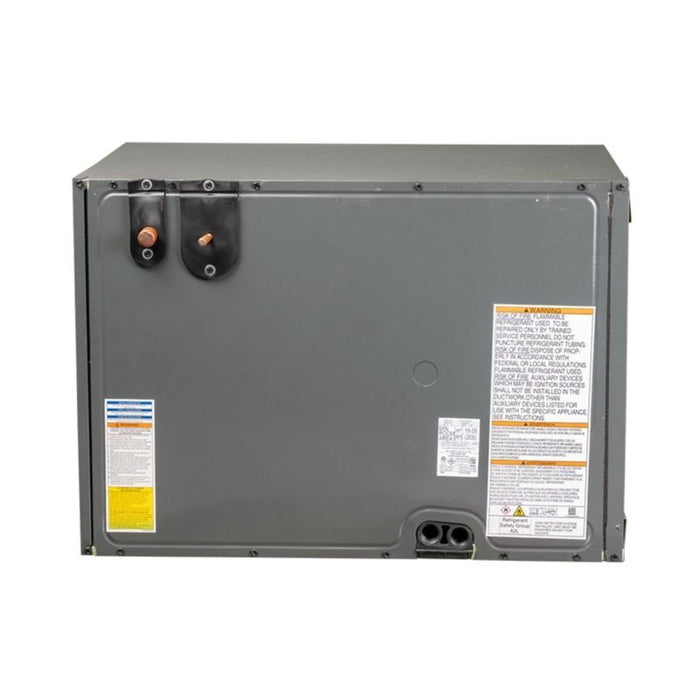

| 3 Ton 17.5" Height Horizontal Cased Evaporator Coil - TXV - R32 | |
| Feature | Spec |
| SKU | AQ-CHPTA3630B3 |
| Weight (in lbs) | 66.000000 |
| Brand/Manufacturer | Private Brand |
| Product Features | New Refrigerant Compliant |
| Configuration | Horizontal |
| Refrigerant | R32 |
| Liquid Line | 3/8" |
| Suction Line | 7/8" |
| Tonnage | 3 Ton |
| Style | A-Coil |
| Certification | ETL Listed | AHRI Certified |
| Height | 17.5" |
| Width | 30" |
| Depth | 21" |
| Warranty | 10 Years Parts with Online Registration |
| Safety Information | PROPOSITION 65 WARNING |
| 60,000 BTU 80% AFUE Single Stage Gas Furnace - 17.5" Width - Upflow/Horizontal | |
| Feature | Spec |
| SKU | AQ-GR9S800603BN |
| Weight (in lbs) | 100.000000 |
| AHRI Certificate Number | 215358049 |
| Airflow Direction | Upflow/Horizontal |
| Exhaust Flue Requirement | Metal |
| Brand/Manufacturer | Private Brand |
| Product Features | New Refrigerant Compliant |
| Furnace Efficiency / AFUE | 80% |
| Heating BTU | 60,000 |
| Blower Motor | 9-Speed - ECM |
| Maximum CFM | 1200 |
| Configuration | Upflow/Horizontal |
| Electrical | 115v 1 Phase 60 Hz |
| Max Breaker Size | 15 Amps |
| Min. Breaker Size | 7.7 Amps |
| Burner Stages | Single |
| Fuel Type | Propane, Natural Gas |
| Height | 33 3/8" |
| Width | 17 1/2" |
| Depth | 28" |
| Warranty | Lifetime Heat Exchanger and 10 Years Parts with Online Registration |
