The ACiQ AQ-GLXS3BN3010 is a durable, high-quality condenser unit that is the perfect cooling solution for homes up to 1650 square feet in northern states. At a capacity of 2.5 tons and a SEER2 rating of 13.4, this cooling-only condenser won’t break the bank while still reliably cooling your home for years to come. Easy to access service valves make installation by a licensed HVAC professional a breeze. Pay for high-end performance without the high-end price tag when you choose ACiQ.
Features
- 13.4 SEER2, 2.5 tons AC-only Condenser: With a 13.4 SEER2 efficiency rating and a tonnage of 2.5, this AC condenser is a great choice for small homes anywhere or medium-sized homes that experience shorter, milder summers.
- Single Stage: When properly sized and installed, a single stage condenser is a cost-effective and durable option to cool your home.
- R32 Refrigerant: With R32 refrigerant, this unit complies with Clean Air Act refrigerant requirements.
- Fully Charged for up to 15' of Line Set: The condenser comes fully pre-charged with enough refrigerant for up to 15 feet of line set.
High-Efficiency 60,000 BTU Gas Furnace for Reliable Home Heating
The ACiQ AQ-GR9S960603BN gas furnace delivers strong, efficient heating for small to medium homes. It is built for steady comfort, lower energy use, and long-term reliability. Its high-efficiency design helps reduce fuel waste and improve indoor warmth.
60,000 BTU Heating Capacity
This furnace provides 60,000 BTU input heating power. It delivers up to 57,600 BTU output at 96% efficiency. It maintains stable and comfortable indoor temperatures in cold weather.
96% AFUE Condensing Efficiency
The 96% AFUE rating makes this a high-efficiency condensing furnace. Most fuel is converted into usable heat for your home. Only a small portion is lost through venting. This model requires PVC venting for safe operation.
Reliable Single Stage Operation
This single stage furnace runs at full heating power when needed. The burner turns fully on or off based on thermostat demand. It offers simple and dependable heating performance.
Natural Gas and Propane Flexibility
The furnace comes factory-ready for natural gas use. It can also convert to propane using an optional LP kit. This provides flexible installation options for different homes.
Energy-Saving 9-Speed ECM Blower Motor
The 9-speed ECM blower motor improves airflow and reduces electricity use. It replaces older PSC motors for better efficiency. This helps lower energy bills while improving indoor comfort.
Durable Build and Smart Diagnostics
The heavy-gauge steel cabinet protects key furnace components. Its tight design reduces noise and heat loss. The self-diagnostic control board helps quickly identify system issues.
Long-Lasting Ignition and Warranty Coverage
The hot surface ignitor improves reliability and reduces maintenance needs. It is more efficient than older ignition systems. ACiQ includes a 10-year parts warranty and lifetime heat exchanger protection.
Flexible Installation Design
This furnace supports both upflow and horizontal installation options. A drain kit is required for horizontal installation setups. Color-coded terminals make wiring faster and easier, reducing installation time and cost.
Specifications
| 2.5 Ton 13.4 SEER2 Single Stage Air Conditioner Condenser - R32 |
| Feature |
Spec |
| SKU |
AQ-GLXS3BN3010 |
| Weight (in lbs) |
149.000000 |
| Brand/Manufacturer |
Private Brand |
| Replaces |
GSX130301 and GSXN3N3010 |
| Product Features |
Basic Efficiency, New Refrigerant Compliant |
| Cooling BTU |
30,000 |
| Decibel Level (dBA) |
74 |
| Horsepower |
1/8 HP |
| Refrigerant |
R32 |
| SEER2 (Efficiency) |
13.4 |
| Condenser Stages |
Single Stage |
| Compressor Type |
Rotary |
| Liquid Line |
3/8" |
| Suction Line |
3/4" |
| Liquid Valve Size |
3/8" |
| Suction Valve Size |
3/4" |
| Electrical |
208 / 230 V. 1 Phase 60 Hz |
| Max Breaker Size |
25 Amps |
| Min. Breaker Size |
14.7 Amps |
| Tonnage |
2.5 Ton |
| Connection |
Sweat |
| Height |
32 1/2" |
| Width |
26" |
| Depth |
26" |
| Warranty |
10 Years Parts Limited Warranty with Online Registration |
| Safety Information |
PROPOSITION 65 WARNING |

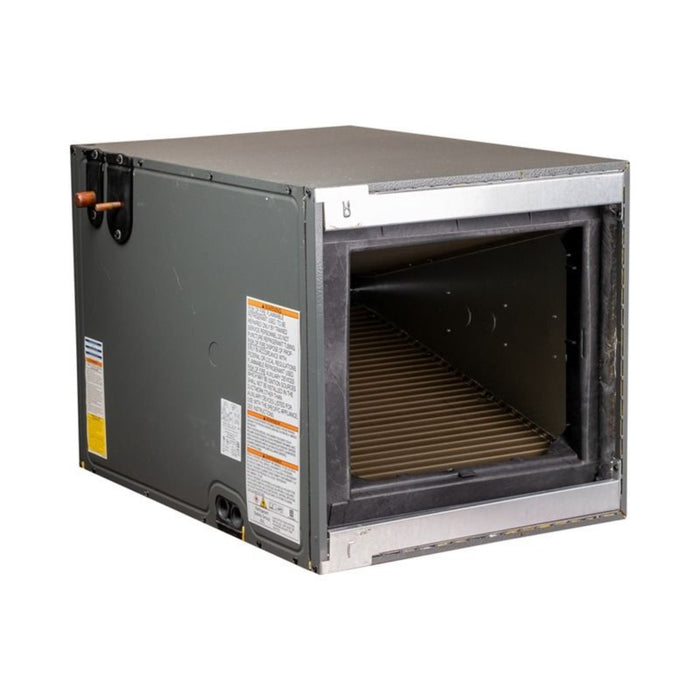

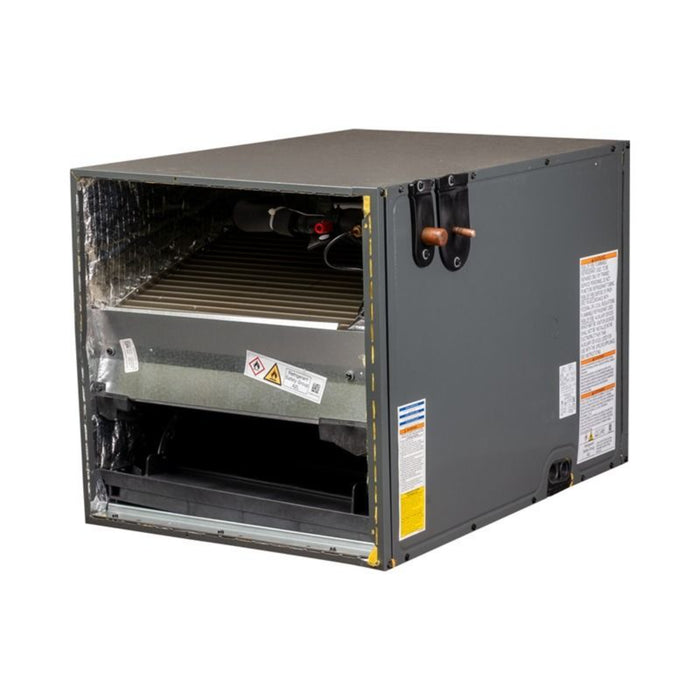

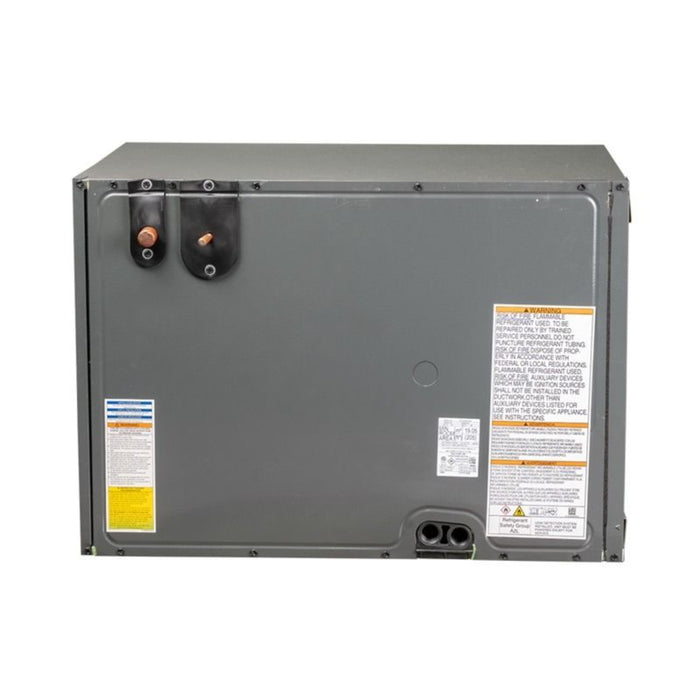

| 2.5 Ton 17.5" Height Horizontal Cased Evaporator Coil - TXV - R32 |
| Feature |
Spec |
| SKU |
AQ-CHPTA3026B3 |
| Weight (in lbs) |
59.000000 |
| Brand/Manufacturer |
Private Brand |
| Product Features |
New Refrigerant Compliant |
| Configuration |
Horizontal |
| Refrigerant |
R32 |
| Liquid Line |
3/8" |
| Suction Line |
7/8" |
| Tonnage |
2.5 Ton |
| Style |
A-Coil |
| Certification |
ETL Listed | AHRI Certified |
| Height |
17.5" |
| Width |
26" |
| Depth |
21" |
| Warranty |
10 Years Parts with Online Registration |
| Safety Information |
PROPOSITION 65 WARNING |
| 60,000 BTU 96% AFUE Single Stage Gas Furnace - 17.5" Width - Upflow/Horizontal |
| Feature |
Spec |
| SKU |
AQ-GR9S960603BN |
| Weight (in lbs) |
118.000000 |
| AHRI Certificate Number |
215224972 |
| Airflow Direction |
Upflow/Horizontal |
| Exhaust Flue Requirement |
Plastic / PVC |
| Brand/Manufacturer |
Private Brand |
| Product Features |
New Refrigerant Compliant |
| Furnace Efficiency / AFUE |
96% |
| Heating BTU |
60,000 |
| Blower Motor |
9-Speed - ECM |
| Maximum CFM |
1200 |
| Configuration |
Upflow/Horizontal |
| Energy Star |
Yes |
| Electrical |
115v 1 Phase 60 Hz |
| Max Breaker Size |
15 Amps |
| Min. Breaker Size |
10.1 Amps |
| Burner Stages |
Single |
| Fuel Type |
Propane, Natural Gas |
| Height |
34 1/2" |
| Width |
17.5" |
| Depth |
28 3/4" |
| Warranty |
Lifetime Heat Exchanger, 10 Years Unit Replacement, and 10 Years Parts with Online Registration |
Owner's Manual
