2.5 Ton 14.5 SEER2 R32 Heat Pump Split System - Multi-Positional
ADD TO CART FOR INSTANT SAVINGS!
ADD TO CART FOR INSTANT SAVINGS!
The ACiQ AQ-GLZS4BA3010 heat pump condenser is a standard efficiency, low-cost solution for an all-electric home when paired with a suitable heat pump coil or air handler. Just like all of ACiQ's equipment, the AQ-GLZS4BA3010 is manufactured with high-quality materials to provide a superior comfort in your home.
Utilizing advanced technology, the ACiQ heat pump condenser efficiently transfers heat between the indoors and outdoors, providing both heating and cooling functionalities in a single unit for year-round comfort. With its straightforward installation process, it not only ensures convenience but it's also cost-efficient, making it an ideal choice for those seeking an energy-efficient and hassle-free heating and cooling solution.
The ACiQ AQ-GLZS4BA3010 heat pump delivers reliable heating and cooling. It has a 2.5 ton capacity for small to medium homes. It helps maintain steady indoor comfort in all seasons.
This system uses 14.3 SEER2 efficiency. It meets current minimum energy standards. It helps reduce energy use compared to older systems while keeping upfront cost affordable.
SmartShift defrost technology improves cold weather performance. The multi-speed ECM blower motor adjusts airflow automatically. This keeps indoor temperatures more balanced and stable.
The outdoor condenser has a corrosion-resistant steel cabinet. It is tested for 500 hours of salt spray exposure. The indoor air handler includes a strong aluminum evaporator coil for long service life.

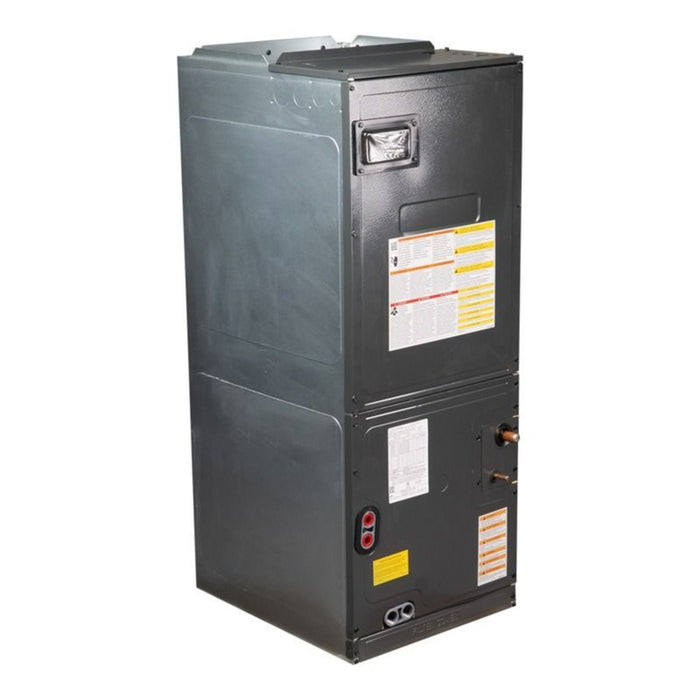

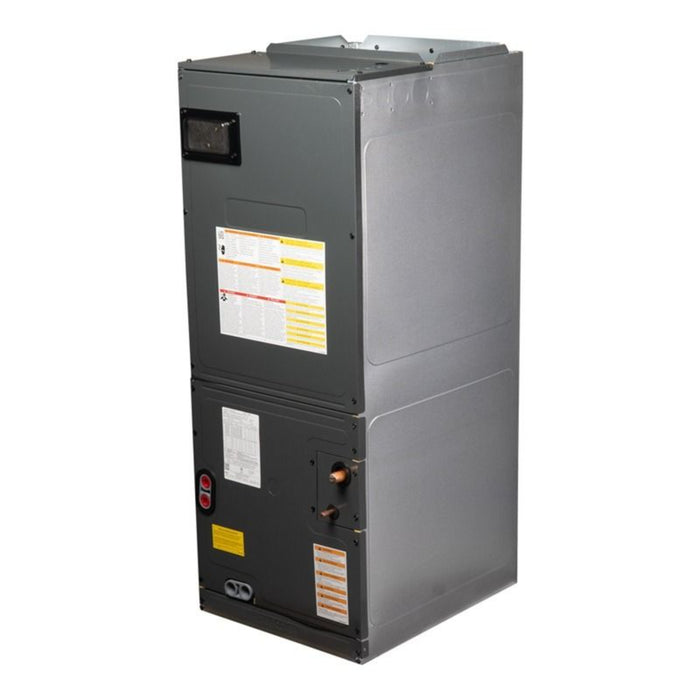

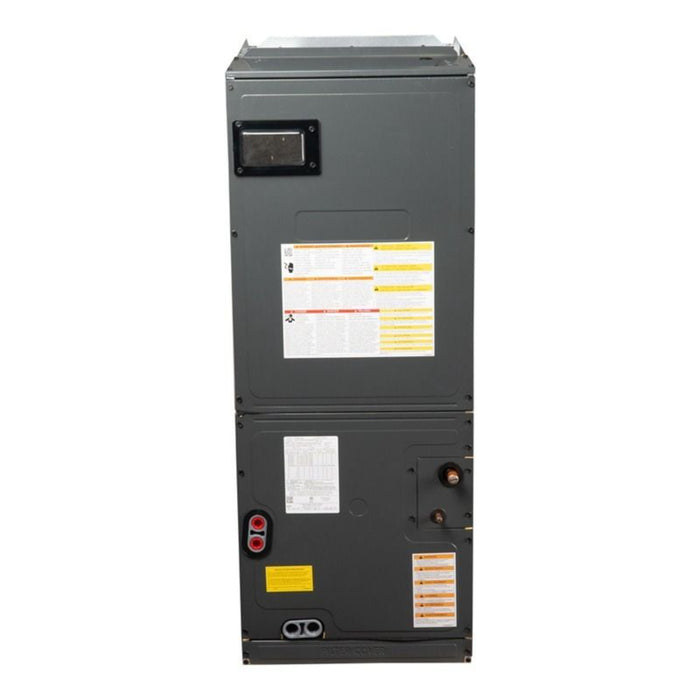

The air handler is multi-positional. It can be installed in upflow, downflow, or horizontal setups. SmartFrame design makes installation and maintenance faster and easier.
This heat pump uses R32 refrigerant for better efficiency. It requires a compatible R32 indoor system with leak detection safety.
Includes a 10-year parts warranty with online registration. Proper installation following local codes is required for warranty coverage.
| 2.5 Ton Multi-Positional Air Handler - R32 | |
|---|---|
| Feature | Spec |
| SKU | AQ-AMST30BU1300 |
| Weight (in lbs) | 129.000000 |
| Brand/Manufacturer | Private Brand |
| Product Features | New Refrigerant Compliant |
| Blower Motor | Multi-Speed Direct Drive ECM Motor |
| Maximum CFM | 1185 |
| Horsepower | 0.75 HP |
| Electric Backup Heat Capabilities (Optional) | 3 Kilowatts, 5 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts |
| Refrigerant | R32 |
| Liquid Valve Size | 3/8" |
| Suction Valve Size | 3/4" |
| Electrical | 208/240v 1 Phase 60Hz |
| Max Breaker Size | 15 Amps |
| Min. Breaker Size | 5.6 Amps |
| Tonnage | 2.5 Ton |
| Connection | 3/4" FPT |
| Height | 53 7/16" |
| Width | 17 9/16" |
| Depth | 21" |
| Warranty | 10 Years Parts with Online Registration |
| Safety Information | PROPOSITION 65 WARNING |
| 2.5 Ton 14.3 SEER2 Single Stage Heat Pump Condenser - R32 | |
| Feature | Spec |
| SKU | AQ-GLZS4BA3010 |
| Weight (in lbs) | 190.000000 |
| Brand/Manufacturer | Private Brand |
| Replaces | GSZ140301, GSZB403010 |
| Product Features | Basic Efficiency, New Refrigerant Compliant |
| HSPF2 | 7.8 |
| Cooling BTU | 30,000 |
| Heating BTU | 30,000 |
| Decibel Level (dBA) | 77 |
| Horsepower | 1/6 HP |
| Refrigerant | R32 |
| SEER2 (Efficiency) | 14.3 |
| Condenser Stages | Single Stage |
| Compressor Type | Rotary |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Liquid Valve Size | 3/8" |
| Suction Valve Size | 3/4" |
| Electrical | 208/230v 1 Phase 60 Hz |
| Max Breaker Size | 25 Amps |
| Min. Breaker Size | 15.0 Amps |
| Tonnage | 2.5 Ton |
| Connection | Sweat |
| Height | 39 1/2" |
| Width | 29" |
| Depth | 29" |
| Warranty | 10 Years Parts Limited Warranty with Online Registration |
