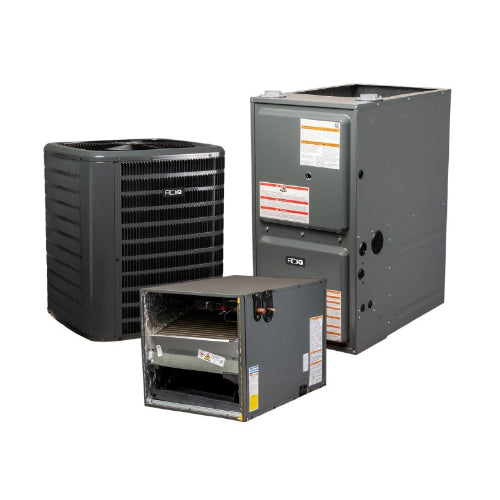

2 Ton 14.5 SEER2 96% AFUE 40,000 BTU Gas Furnace and R32 Heat Pump System - Horizontal
ADD TO CART FOR INSTANT SAVINGS!
ADD TO CART FOR INSTANT SAVINGS!

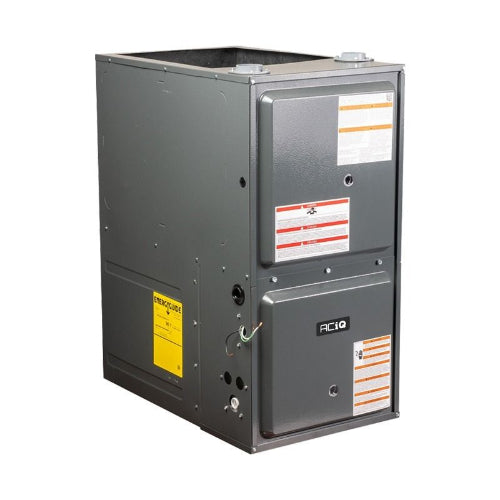

The ACiQ brand consistently brings efficiency and other cost-saving benefits and technology to their furnace. The AQ-GD9T960403BN gas furnace is no exception to ACiQ's ingenuity in design, bringing you comfort at a high efficiency for any downflow or horizontal application.
The ACiQ AQ-GD9T960403BN gas furnace is designed for small homes in average climate conditions. It delivers 40,000 BTU input and 38,400 BTU output. This provides steady, efficient heating while maintaining indoor comfort during cold seasons.
This furnace operates at 96% AFUE efficiency. Only 4% of fuel is lost during venting. The remaining energy is used to heat your home. This helps reduce wasted fuel and lowers monthly heating costs.
The two stage system improves comfort and efficiency. It runs at 60% output on mild days and 100% output on colder days. This helps maintain more stable indoor temperatures and reduces sudden temperature swings.
A 9-speed ECM blower motor improves airflow and reduces electricity use. It replaces older PSC motors for better efficiency and smoother air delivery. This helps spread warm air evenly across all rooms.
A heavy-gauge steel cabinet adds strength and reduces noise. Internal insulation helps reduce air leakage and improves efficiency. A modern hot surface ignitor replaces the old pilot system for safer and more efficient startup.
This furnace supports downflow and horizontal installation options. It comes ready for natural gas and can be converted to propane using an optional LP kit. A self-diagnostic control board helps identify issues quickly for easier maintenance and faster service.
The unit includes a 10-year parts warranty and lifetime heat exchanger warranty when properly registered and installed according to manufacturer and local code requirements.
| 2 Ton 14.3 SEER2 Single Stage Heat Pump Condenser - R32 | |
|---|---|
| Feature | Spec |
| SKU | AQ-GLZS4BA2410 |
| Weight (in lbs) | 165.000000 |
| Brand/Manufacturer | Private Brand |
| Replaces | GSZ140241, GSZB402410 |
| Product Features | Basic Efficiency, New Refrigerant Compliant |
| Cooling BTU | 24,000 |
| Heating BTU | 24,000 |
| Decibel Level (dBA) | 74 |
| Horsepower | 1/6 HP |
| Refrigerant | R32 |
| HSPF2 | 7.8 |
| SEER2 (Efficiency) | 14.3 |
| Condenser Stages | Single Stage |
| Compressor Type | Rotary |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Liquid Valve Size | 3/8" |
| Suction Valve Size | 3/4" |
| Electrical | 208/230v 1 Phase 60 Hz |
| Max Breaker Size | 15 Amps |
| Min. Breaker Size | 11.2 Amps |
| Tonnage | 2 Ton |
| Connection | Sweat |
| Height | 32 1/2" |
| Width | 29" |
| Depth | 29" |
| Warranty | 10 Years Parts Limited Warranty with Online Registration |
| Safety Information | PROPOSITION 65 WARNING |
| 2 Ton 17.5" Height Horizontal Cased Evaporator Coil - TXV - R32 | |
| Feature | Spec |
| SKU | AQ-CHPTA2426B3 |
| Weight (in lbs) | 55.000000 |
| Brand/Manufacturer | Private Brand |
| Product Features | New Refrigerant Compliant |
| Configuration | Horizontal |
| Refrigerant | R32 |
| Liquid Line | 3/8" |
| Suction Line | 7/8" |
| Tonnage | 2 Ton |
| Style | A-Coil |
| Certification | ETL Listed | AHRI Certified |
| Height | 17.5" |
| Width | 26" |
| Depth | 21" |
| Warranty | 10 Years Parts with Online Registration |
| Safety Information | PROPOSITION 65 WARNING |
| 40,000 BTU 96% AFUE Two Stage Gas Furnace | 17.5" Width | Downflow / Horizontal | |
| Feature | Spec |
| SKU | AQ-GD9T960403BN |
| Weight (in lbs) | 112.000000 |
| AHRI Certificate Number | 215225019 |
| Airflow Direction | Downflow/Horizontal |
| Exhaust Flue Requirement | Plastic / PVC |
| Brand/Manufacturer | Private Brand |
| Product Features | New Refrigerant Compliant |
| Furnace Efficiency / AFUE | 96% |
| Heating BTU | 40,000 |
| Blower Motor | 9-Speed - ECM |
| Maximum CFM | 1200 |
| Configuration | Downflow/Horizontal |
| Energy Star | Yes |
| Electrical | 115 V. 1 Phase 60 Hz |
| Max Breaker Size | 15 Amps |
| Min. Breaker Size | 7.8 Amps |
| Burner Stages | Two |
| Fuel Type | Propane, Natural Gas |
| Height | 34.5" |
| Width | 17.5" |
| Depth | 28.75" |
| Warranty | Lifetime Heat Exchanger, 10 Years Unit Replacement, and 10 Years Parts with Online Registration |
