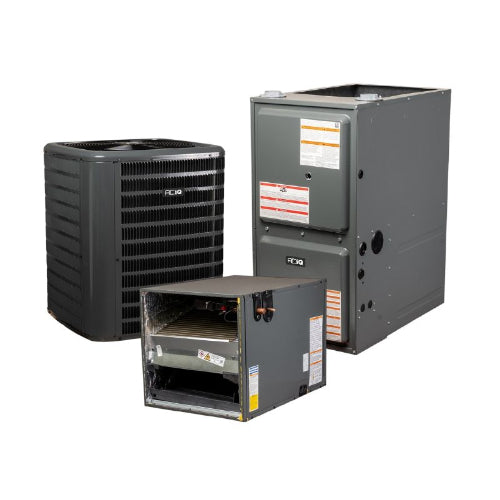

2 Ton 14.5 SEER2 96% AFUE 60,000 BTU Gas Furnace and R32 Heat Pump System - Horizontal
ADD TO CART FOR INSTANT SAVINGS!
ADD TO CART FOR INSTANT SAVINGS!

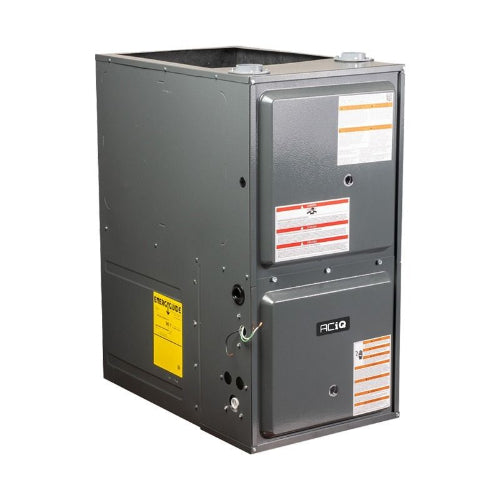

The AQ-GR9S960603BN ACiQ gas furnace features high-quality construction and efficient operation at a great value. The AQ-GR9S960603BN single-stage, 9-speed furnace utilizes ACiQ's superior heat exchanger design to provide efficient, reliable heating to your home. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the ACiQ AQ-GR9S960603BN.
The ACiQ AQ-GR9S960603BN is a high efficiency gas furnace.
It is designed for small to medium homes in normal climates.
It delivers strong heat output with stable and reliable performance.
This furnace runs at 96% AFUE efficiency rating.
Most fuel is converted into usable heat for your home.
Only about 4% is lost through venting during operation.
PVC venting is required for safe and proper exhaust flow.
This helps reduce long term heating energy costs.
This is a single stage gas furnace system.
It runs at full 100% output when heat is needed.
It works like an on or off heating system.
This provides simple and dependable comfort control.
The unit runs on natural gas from the factory.
It can be converted to propane using an LP kit.
This gives more flexibility for different home setups.
A 9-speed ECM blower motor improves airflow efficiency.
It uses less electricity than older PSC motors.
This helps lower energy use and operating costs.
Heavy gauge steel cabinet reduces noise and heat loss.
A hot surface ignitor improves safety and reliability.
The self diagnostic board helps detect system issues quickly.
This supports easier maintenance and faster service.
The furnace supports upflow or horizontal installation options.
Color coded terminals help speed up installation work.
A drain kit is required for horizontal installation setup.
Includes 10-year parts and lifetime heat exchanger warranty.
| 2 Ton 14.3 SEER2 Single Stage Heat Pump Condenser - R32 | |
|---|---|
| Feature | Spec |
| SKU | AQ-GLZS4BA2410 |
| Weight (in lbs) | 165.000000 |
| Brand/Manufacturer | Private Brand |
| Replaces | GSZ140241, GSZB402410 |
| Product Features | Basic Efficiency, New Refrigerant Compliant |
| Cooling BTU | 24,000 |
| Heating BTU | 24,000 |
| Decibel Level (dBA) | 74 |
| Horsepower | 1/6 HP |
| Refrigerant | R32 |
| HSPF2 | 7.8 |
| SEER2 (Efficiency) | 14.3 |
| Condenser Stages | Single Stage |
| Compressor Type | Rotary |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Liquid Valve Size | 3/8" |
| Suction Valve Size | 3/4" |
| Electrical | 208/230v 1 Phase 60 Hz |
| Max Breaker Size | 15 Amps |
| Min. Breaker Size | 11.2 Amps |
| Tonnage | 2 Ton |
| Connection | Sweat |
| Height | 32 1/2" |
| Width | 29" |
| Depth | 29" |
| Warranty | 10 Years Parts Limited Warranty with Online Registration |
| Safety Information | PROPOSITION 65 WARNING |
| 2 Ton 17.5" Height Horizontal Cased Evaporator Coil - TXV - R32 | |
| Feature | Spec |
| SKU | AQ-CHPTA2426B3 |
| Weight (in lbs) | 55.000000 |
| Brand/Manufacturer | Private Brand |
| Product Features | New Refrigerant Compliant |
| Configuration | Horizontal |
| Refrigerant | R32 |
| Liquid Line | 3/8" |
| Suction Line | 7/8" |
| Tonnage | 2 Ton |
| Style | A-Coil |
| Certification | ETL Listed | AHRI Certified |
| Height | 17.5" |
| Width | 26" |
| Depth | 21" |
| Warranty | 10 Years Parts with Online Registration |
| Safety Information | PROPOSITION 65 WARNING |
| 60,000 BTU 96% AFUE Single Stage Gas Furnace - 17.5" Width - Upflow/Horizontal | |
| Feature | Spec |
| SKU | AQ-GR9S960603BN |
| Weight (in lbs) | 118.000000 |
| AHRI Certificate Number | 215224972 |
| Airflow Direction | Upflow/Horizontal |
| Exhaust Flue Requirement | Plastic / PVC |
| Brand/Manufacturer | Private Brand |
| Product Features | New Refrigerant Compliant |
| Furnace Efficiency / AFUE | 96% |
| Heating BTU | 60,000 |
| Blower Motor | 9-Speed - ECM |
| Maximum CFM | 1200 |
| Configuration | Upflow/Horizontal |
| Energy Star | Yes |
| Electrical | 115v 1 Phase 60 Hz |
| Max Breaker Size | 15 Amps |
| Min. Breaker Size | 10.1 Amps |
| Burner Stages | Single |
| Fuel Type | Propane, Natural Gas |
| Height | 34 1/2" |
| Width | 17.5" |
| Depth | 28 3/4" |
| Warranty | Lifetime Heat Exchanger, 10 Years Unit Replacement, and 10 Years Parts with Online Registration |
