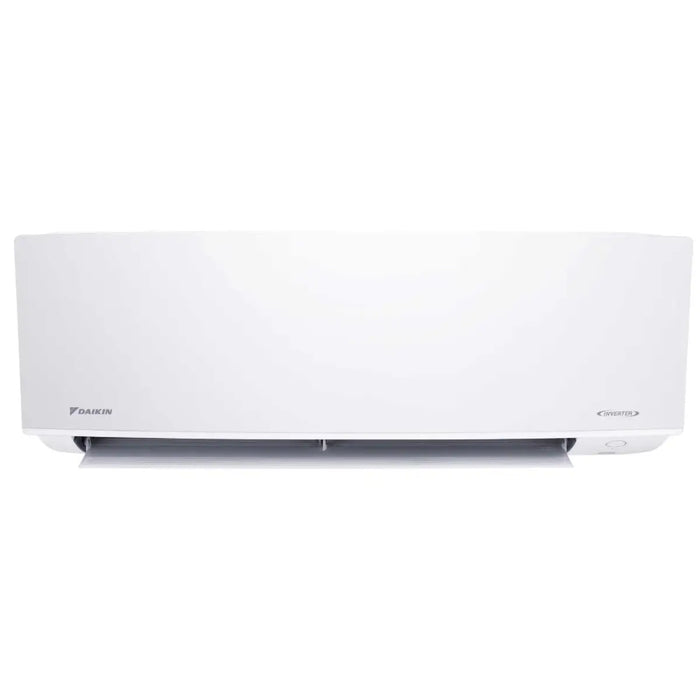

Daikin - 1 Ton/12,000 BTU - Oterra Series Wall Mount Mini Split AC and Condenser System - SEER2 21.0 - 230V - R410A

Daikin, a renowned HVAC manufacturer, offers the RXF12AXVJU FTXF12AXVJU wall-mounted system for single-zone heating and cooling. Pairing a wall-mounted indoor unit with an outdoor heat pump, it provides efficient and quiet air comfort. Daikin units feature energy-saving features for cost-efficient home comfort.

Features

• Energy Efficiency: Achieve up to 21 SEER and up to 12.5 EER with a variable speed inverter compressor, reducing energy consumption and ensuring efficient operation.
• Inverter Compressor: Efficiently adjusts compressor speed to maintain consistent temperature, reducing energy usage and ensuring quiet operation.
• Enhanced Durability: Benefit from anti-corrosion treatment on the heat exchanger and hydrophilic coated fins for improved cleanliness and lifespan of the system.
• Convenient Control: Easily manage the system from anywhere using the Daikin Comfort App or the backlit wireless remote controller for added convenience.
• Hassle-Free Maintenance: Enjoy simplified maintenance with accessible removal of the drain pan, blower wheel, and indoor fan motor for easy cleaning and servicing, ensuring system longevity and efficiency.

Specification

• Type: Wall Mounted
• Product Line: Oterra
• Product Category: Mini Split Heat Pump System
• Operating Mode: Heating and Cooling
• Number of Zones: 1
• Refrigerant Type: R-410A
• DOE Regional Compliance: Nationwide
• Line Set Size: 1/4" x 3/8"
• Performance:
• Cooling BTU: 12000
• Cooling Capacity: 12000 BTU
• Heating Capacity: 13500 BTU
• Cooling BTU Output Range:   4,400/14,600
• Heating BTU Output Range:  4,400/18,000
• Low Ambient Heating: No
• Minimum Outdoor Temperature for Heating: 5°F (-15°C)
• Minimum Outdoor Temperature for Cooling: 50°F (10°C)
• SEER (Seasonal Energy Efficiency Ratio): 21.0
• EER (Energy Efficiency Ratio): 12.5
• Electrical Data:
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Dimensions:
• Product Weight: 83.4 Pounds
• Shipping Weight: 93.4 Pounds
• Certifications:
• ETL Listed: Yes
• AHRI Certified: Yes
• AHRI Reference Number: 213895720

Owner's Manual

• Brochure
• Service Manual
• Installation Manual
• Specification
• Warranty

All Daikin products are to be installed in accordance with the manufacturer's installation methods and recommendations by a licensed HVAC-R/electrical/plumbing technician, as required. Failure to do so, may result in voiding the manufacturer's warranty.”
