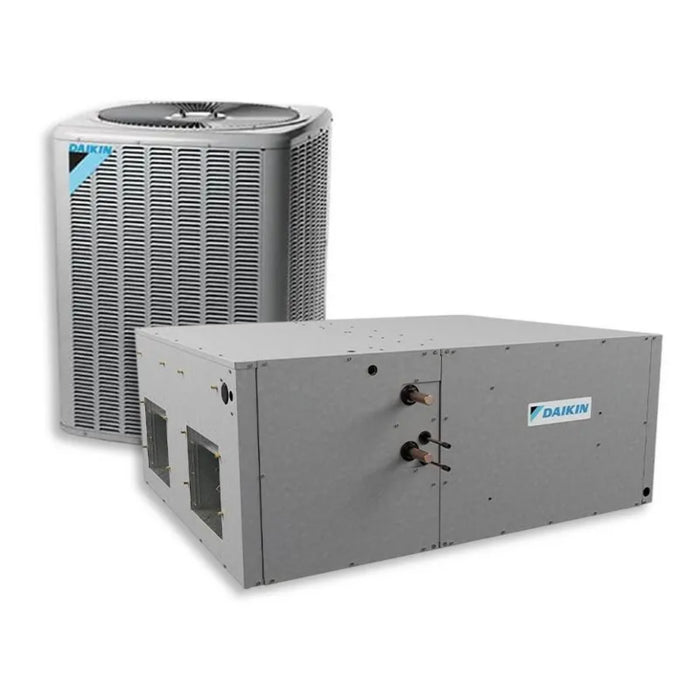

The Daikin commercial heat pump condenser and indoor air handler is the perfect system to fulfill your larger-scale heating and cooling needs. The condenser is capable of ground-level or rooftop installations and its design includes an innovative louvered sound control top. This system is a great choice to provide comfort cooling in larger offices and retail stores.

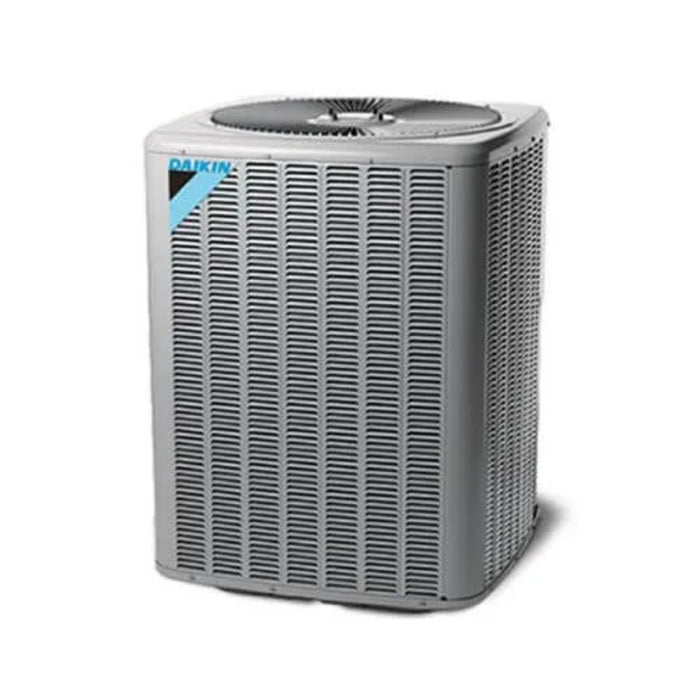

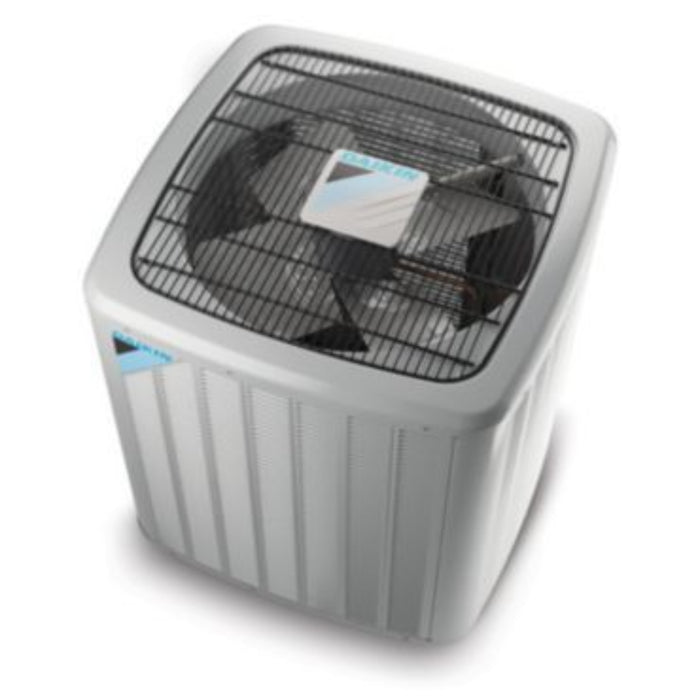

Daikin 10 Ton 11.2 EER / 16 IEER Commercial Heat Pump Condenser - 460V - R32 | |
---|---|
SKU | DH6TE12040 |
Refrigerant Charge | Pre-Charged For: 15' |
Weight | 370.000000 |
Manufacturer | Daikin |
Replaces | DZ14XA1204 |
Cooling BTU | 115,000 BTU |
Heating BTU | 100,00 BTU |
Decibel Level (dBA) | 84 Decibels |
Refrigerant | R32 |
EER | 11 |
IEER | 14.1 |
Condenser Stages | Two Stage |
Compressor Type | Scroll |
Liquid Valve Size | 5/8" |
Suction Valve Size | 1 3/8" |
Electrical | 460v 3 Phase 60 Hz |
Electric Phase Filter | Three Phase |
Max Breaker Size | 35 Amps |
Min. Breaker Size | 22 Amps |
Tonnage | 10 Ton |
Height | 41.5" |
Width | 35.5" |
Depth | 35.5" |
Warranty | 5 Years with Online Registration |

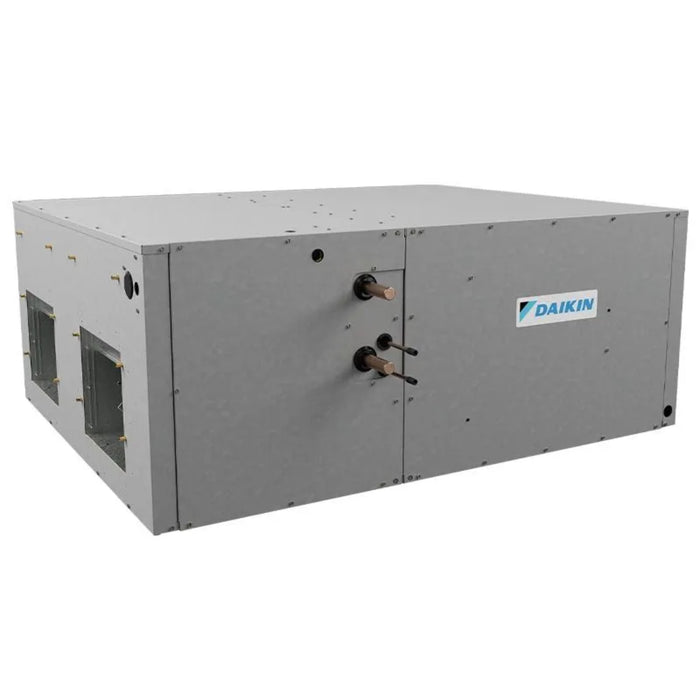

Daikin 10 Ton Multi-Position Commercial Air Handler - 460V - R32 | |
SKU | DAQ12034 |
Weight | 430.000000 |
Manufacturer | Daikin |
Replaces | DAX12044 |
Cooling BTU | 90,000 BTU |
Blower Motor | Multi Speed - PSC |
Drive Type | Belt |
Maximum CFM | 4000 |
Refrigerant | R32 |
Liquid Line | 3/8" (2) |
Suction Line | 1 1/8" (2) |
Electrical | 460 V. 3 Phase 60 Hz |
Electric Phase Filter | Three Phase |
Min. Breaker Size | 3.63 |
Tonnage | 10 Ton |
Height | 60.5" |
Width | 48.25" |
Depth | 24" |
Warranty | 5 Years with Online Registration |
