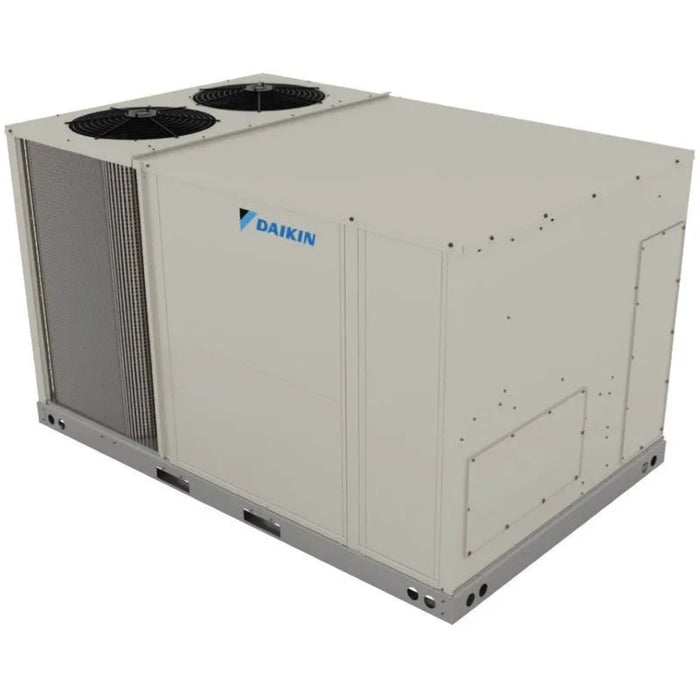

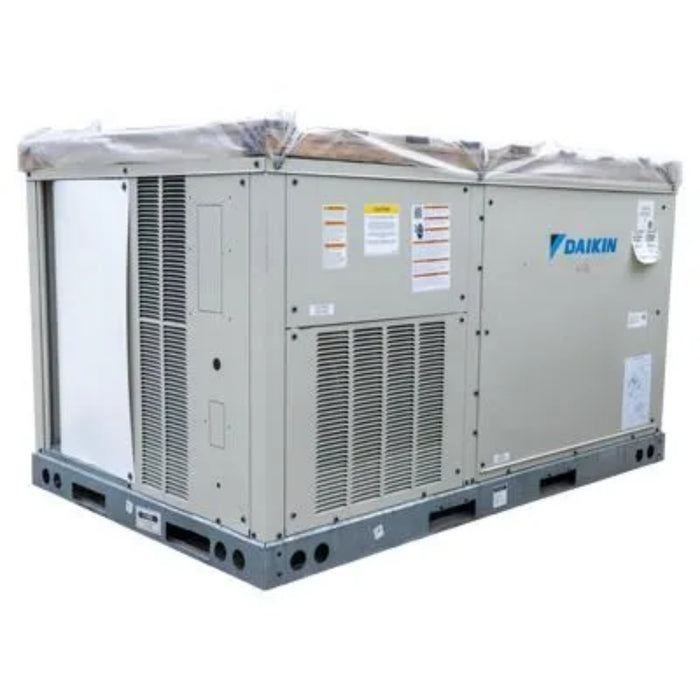

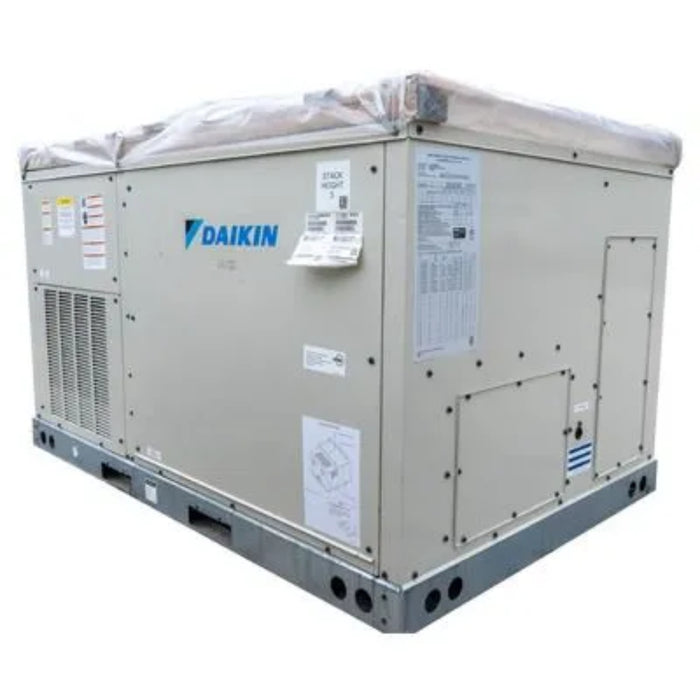

Daikin 12.5 Ton 14 EER Commercial Packaged Air Conditioner - 208/230V 3 Phase - R32 | |
---|---|
SKU | DSC1503D000001S |
Refrigerant Charge | Pre-charged |
Weight (in lbs) | 1230.000000 |
Brand/Manufacturer | Daikin |
Replaces | DFC1503D000001S |
Additional Information | Uses two 20" x 25" x 2" and two 25" x 25" x 2" filters |
Cooling BTU | 140,000 BTU |
Drive Type | Direct |
Maximum CFM | 4200 |
Decibel Level (dBA) | 86.8 decibels |
Horsepower | 0.5 HP |
Configuration | Downflow, Horizontal |
Refrigerant | R32 |
EER | 11 |
IEER | 14.4 |
Condenser Stages | Single Stage |
Compressor Type | Scroll |
Electrical | 208/230v 3 Phase 60 Hz |
Phase | Three Phase |
Max Breaker Size | 70/70 Amps |
Min. Breaker Size | 59.1/59.1 Amps |
Tonnage | 12.5 Ton |
Height | 54 5/8" |
Width | 60 3/8" |
Depth | 54 5/8" |
Warranty | 20 Years Heat Exchanger, 5 Years Parts with Online Registration |
All Daikin products are to be installed in accordance with the manufacturer's installation methods and recommendations by a licensed HVAC-R/electrical/plumbing technician, as required. Failure to do so, may result in voiding the manufacturer's warranty.
