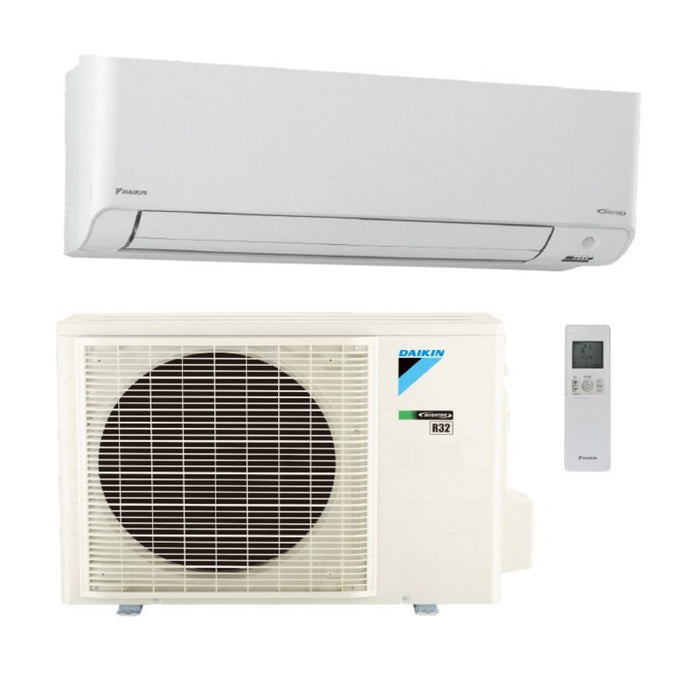

Daikin - 24,000 BTU - Atmosphera Series Wall Mount Mini Split Heat Pump System - SEER2 22 - 230V - R32
ADD TO CART FOR INSTANT SAVINGS!
ADD TO CART FOR INSTANT SAVINGS!
The 24,000 BTU Daikin Atmosphera 22 SEER2 Single Zone Wall Mount Mini Split Heat Pump System is an energy-efficient and high-performance solution designed for year-round comfort. Perfect for residential and light commercial applications, this system features advanced inverter technology, a sleek wall-mounted design, and eco-friendly R-32 refrigerant. With a 22 SEER2 rating, the Atmosphera series ensures outstanding energy savings while delivering powerful heating and cooling.

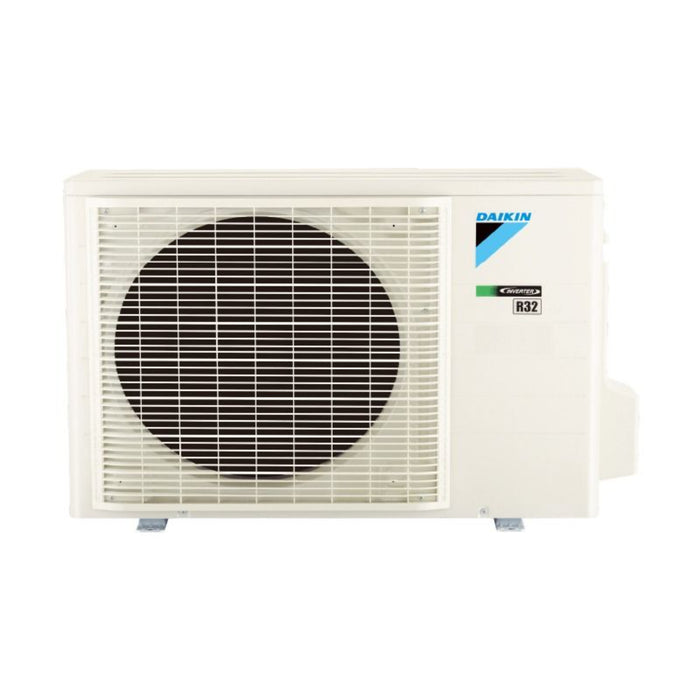

| Daikin 24,000 BTU Atmosphera Single Zone Mini Split Heat Pump Condenser - R32 | 230V | |
|---|---|
| Feature | Spec |
| SKU | RXM24WVJU9 |
| Refrigerant Charge | 2.98 lb |
| Weight (in lbs) | 132.000000 |
| Brand/Manufacturer | Daikin |
| Cooling BTU | 21,600 |
| Heating BTU | 24,000 |
| Decibel Level (dBA) | 56 |
| Refrigerant | R32 |
| HSPF2 | 9.5 |
| SEER2 (Efficiency) | 22 |
| Compressor Type | Swing |
| Liquid Line | 1/4" |
| Suction Line | 5/8" |
| Electrical | 208-230 V | 60 Hz |1 Phase |
| Max Breaker Size | 20 A |
| Min. Breaker Size | 19.8 A |
| BTU/Tonnage | 24,000 BTU/2 Ton |
| Min/Max Outdoor Temp for Heating | -13°F to 64.4°F |
| Min/Max Outdoor Temp for Cooling | 50°F to 114.8°F |
| Zone Compatibility | Single Zone |
| Height | 28.93" |
| Width | 34.25" |
| Depth | 12.62" |
| Warranty | 10 Year Compressor / 7 Years Parts Warranty with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING |
| Daikin 24,000 BTU Atmosphera Multi Zone Wall Mount Mini Split Air Handler - R32 | 230V | |
| Feature | Spec |
| SKU | FTXM24WVJU9 |
| Weight (in lbs) | 33.000000 |
| Brand/Manufacturer | Daikin |
| Cooling BTU | 21600 |
| Heating BTU | 24000 |
| Maximum CFM | 844 Hi / 653 Med / 498 Lo / 452 SL CFM (Airflow |
| Decibel Level (dBA) | 34 - 51 dBA |
| Refrigerant | R32 |
| HSPF2 | 10 |
| Liquid Line | 3/8" |
| Suction Line | 5/8" |
| BTU/Tonnage | 24,000 BTU/2 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 11.75" |
| Width | 43.31" |
| Depth | 10.81" |
| Warranty | 10 Year Compressor / 7 Years Parts Warranty with Online Registration |
All Daikin products are to be installed in accordance with the manufacturer's installation methods and recommendations by a licensed HVAC-R/electrical/plumbing technician, as required. Failure to do so, may result in voiding the manufacturer's warranty.
