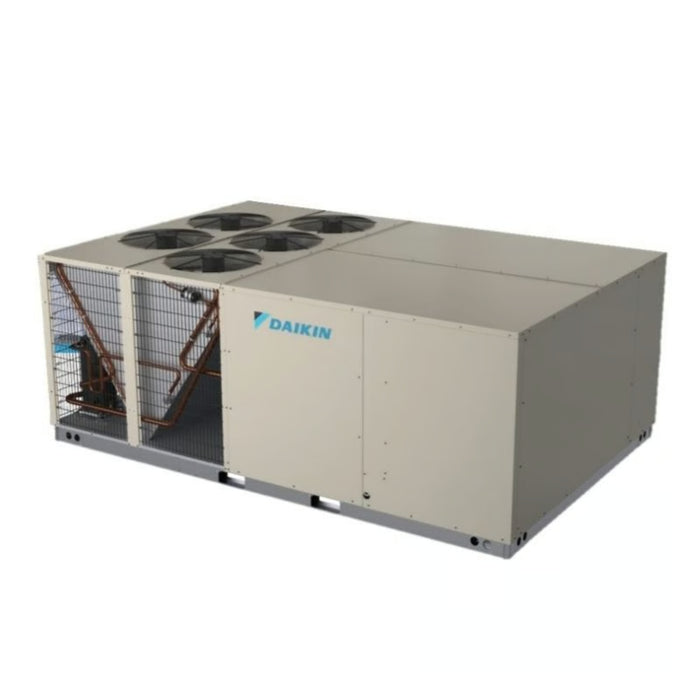

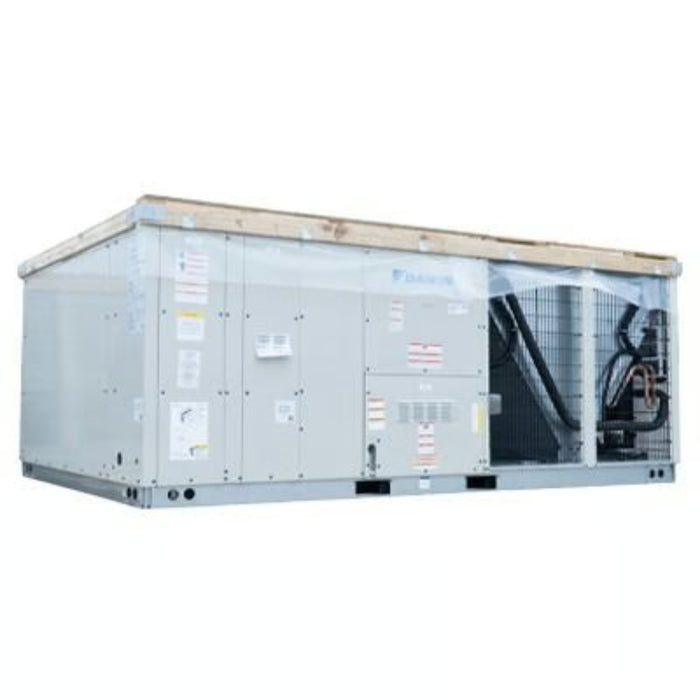

Daikin 25 Ton 400,000 BTU Gas/Electric Light Commercial Packaged Unit - 460V 3 Phase - R32 | |
---|---|
SKU | DSG3004DH00001S |
Refrigerant Charge | Pre-Charged |
Weight (in lbs) | 2270.000000 |
AHRI Certificate Number | 210331723 |
Brand/Manufacturer | Daikin |
Filter | 20" X 20" X 2" (8) |
Cooling BTU | 290,000 BTU |
Heating BTU | 400,000 BTU |
Drive Type | Direct |
Static Pressure | Standard |
Maximum CFM | 8200 |
Decibel Level (dBA) | 91.3 decibels |
Motor RPM | 300-1600 |
Horsepower | 3.5 |
Configuration | Downflow |
Refrigerant | R32 |
Efficiency | 81% |
EER | 9.8 |
IEER | 13 |
Condenser Stages | Single Stage |
Compressor Type | Scroll |
Electrical | 460 V. 3 Phase 60 Hz |
Phase | Three Phase |
Max Breaker Size | 80 amps |
Min. Breaker Size | 70 amps |
Tonnage | 25 Ton |
Height | 51" |
Width | 88 1/2" |
Depth | 133 7/8" |
Warranty | 5 Years with Online Registration |
All Daikin products are to be installed in accordance with the manufacturer's installation methods and recommendations by a licensed HVAC-R/electrical/plumbing technician, as required. Failure to do so, may result in voiding the manufacturer's warranty.
