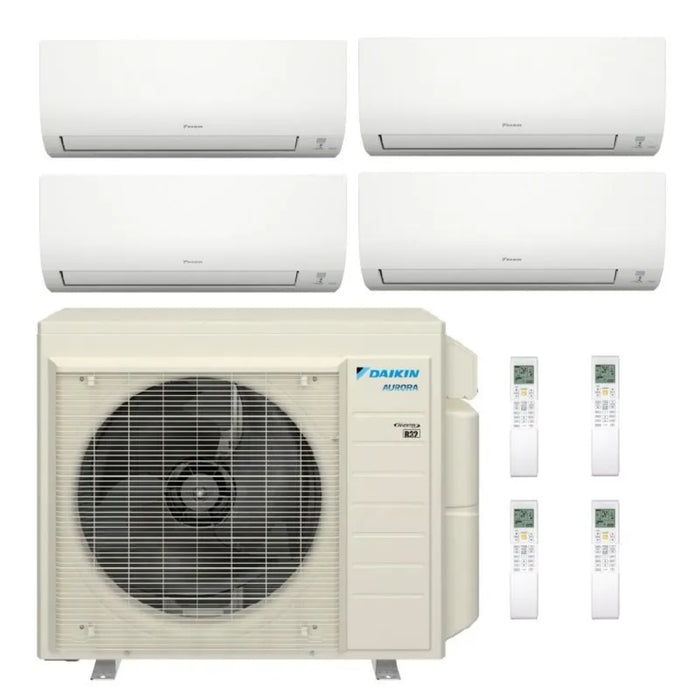

36,000 BTU Daikin 20 SEER2 Quad Zone Wall Mount Mini Split Heat Pump System - R32 | 230V - 7+9+9+9
The Daikin 36,000 BTU 20 SEER2 Quad Zone Wall Mount Mini Split Heat Pump System is an advanced and energy-efficient climate control solution designed for multi-room applications. With four indoor units (7K + 9K + 9K + 9K BTU), this system allows for independent temperature control in different areas, optimizing comfort and efficiency. Featuring inverter technology and eco-friendly R32 refrigerant, it ensures reliable heating and cooling with minimal environmental impact.

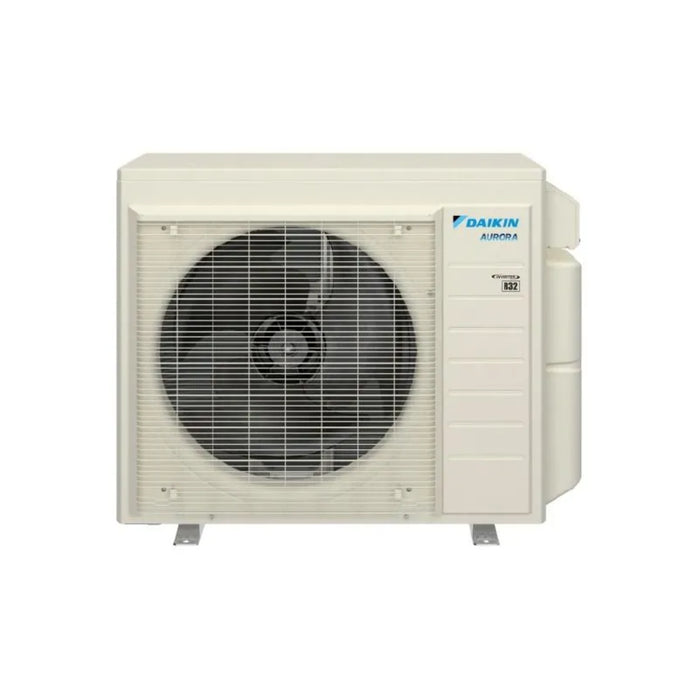

36,000 BTU Daikin MXM Multi-Zone Mini Split Heat Pump Condenser - R32 | 230V | |
---|---|
SKU | 4MXM36AVJU9 |
Weight | 142.000000 |
Manufacturer | Daikin |
Replaces | 4MXS36WMVJU9 |
Cooling BTU | 36,000 |
Decibel Level (dBA) | 60 |
Refrigerant | R32 |
SEER2 | 20 |
Compressor Type | Swing |
Liquid Line | 1/4" (4) |
Suction Line | 3/8" (1), 1/2" (2), 5/8" (1) |
Electrical | 208-230 V | 60 Hz |1 Phase |
BTU/Tonnage | 36,000 BTU/3 Ton |
Min/Max Outdoor Temp for Heating | -13°F to 60°F |
Min/Max Outdoor Temp for Cooling | 14°F to 115°F |
Zone Compatibility | Multi Zone |
Height | 29.5" |
Width | 34.16" |
Depth | 12.58" |
Warranty | Limited 12-Year Parts Warranty |

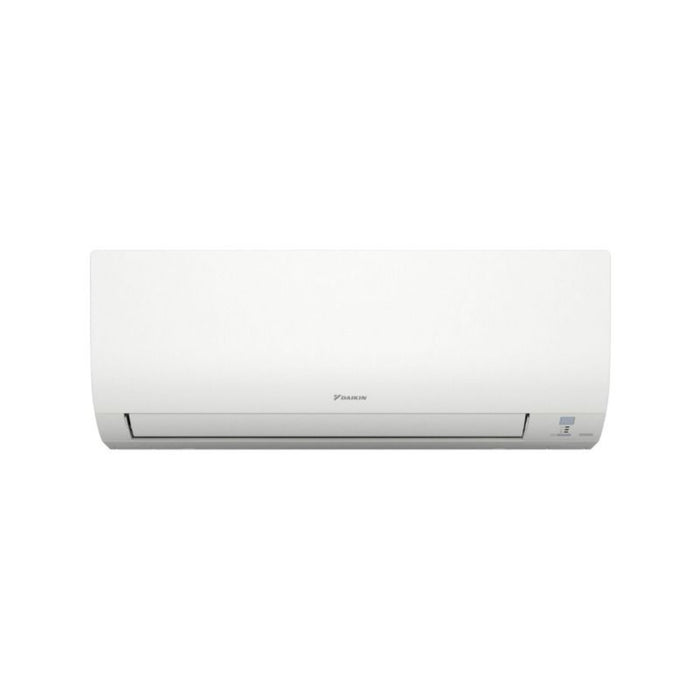

7,000 BTU Daikin Multi-Zone Wall Mount Air Handler - R32 | 230V | |
SKU | CTXV07AVJU9 |
Weight | 24.000000 |
Replaces | CTXS07WVJU9 |
Decibel Level (dBA) | 40 |
Refrigerant | R32 |
Mini Split Type | Wall Mounted |
Zone Compatibility | Multi Zone |
Height | 11.16" |
Width | 30.31" |
Depth | 8.16" |
Warranty | Limited 12-Year Parts Warranty |
9,000 BTU Daikin Aurora Wall Mount Air Handler - R32 | 230V | |
SKU | FTXV09AVJU9 |
Weight | 19.000000 |
Replaces | FTXV09AVJU9 |
HSPF2 | 10.2 |
Decibel Level (dBA) | 43 |
Refrigerant | R32 |
Mini Split Type | Wall Mounted |
Zone Compatibility | Single Zone |
Height | 11.25" |
Width | 30.31" |
Depth | 8.75" |
Warranty | Limited 12-Year Parts Warranty |
Safety Information | PROPOSITION 65 WARNING |
