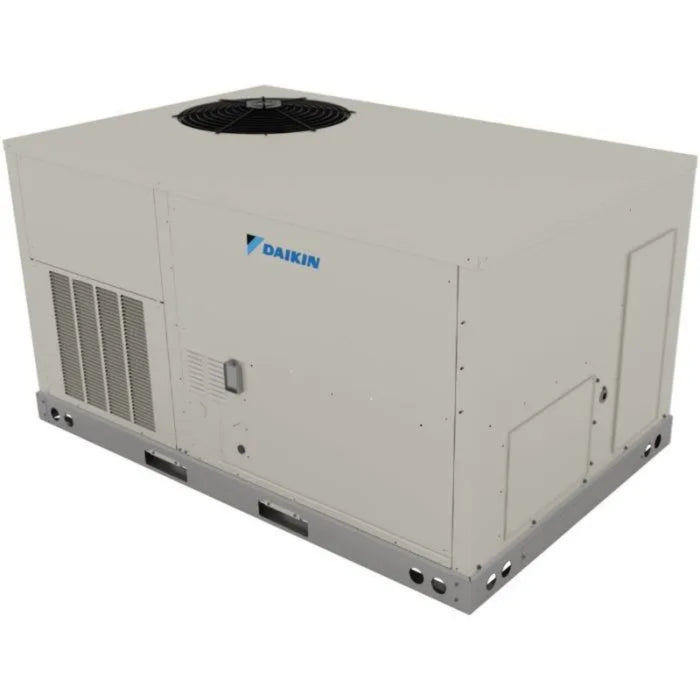

Daikin 5 Ton 140,000 BTU 13.4 SEER2 Gas/Electric Commercial Packaged Unit - 208/230V 3 Phase - R32 | |
---|---|
SKU | DSG0603DH00001S |
Refrigerant Charge | Pre-charged |
Weight (in lbs) | 624.000000 |
Brand/Manufacturer | Daikin |
Replaces | DFG0603DH00001S |
Additional Information | Uses two 20" x 25" x 2" |
Cooling BTU | 59,000 BTU |
Heating BTU | 140,000 |
Drive Type | Direct |
Maximum CFM | 1820 |
Decibel Level (dBA) | 78.3 decibels |
Horsepower | .333 HP |
Refrigerant | R32 |
SEER1 (Efficiency) | 14 |
SEER2 (Efficiency) | 13.4 |
EER | 14.0 |
IEER | 11.5 |
Condenser Stages | Single Stage |
Compressor Type | Scroll |
Electrical | 208 / 230 V. 3 Phase 60 Hz |
Phase | Three Phase |
Max Breaker Size | 40/40 amps |
Min. Breaker Size | 28.9/28.9 amps |
Tonnage | 5 Ton |
Burner Stages | Modulating |
Height | 48 5/16" |
Width | 73 3/8" |
Depth | 48 5/16" |
Warranty | 20 Years Heat Exchanger, 5 Years Parts with Online Registration |
All Daikin products are to be installed in accordance with the manufacturer's installation methods and recommendations by a licensed HVAC-R/electrical/plumbing technician, as required. Failure to do so, may result in voiding the manufacturer's warranty.
