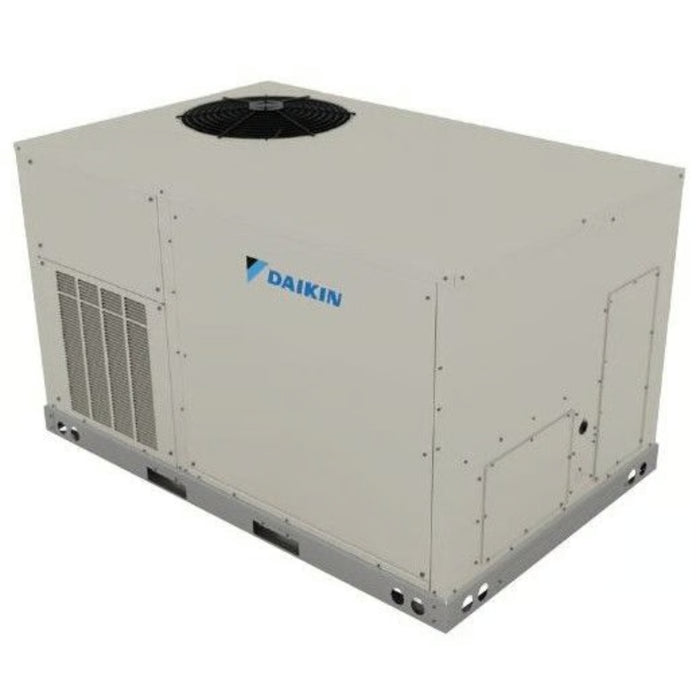

Daikin - 5 Ton/58,000 BTU Commercial Packaged Heat Pump - 13.4 SEER2 - Single Stage - 208/230V - R32
ADD TO CART FOR INSTANT SAVINGS!
ADD TO CART FOR INSTANT SAVINGS!
| Daikin 5 Ton 13.4 SEER2 Commercial Packaged Heat Pump - 208/230V 3 Phase - R32 | |
|---|---|
| SKU | DSH0603D000001S |
| Refrigerant Charge | Pre-charged |
| Weight (in lbs) | 666.000000 |
| AHRI Certificate Number | 210643295 |
| Brand/Manufacturer | Daikin |
| Replaces | DFH0603D000001S |
| Additional Information | Uses four 14" x 20" x 2" filters |
| HSPF2 | 6.70 |
| Cooling BTU | 58,000 BTU |
| Heating BTU | 55,000 BTU |
| Drive Type | Direct |
| Maximum CFM | 1840 |
| Decibel Level (dBA) | 79 Decibels |
| Motor RPM | 1122 |
| Horsepower | .33 HP |
| Refrigerant | R32 |
| SEER2 (Efficiency) | 13.4 |
| Condenser Stages | Single Stage |
| Compressor Type | Scroll |
| Electrical | 208/230v 3 Phase 60 Hz |
| Phase | Three Phase |
| Max Breaker Size | 40/40 Amps |
| Min. Breaker Size | 28.9/28.9 Amps |
| Tonnage | 5 Ton |
| Height | 39 7/8" |
| Width | 74" |
| Depth | 48 5/16" |
| Warranty | 20 Years Heat Exchanger and 5 Years Parts with Online Registration |
All Daikin products are to be installed in accordance with the manufacturer's installation methods and recommendations by a licensed HVAC-R/electrical/plumbing technician, as required. Failure to do so, may result in voiding the manufacturer's warranty.
