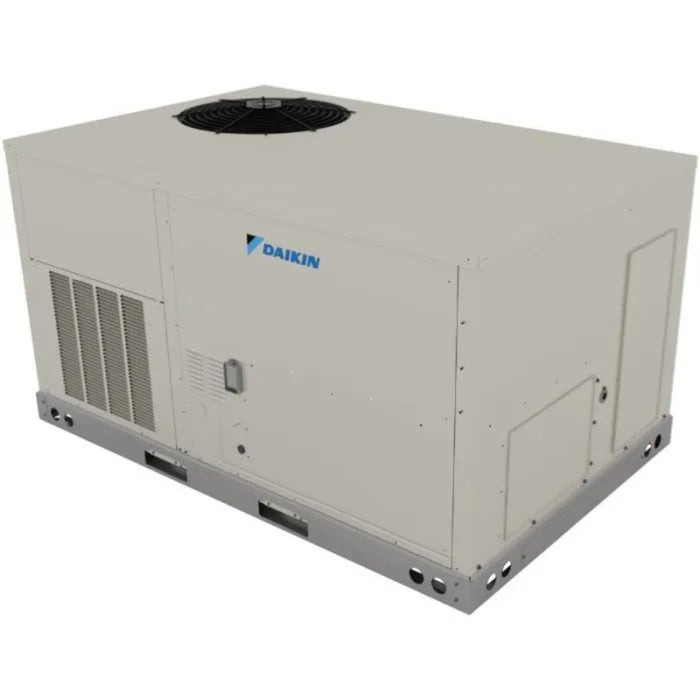

Daikin - 6 Ton/140,000 BTU Gas/Electric Commercial Packaged Unit - 13.4 SEER2 - Single Stage - 208/230V - R32
ADD TO CART FOR INSTANT SAVINGS!
ADD TO CART FOR INSTANT SAVINGS!
| Daikin 6 Ton 140,000 BTU 13.4 SEER2 Gas/Electric Commercial Packaged Unit - 208/230V 3 Phase - R32 | |
|---|---|
| SKU | DSG0723DH00001S |
| Refrigerant Charge | Pre-Charged |
| Weight (in lbs) | 626.000000 |
| AHRI Certificate Number | 208122212 |
| Brand/Manufacturer | Daikin |
| Replaces | DSG0723DH00001S |
| Cooling BTU | 69,000 BTU |
| Heating BTU | 140,000 BTU |
| Drive Type | Direct |
| Static Pressure | Standard |
| Maximum CFM | 2100 |
| Decibel Level (dBA) | 82 decibels |
| Motor RPM | 1500 |
| Horsepower | 1.2 |
| Refrigerant | R32 |
| Efficiency | 80% |
| SEER1 (Efficiency) | 14 |
| SEER2 (Efficiency) | 13.4 |
| EER | 11.2 |
| IEER | 15.5 |
| Condenser Stages | Two Stage |
| Compressor Type | Scroll |
| Electrical | 208/230 V. 3 Phase 60 Hz |
| Phase | Three Phase |
| Max Breaker Size | 45 amps |
| Min. Breaker Size | 29 amps |
| Tonnage | 6 Ton |
| Height | 43 1/2" |
| Width | 48 5/16" |
| Depth | 73 3/8" |
| Warranty | 5 Years with Online Registration |
All Daikin products are to be installed in accordance with the manufacturer's installation methods and recommendations by a licensed HVAC-R/electrical/plumbing technician, as required. Failure to do so, may result in voiding the manufacturer's warranty.
