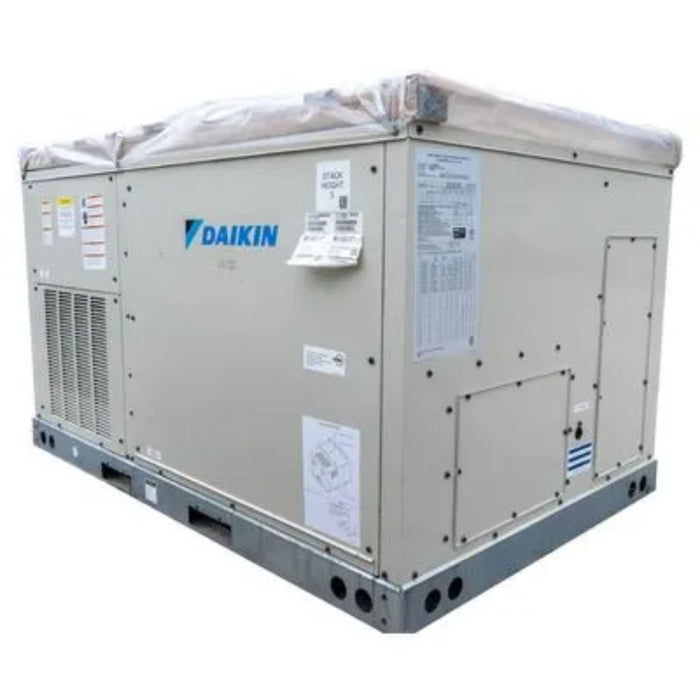

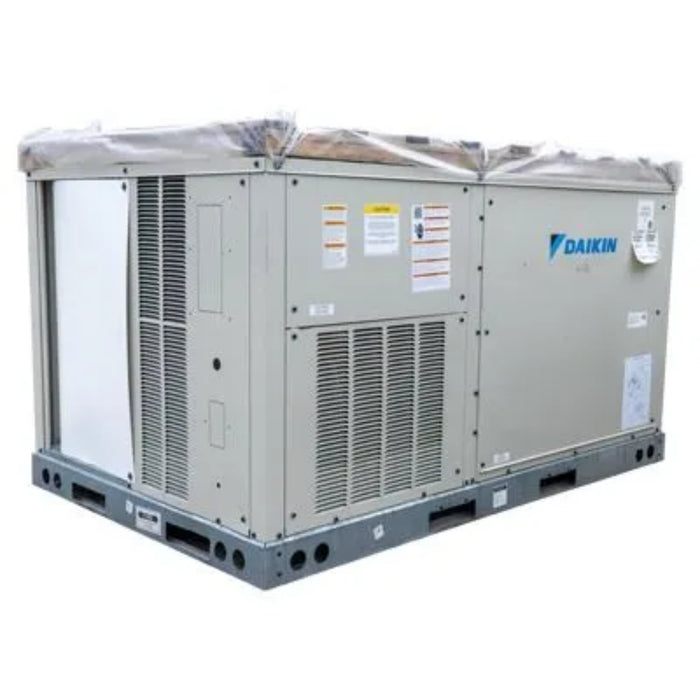

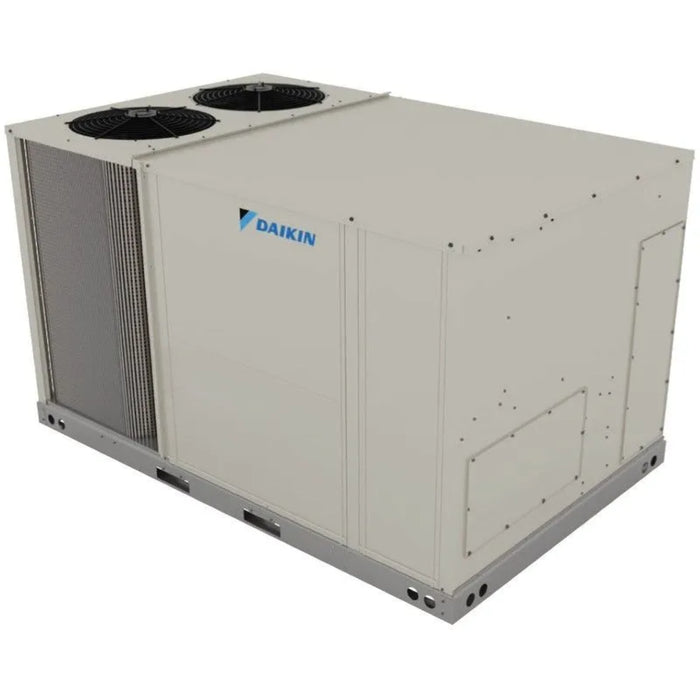

Daikin 7.5 Ton 225,000 BTU 13.4 SEER2 Gas/Electric Light Commercial Packaged Unit - 208/230V 3 Phase - R32 | |
---|---|
SKU | DSG0903DH00001S |
Refrigerant Charge | Pre-charged |
Weight (in lbs) | 1140.000000 |
Brand/Manufacturer | Daikin |
Replaces | DFG0903DH00001S |
Additional Information | Uses two 20" x 20" x 2" and two 20" x 25" x 2" filters |
Cooling BTU | 86,000 BTU |
Heating BTU | 225,000 BTU |
Drive Type | Direct |
Maximum CFM | 3020 |
Decibel Level (dBA) | 82.6 decibels |
Motor RPM | 300-1600 |
Horsepower | .333 HP |
Refrigerant | R32 |
SEER2 (Efficiency) | 13.4 |
EER | 11.2 |
IEER | 14.8 |
Condenser Stages | Single Stage |
Compressor Type | Scroll |
Electrical | 208 / 230 V. 3 Phase 60 Hz |
Phase | Three Phase |
Max Breaker Size | 50/50 Amps |
Min. Breaker Size | 41.6/41.6 amps |
Tonnage | 7.5 Ton |
Burner Stages | Modulating |
Height | 54 5/8" |
Width | 93 3/4" |
Depth | 60 3/8" |
Warranty | 20 Years Heat Exchanger, 5 Years Parts with Online Registration |
All Daikin products are to be installed in accordance with the manufacturer's installation methods and recommendations by a licensed HVAC-R/electrical/plumbing technician, as required. Failure to do so, may result in voiding the manufacturer's warranty.
