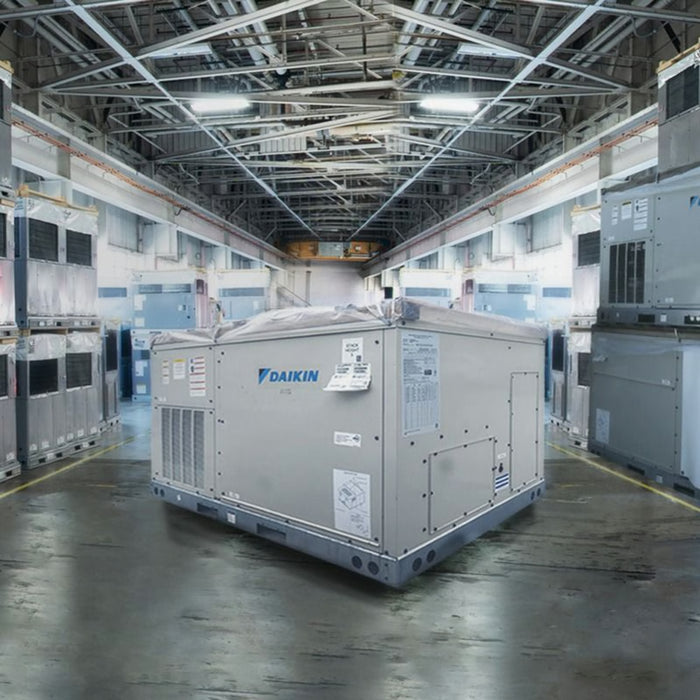

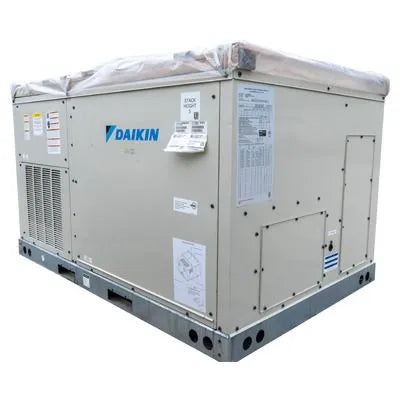

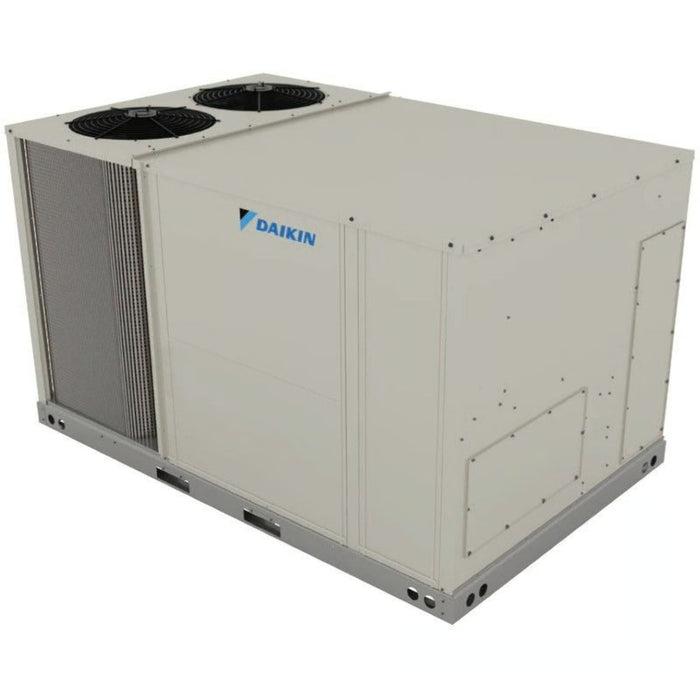

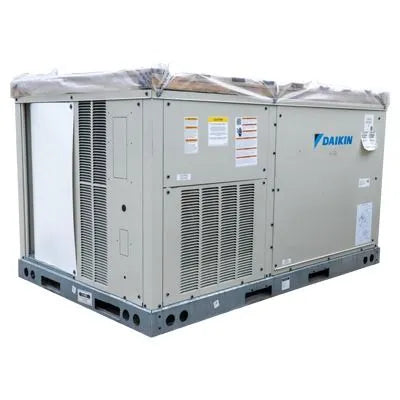

Daikin - 8.5 Ton/100,000 BTU Light Commercial Packaged Heat Pump - 11 EER - Single Stage - 208/230V - R32
ADD TO CART FOR INSTANT SAVINGS!
ADD TO CART FOR INSTANT SAVINGS!
The DSH light commercial heat pump packaged unit offers energy-efficient heating and cooling performance in one self-contained unit. This 14 SEER unit is suitable for ground-level or rooftop installations and horizontal or downflow applications. The heavy-gauge, galvanized steel cabinet with UV-resistant powder-paint finish withstands all weather conditions and time.
| Daikin 8.5 Ton 11 EER Light Commercial Packaged Heat Pump - 208/230V 3 Phase - R32 | |
|---|---|
| SKU | DSH1023D000001S |
| Refrigerant Charge | Pre-charged |
| Weight (in lbs) | 1214.000000 |
| Brand/Manufacturer | Daikin |
| Replaces | DFH1023D000001S |
| Additional Information | Uses two 20" x 25" x 2" and two 25" x 25" x 2" filters |
| Cooling BTU | 100,000 BTU |
| Heating BTU | 100,000 BTU |
| Drive Type | Direct |
| Maximum CFM | 3000 |
| Decibel Level (dBA) | 83.7 decibels |
| Motor RPM | 300-1600 |
| Horsepower | .333 HP |
| Refrigerant | R32 |
| EER | 11 |
| IEER | 14.1 |
| Condenser Stages | Single Stage |
| Compressor Type | Scroll |
| Electrical | 208 / 230 V. 3 Phase 60 Hz |
| Phase | Three Phase |
| Max Breaker Size | 60/60 amps |
| Min. Breaker Size | 47.8/47.8 amps |
| Tonnage | 8.5 Ton |
| Height | 54 5/8" |
| Width | 93 3/4" |
| Depth | 60 3/8" |
| Warranty | 20 Years Heat Exchanger, 5 Years Parts with Online Registration |
All Daikin products are to be installed in accordance with the manufacturer's installation methods and recommendations by a licensed HVAC-R/electrical/plumbing technician, as required. Failure to do so, may result in voiding the manufacturer's warranty.
