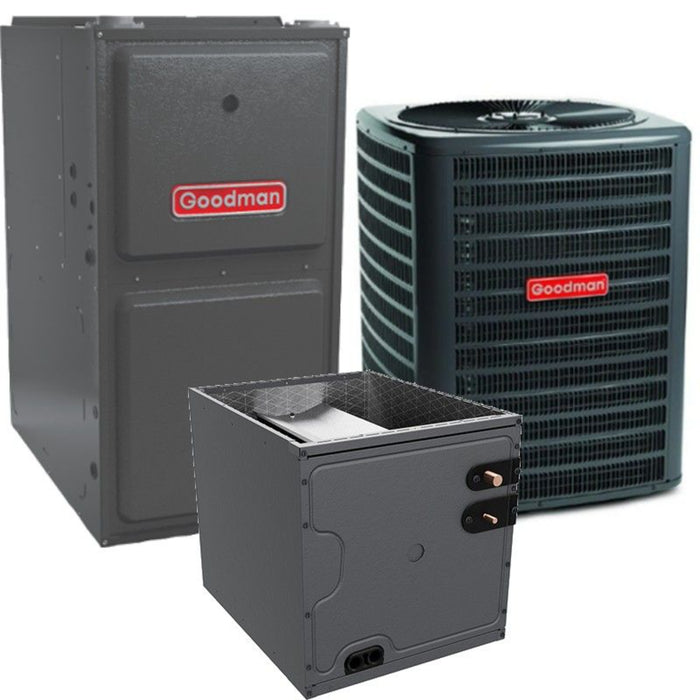

Goodman - 3 Ton/100,000 BTU 96% AFUE Gas Furnace and Air Conditioner System - Upflow - 16 SEER2 - R32

by Goodman
SKU GLXS5BA3610 / CAPTA4230C3 / GR9T961005CN
PRICE MATCH GUARANTEE*: Found A Better Price? We'll Beat It! 877-606-9202 *Excludes ACIQ and MRCOOL Products.
EASY RETURNS: 30 Days Return Policy*
NO SALES TAX IN 48 STATES!
FREE SHIPPING: Free Shipping On Most Products!
TRADE & VOLUME DISCOUNTS: Call / Email or Chat for Details!

ADD TO CART FOR INSTANT SAVINGS!

$6,176.61
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

As a high-efficiency system, the GR9T961005CN Goodman gas furnace features many money saving features. The two-stage, 9-speed furnace uses a superior heat exchanger for better heat transfers to your home. Considered one of the best efficiencies on the market, the GR9T961005CN is a good way to go if you want to lower your gas bill.

Features

  • All-Aluminum Coil: Goodman's evaporator coils maximize surface area and optimize heat transfer for efficient comfort by using a reliable all-aluminum design complete with sine fins and grooved tubes.
  • Internal Thermostatic Expansion Valve: Goodman's CAPTA units have a factory-installed internal thermostatic expansion valve, which streamlines installation and maintains ideal refrigerant flow for your system.
  • Cabinet Durability: Providing superior longevity and efficiency, CAPTA units have a galvanized, embossed, and insulated cabinet that protects the coil and prevents air leakage.
  • Condensate Management: Keeping your system sage and operational, the CAPTA units feature a foil-faced insulation to inhibit the formation of condensate and a rust-resistant, DecaBDE-free thermoplastic drain pan secondary drain connections. The drain pan is UV-resistant.
  • R32 Compatibility: Complies with Clean Air Act New Refrigerant Requirements.
  • 10-Year Limited Warranty

Specifications

Goodman 96% 100,000 BTU Two Stage Gas Furnace - 21" Width - Upflow / Horizontal
Feature Spec
SKU GR9T961005CN
Maximum CFM 2000
Furnace Efficiency / AFUE 96%
AHRI Certificate Number 215225030
Depth 28.75"
Width 21"
Height 34.5"
Weight (in lbs) 140.000000
Warranty Lifetime Heat Exchanger, 10 Years Unit Replacement, and 10 Years Parts with Online Registration
Fuel Type Propane, Natural Gas
Electrical 115 V. 1 Phase 60 Hz
Energy Star Yes
Heating BTU 100,000
Blower Motor 9 Speed - ECM
Brand/Manufacturer Goodman
Burner Stages Two
Airflow Direction Upflow/Horizontal
Configuration Upflow/Horizontal
Exhaust Flue Requirement Plastic / PVC
Max Breaker Size 25 Amps
Min. Breaker Size 14.4 Amps
Product Features New Refrigerant Compliant
Goodman 3 Ton 15.2 SEER2 High Efficiency Central Air Conditioner Condenser - R32 Single Stage
Feature Spec
SKU GLXS5BA3610
Depth 35 1/2"
SEER2 (Efficiency) 15.2
Width 35 1/2"
Height 39 1/2"
Weight (in lbs) 224.000000
Decibel Level (dBA) 75
Replaces GSX160361
Warranty 10 Years Parts with Online Registration
Connection Sweat
Electrical 208/230v 1 Phase 60Hz
Horsepower 0.167 HP
Cooling BTU 36,000
Liquid Line 3/8"
Refrigerant R32
Brand/Manufacturer Goodman
Suction Line 7/8"
Compressor Type Scroll
Condenser Stages Single Stage
Max Breaker Size 30 Amps
Min. Breaker Size 18.6 Amps
Tonnage 3 Ton
Product Features Basic Efficiency, New Refrigerant Compliant
Safety Information PROPOSITION 65 WARNING

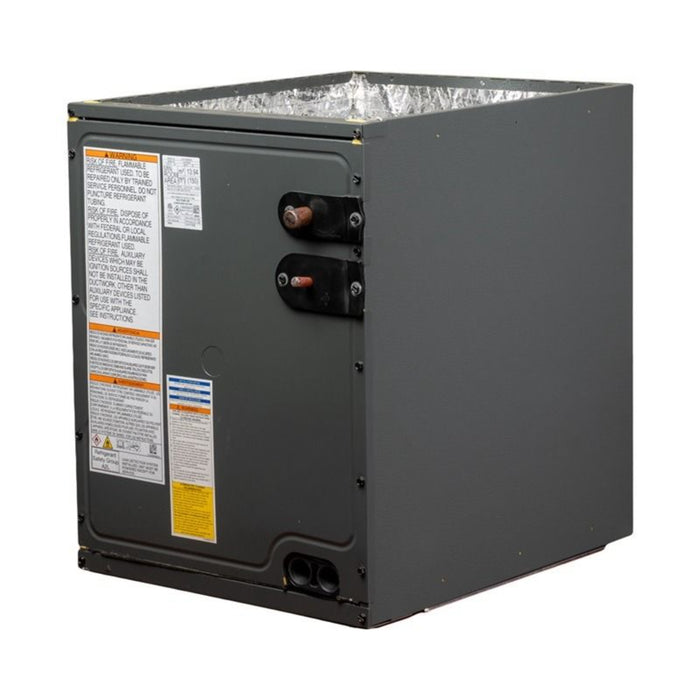

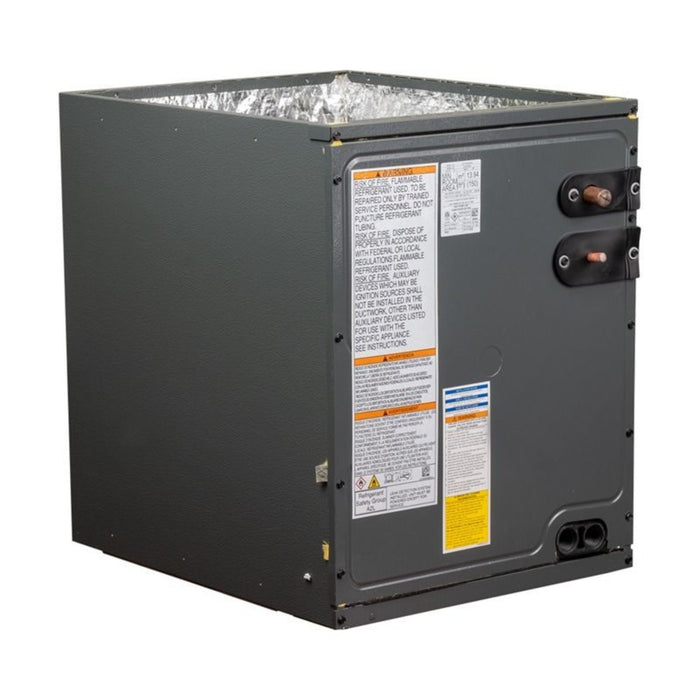

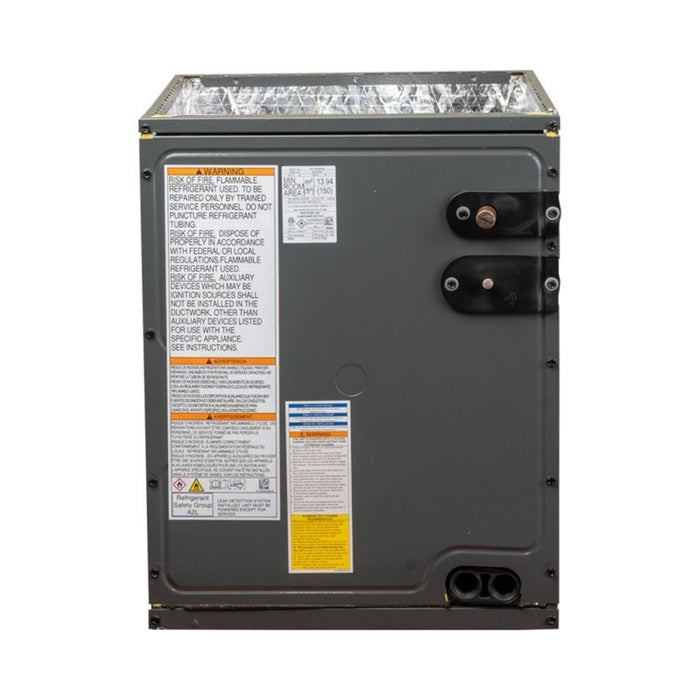

3.5 Ton 21" Width Goodman Upflow/Downflow Cased Evaporator Coil - TXV - R32
Feature Spec
SKU CAPTA4230C3
Depth 21"
Style A-Coil
Width 21"
Height 30"
Weight (in lbs) 66.000000
Warranty 10 Years Parts with Online Registration
Liquid Line 3/8"
Refrigerant R32
Brand/Manufacturer Goodman
Suction Line 7/8"
Certification ETL Listed, AHRI Certified
Configuration Upflow / Downflow
Tonnage 3.5 Ton
Product Features New Refrigerant Compliant
