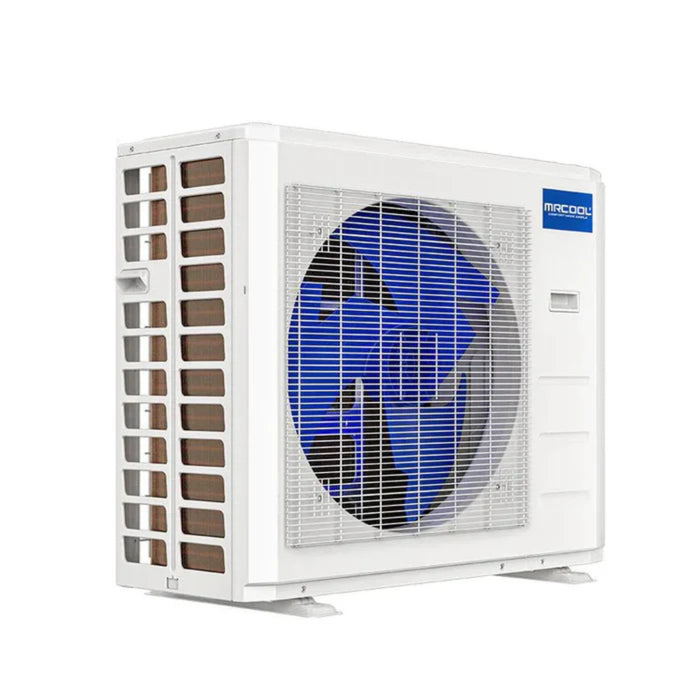

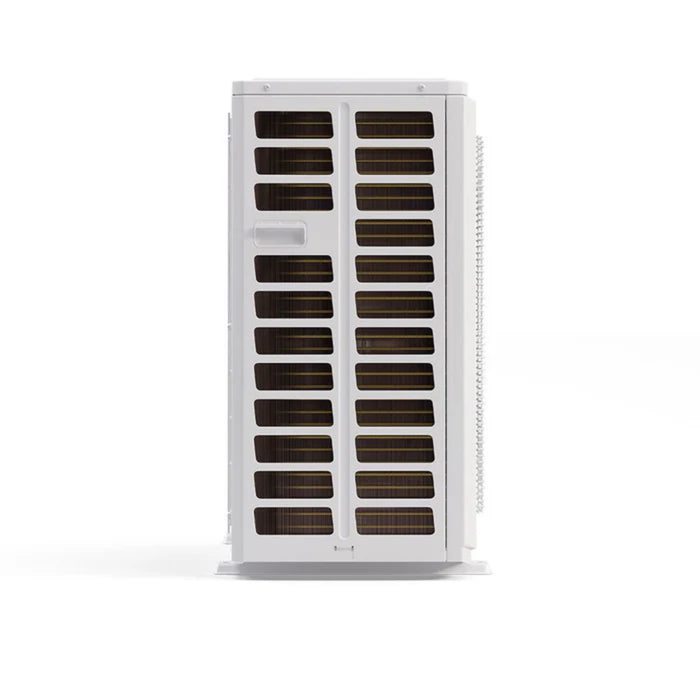

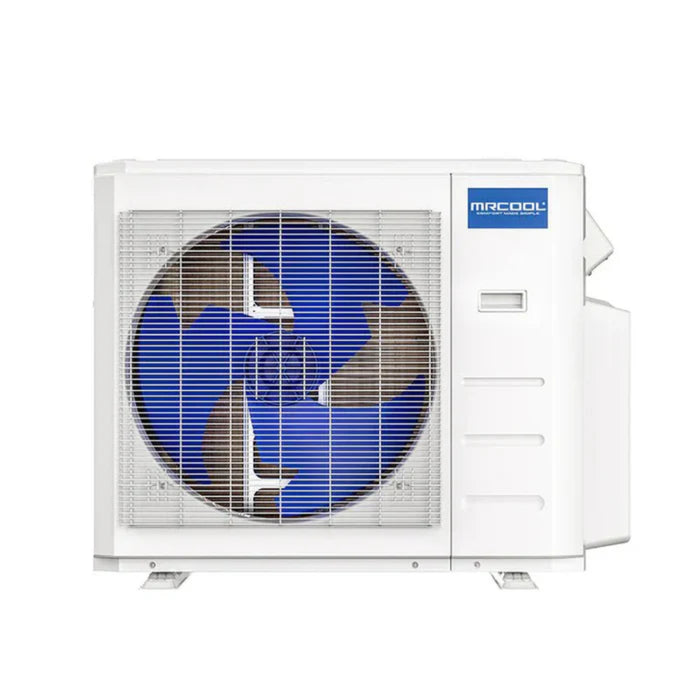

MRCOOL - DIY 4th Generation- 27,000 BTU 4-Zone Ductless Mini-Split Air Conditioner and Heat Pump - SEER 23 (6K + 6K + 6K + 9K) - 230V

by MRCOOL
SKU DIYM42706060609
PRICE MATCH GUARANTEE*: Found A Better Price? We'll Beat It! 877-606-9202 *Excludes ACIQ and MRCOOL Products.
EASY RETURNS: 30 Days Return Policy*
NO SALES TAX IN 48 STATES!
FREE SHIPPING: Free Shipping On Most Products!
TRADE & VOLUME DISCOUNTS: Call / Email or Chat for Details!

ADD TO CART FOR INSTANT SAVINGS!

$5,550.00 $4,003.00
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

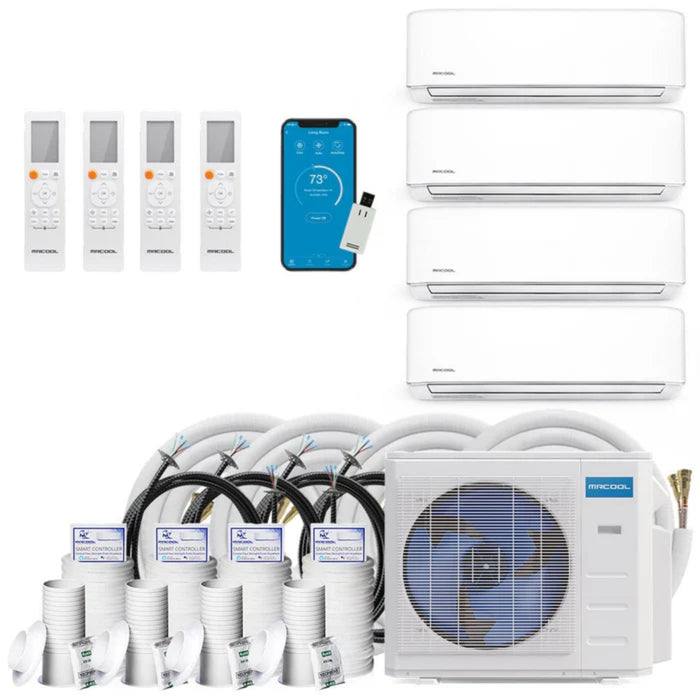

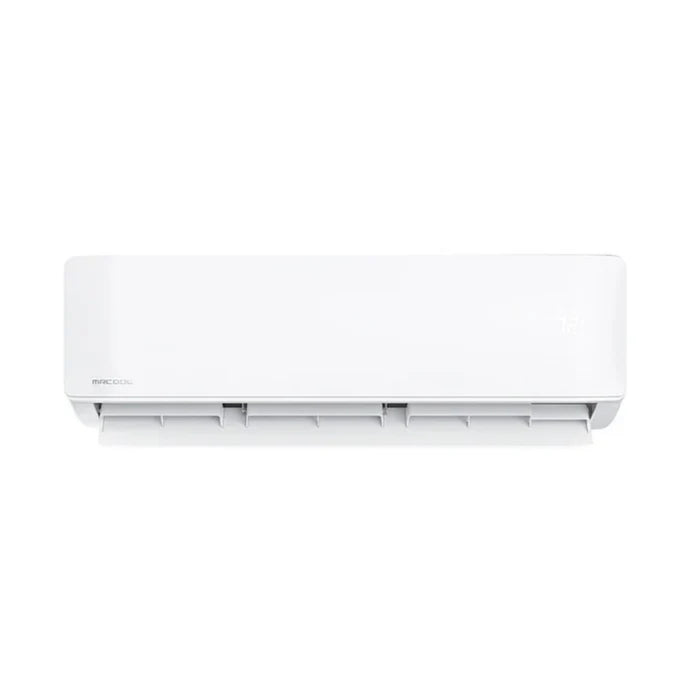

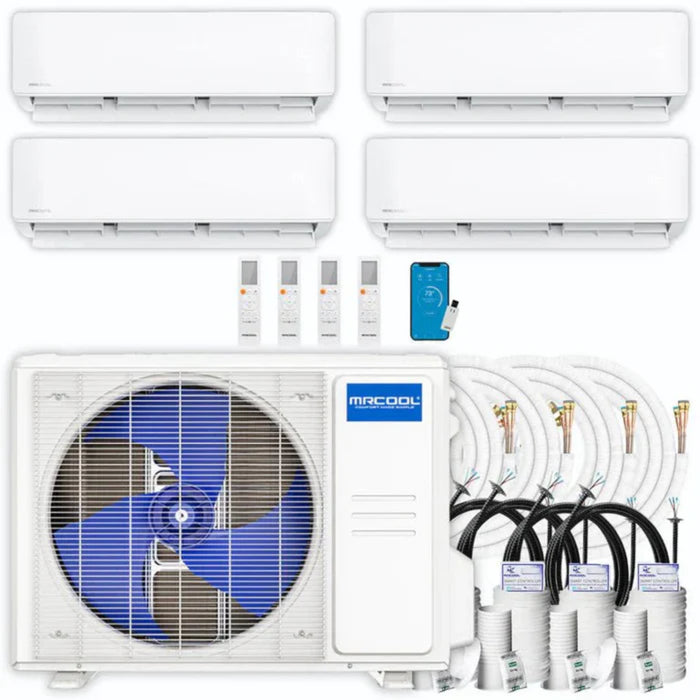

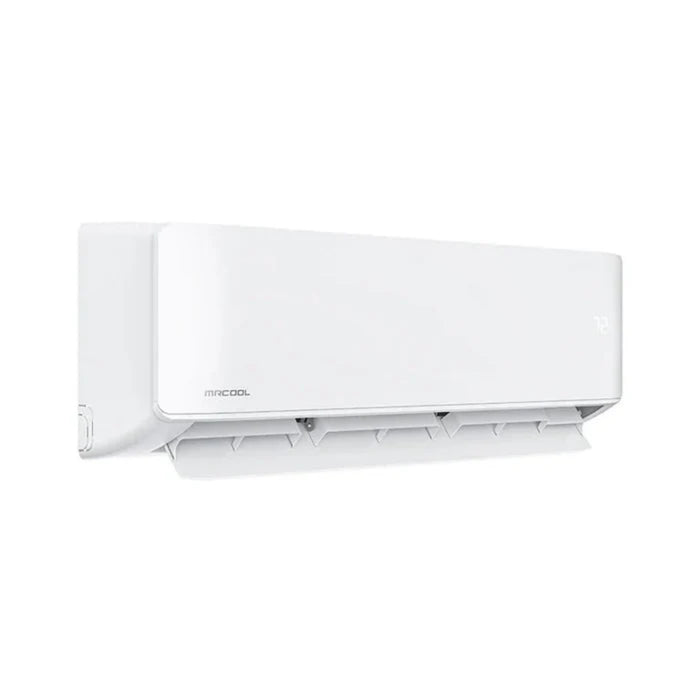

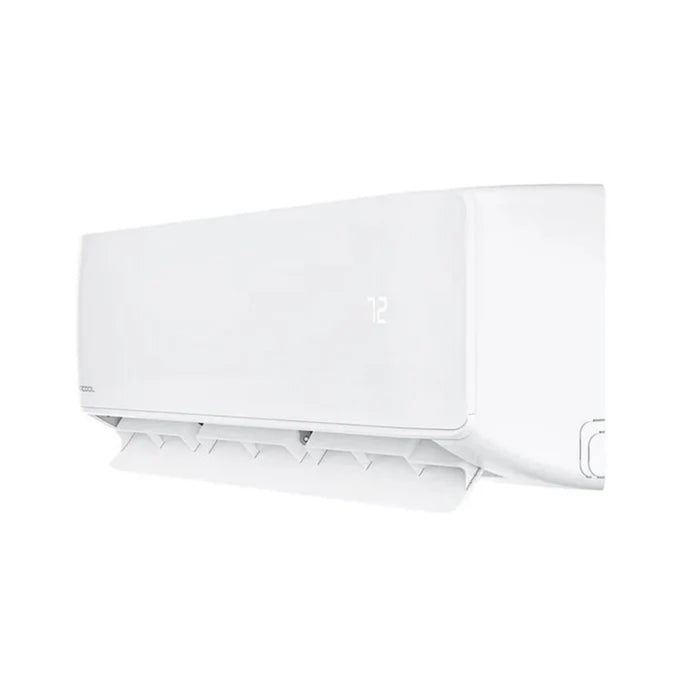

The MRCOOL DIY 5th Gen Multi-Zone 27K BTU Four Zone Ductless Mini Split (6K + 6K + 6K + 9K) delivers efficient, customizable heating and cooling for four individual rooms with an impressive 23 SEER2 rating. Designed for easy DIY installation, this system features MRCOOL’s patented pre-charged Quick Connect® line sets filled with eco-friendly R-454B refrigerant—no special tools, vacuuming, or professional help required. Each wall-mounted air handler offers quiet, directional airflow, ensuring even comfort across your home. With smart controls through the MRCOOL app, Amazon Alexa, or Google Home, you can manage temperatures wirelessly for each zone. Built to cool in summer, heat in winter, and dehumidify year-round, this system delivers reliable performance and energy efficiency. Backed by a 7-year compressor warranty (with optional lifetime coverage) and a 5-year parts warranty, the MRCOOL DIY 27K BTU 4-Zone system provides advanced technology, cost-saving installation, and dependable comfort for years to come.

Features

  • Easy DIY® Installation

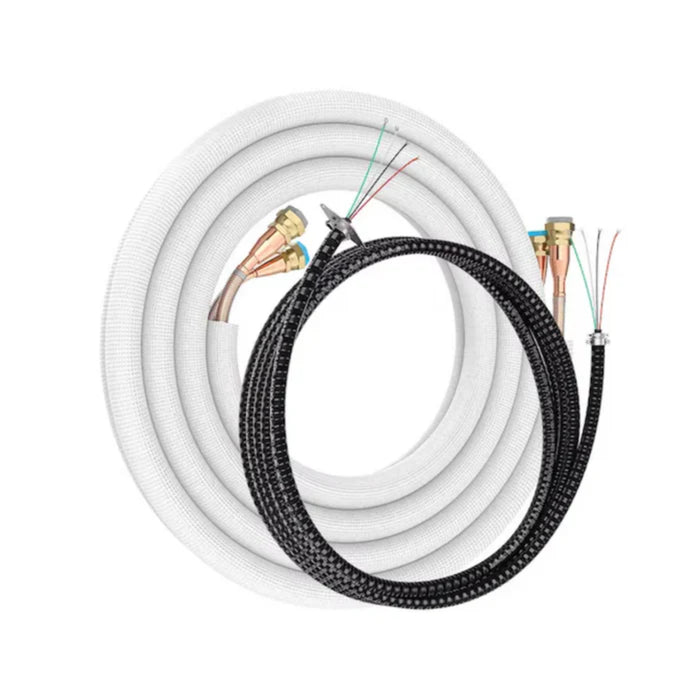

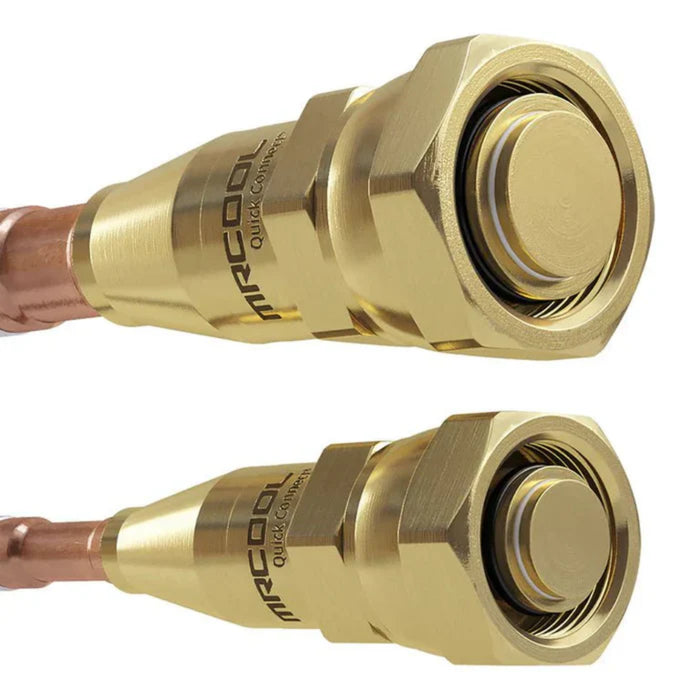

  • Pre-charged DIY® Quick Connect Line Set

  • Simple to Use

  • Multi-room Comfort

  • Energy Efficient DC Inverter

  • 100% Sealed System

  • Gold Fin® Condenser

  • Eco Safe R-454B Refrigerant

  • Smartphone App Controls

  • Lifetime Technical Support

  • Low Ambient Cooling

Specifications

BRAND NAME MRCOOL
SERIES
DIY 5th gen Multi-Zone Mini-splits
MODEL
DIY-MULTI4-27HP230D-O
GTIN 840255587457
UPC 840255587457
SEER2 23
EER2 12
HSPF2-4 9.5
HSPF2-5 7
TONNAGE 2.25
COOLING CAPACITY (BTU) 26000
HEATING CAPACITY (BTU) 26000
VOLTAGE (V) 208/230
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 25
MIN CIRCUIT AMPACITY (A) 23
COLOR White
ZONE CAPACITY 4
REFRIGERANT TYPE R-454B
REFRIGERANT VOLUME (OZ) 84.66
DECIBEL RATING (DBA) 61
INVERTER DC
LINE SET LENGTH 25
MAX LINESET LENGTH (FT) 221.4
LIQUID LINE SIZE 1/4
SUCTION LINE SIZE 3/8
COMPRESSOR MOTOR TYPE Rotary
AUXILIARY HEATER INCLUDED No
AUXILIARY HEATER AVAILABLE No
FAN ONLY OPTION Yes
QUIET MODE Yes
AUTO COOL Yes
WIFI COMPATIBILITY Yes
APP COMPATIBILITY Yes
WORKS WITH IOS Yes
WORKS WITH ANDROID Yes
UL LISTED Yes
ETL LISTED Yes
ENERGY STAR CERTIFIED Yes
AHRI CERTIFIED Yes
REGISTERED WARRANTY
Extended Limited Lifetime*
BASE PARTS WARRANTY 5
BASE COMPRESSOR WARRANTY 7
HAS BATTERIES Yes
CONTAINS ELECTRONICS Yes
CONTAINS CHEMICALS Yes
CONTAINS AEROSOL Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
NET DEPTH (IN) 16.14
NET HEIGHT (IN) 31.89
NET WIDTH (IN) 37.24
NET WEIGHT (LBS) 140.21
GROSS DEPTH (IN) 19.69
GROSS HEIGHT (IN) 34.84
GROSS WIDTH (IN) 42.91
GROSS WEIGHT (LBS) 151.02
All MRCOOL non DIY products are to be installed in accordance with the manufacturer's installation methods and recommendations by a licensed HVAC-R/electrical/plumbing technician, as required. Failure to do so, may result in voiding the manufacturer's warranty.”
