MRCOOL - DIY 5th Gen - 18,000 BTU 2-Zone Ductless Mini Split AC and Heat Pump with Ceiling Cassettes - 24 SEER (6K + 9K) - 230V

by MRCOOL
SKU DIYM2180609-16-16-CC
PRICE MATCH GUARANTEE*: Found A Better Price? We'll Beat It! 877-606-9202 *Excludes ACIQ and MRCOOL Products.
EASY RETURNS: 30 Days Return Policy*
NO SALES TAX IN 48 STATES!
FREE SHIPPING: Free Shipping On Most Products!
TRADE & VOLUME DISCOUNTS: Call / Email or Chat for Details!

ADD TO CART FOR INSTANT SAVINGS!

$4,731.00
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

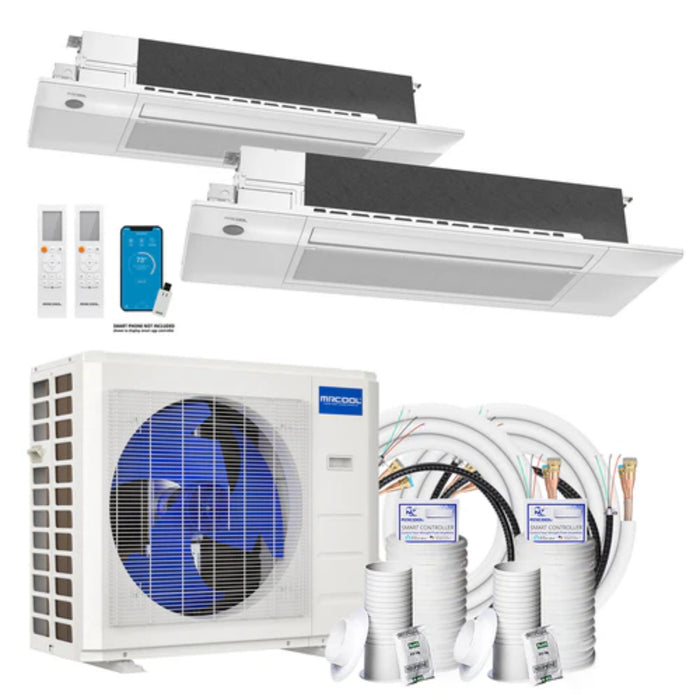

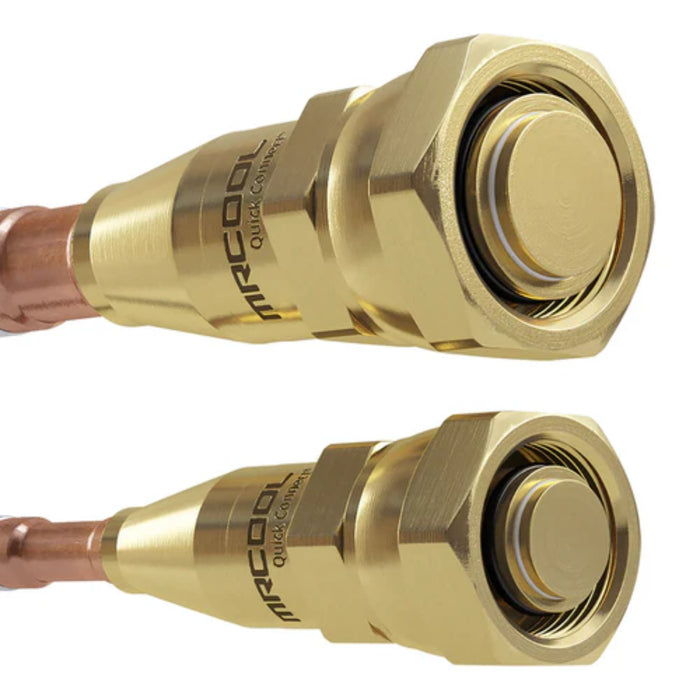

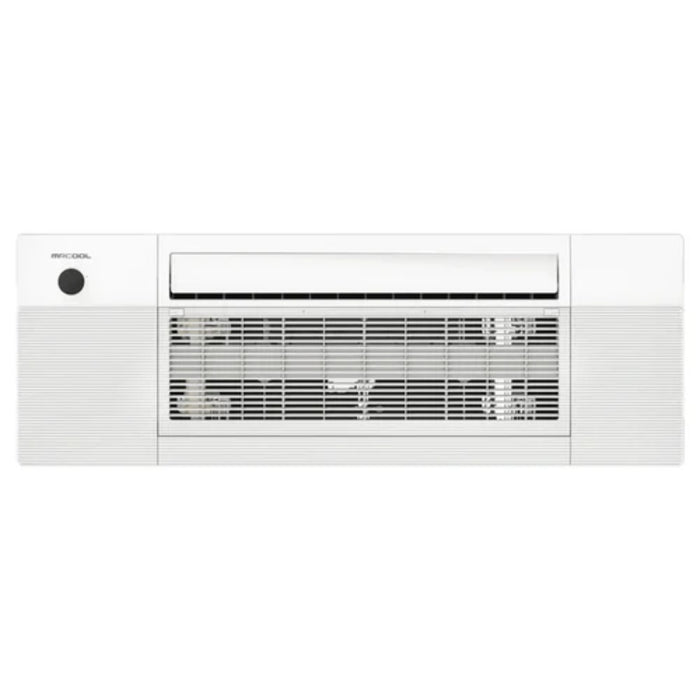

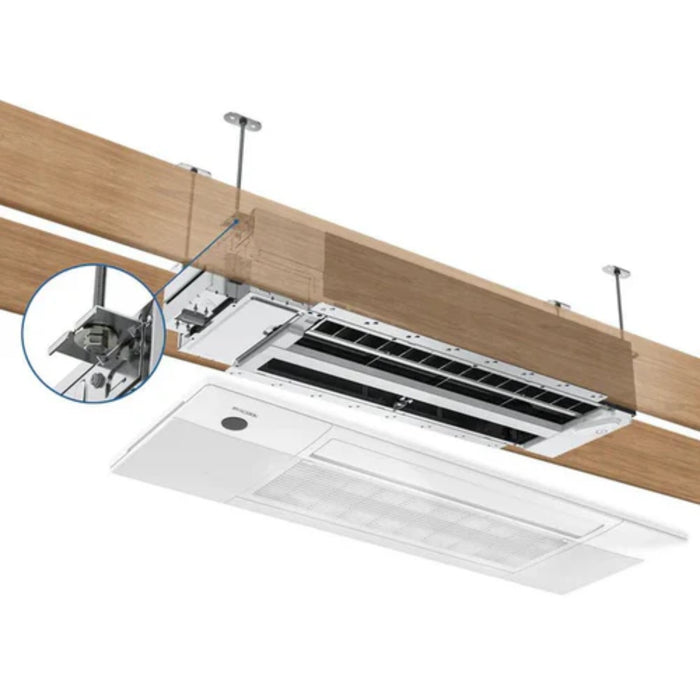

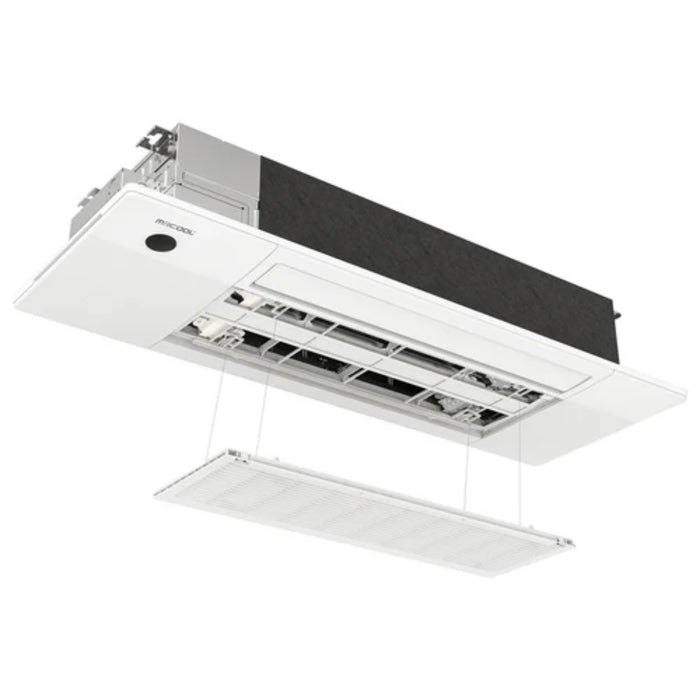

MRCOOL DIY Multi Zone 5th Gen 18K BTU Dual Zone Mini Split with Ceiling Cassettes 6K + 9K is built to heat and cool two rooms with quiet, efficient comfort. This ductless mini split heat pump delivers 18,000 BTU total capacity with a high 24 SEER efficiency rating. A 6,000 BTU cassette supports smaller spaces, while a 9,000 BTU cassette handles medium rooms easily. The DIY system installs without special tools, HVAC training, or vacuum equipment. This helps homeowners avoid expensive professional installation costs. The heat pump design provides year-round comfort by reversing operation during colder seasons. Ceiling cassette air handlers sit flush in the ceiling, keeping walls open and rooms uncluttered. The low-profile design fits standard 16-inch joists, including engineered I-joists. No ductwork is required, which reduces energy loss and improves airflow efficiency. Quick Connect line sets and No-Vac couplers make installation faster and cleaner. Quiet operation improves comfort in bedrooms, offices, and living areas. Multiple operating modes support cooling, heating, fan, and dehumidifying needs. The Elevation feature lowers the filter panel for easy cleaning access. This system includes a 7-year compressor warranty, optional lifetime compressor coverage, and a 5-year parts warranty for long-term peace of mind.

Features

  • Easy DIY® Installation
  • "Pre-charged DIY®

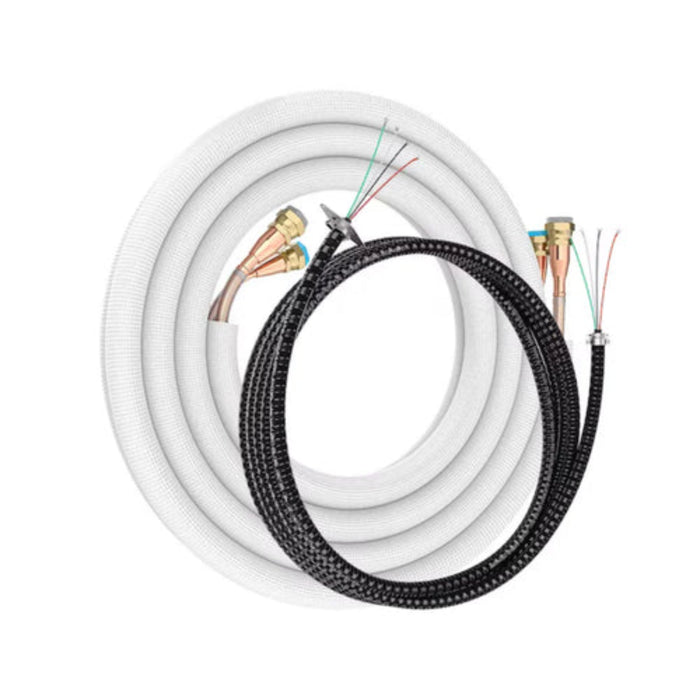

  • Quick Connect Line Set"
  • Simple to Use
  • Multi-room Comfort
  • Energy Efficient DC Inverter
  • 100% Sealed System

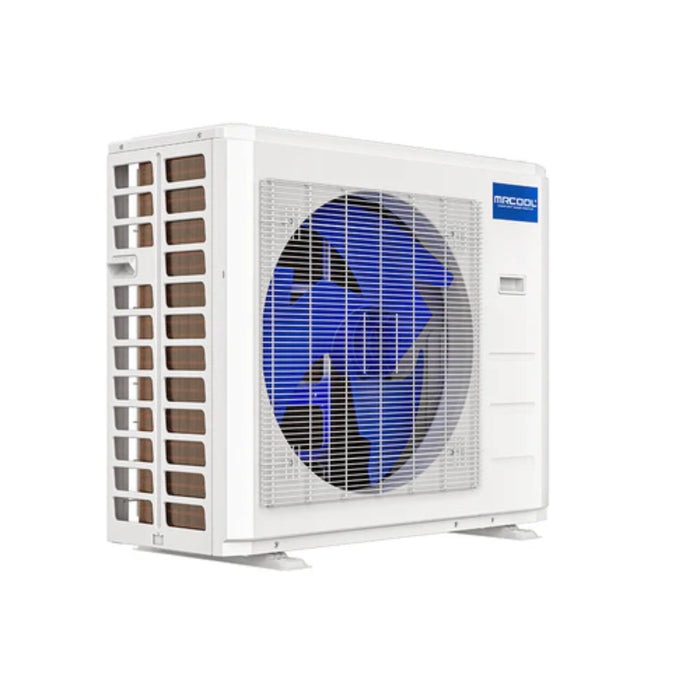

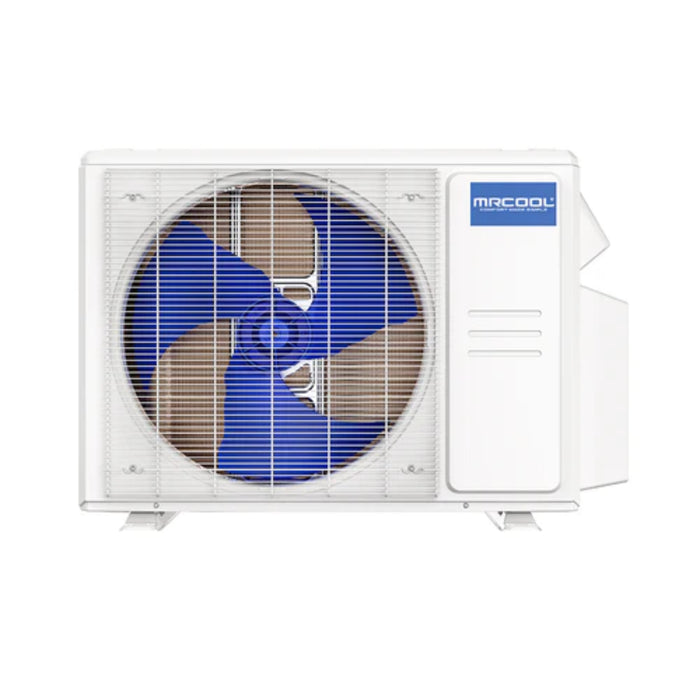

  • Gold Fin® Condenser
  • Eco Safe R-454B Refrigerant

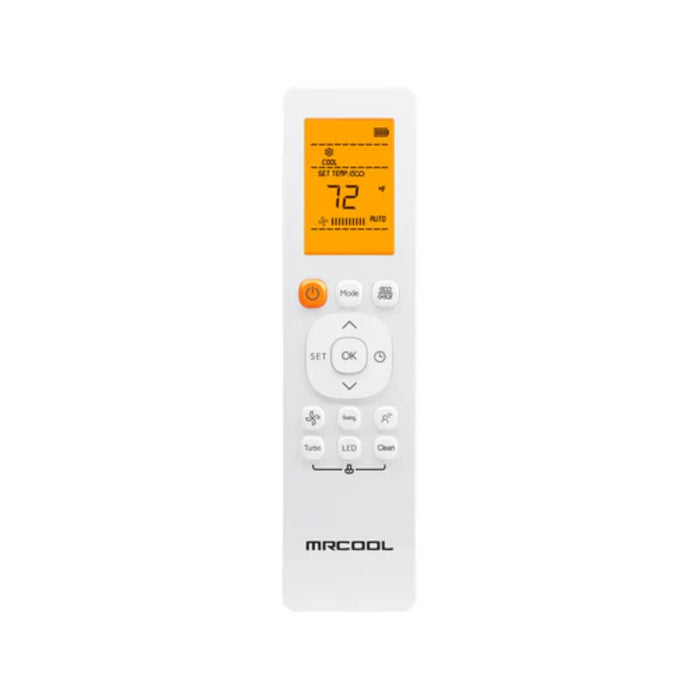

  • Smartphone App Controls
  • Lifetime Technical Support
  • Low Ambient Cooling

Specifications

BRAND NAME MRCOOL
SERIES
DIY 5th gen Multi-Zone Mini-splits
MODEL
DIY-MULTI3-18HP230D-O
GTIN 840255587617
UPC 840255587617
SEER2 23.9
EER2 13
HSPF2-4 10
HSPF2-5 7.8
TONNAGE 1.5
COOLING CAPACITY (BTU) 18000
HEATING CAPACITY (BTU) 18000
VOLTAGE (V) 208/230
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 20
MIN CIRCUIT AMPACITY (A) 16
COLOR White
ZONE CAPACITY 3
REFRIGERANT TYPE R-454B
REFRIGERANT VOLUME (OZ) 61.73
DECIBEL RATING (DBA) 60
INVERTER DC
LINE SET LENGTH 25
MAX LINESET LENGTH (FT) 172.2
LIQUID LINE SIZE 1/4
SUCTION LINE SIZE 3/8
COMPRESSOR MOTOR TYPE Rotary
AUXILIARY HEATER INCLUDED No
AUXILIARY HEATER AVAILABLE No
FAN ONLY OPTION Yes
QUIET MODE Yes
AUTO COOL Yes
WIFI COMPATIBILITY Yes
APP COMPATIBILITY Yes
WORKS WITH IOS Yes
WORKS WITH ANDROID Yes
UL LISTED Yes
ETL LISTED Yes
ENERGY STAR CERTIFIED Yes
AHRI CERTIFIED Yes
REGISTERED WARRANTY
Extended Limited Lifetime*
BASE PARTS WARRANTY 5
BASE COMPRESSOR WARRANTY 7
HAS BATTERIES Yes
CONTAINS ELECTRONICS Yes
CONTAINS CHEMICALS Yes
CONTAINS AEROSOL Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
NET DEPTH (IN) 13.46
NET HEIGHT (IN) 26.5
NET WIDTH (IN) 35.04
NET WEIGHT (LBS) 101.63
GROSS DEPTH (IN) 17.24
GROSS HEIGHT (IN) 29.53
GROSS WIDTH (IN) 40.55
GROSS WEIGHT (LBS) 109.57

Owner's Manual

All MRCOOL non DIY products are to be installed in accordance with the manufacturer's installation methods and recommendations by a licensed HVAC-R/electrical/plumbing technician, as required. Failure to do so, may result in voiding the manufacturer's warranty.”
