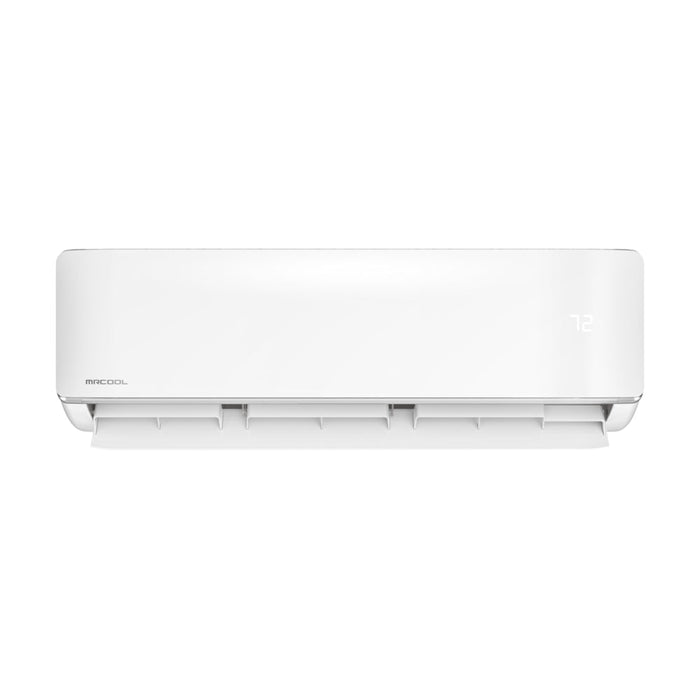

MRCOOL - DIY 5th Gen Energy Star - 1 Ton / 12,000 BTU Single Zone Wall Mount Mini Split Heat Pump System - 22 SEER2 - R454B - 115V

by MRCOOL
SKU DIY-12-HP-WM-115D25-O
PRICE MATCH GUARANTEE*: Found A Better Price? We'll Beat It! 877-606-9202 *Excludes ACIQ and MRCOOL Products.
EASY RETURNS: 30 Days Return Policy*
NO SALES TAX IN 48 STATES!
FREE SHIPPING: Free Shipping On Most Products!
TRADE & VOLUME DISCOUNTS: Call / Email or Chat for Details!

ADD TO CART FOR INSTANT SAVINGS!

$2,359.00
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

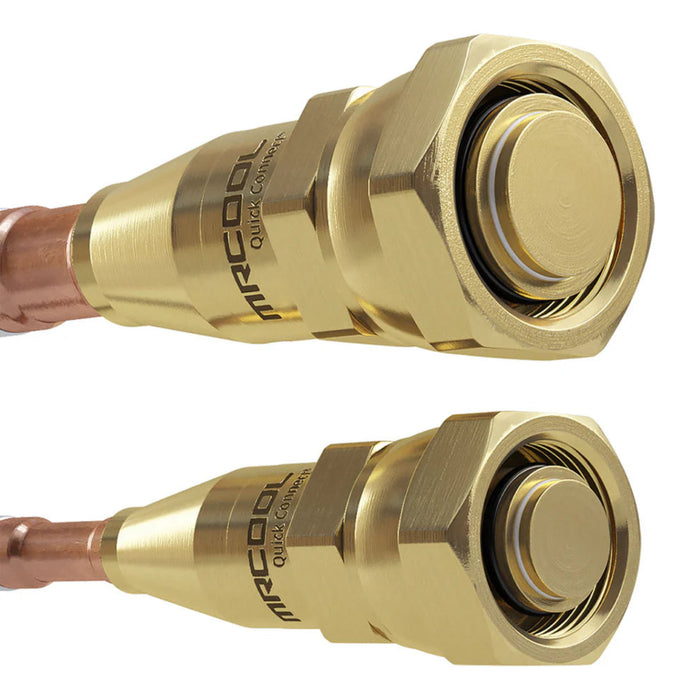

The MRCOOL DIY 5th Gen 12K BTU 23.5 SEER2 Mini Split Heat Pump makes heating and cooling easy with true do-it-yourself installation. Perfect for rooms up to 550 square feet, this ductless system comes with a pre-charged QuickConnect line set using R-454B refrigerant, so no vacuuming or special tools are needed. The durable DIYPRO cable protects wiring outdoors, while the Gold Fin condenser resists corrosion for long-lasting performance, even in coastal conditions. Control your comfort with the wireless remote, SmartHVAC app, or voice commands through Alexa and Google Assistant. Advanced features like Follow Me temperature tracking and Dry Mode dehumidification keep your space cool, dry, and comfortable year-round. Backed by a limited lifetime warranty, seven-year compressor coverage, and five-year parts protection, this efficient and reliable mini split is built for lasting home comfort.

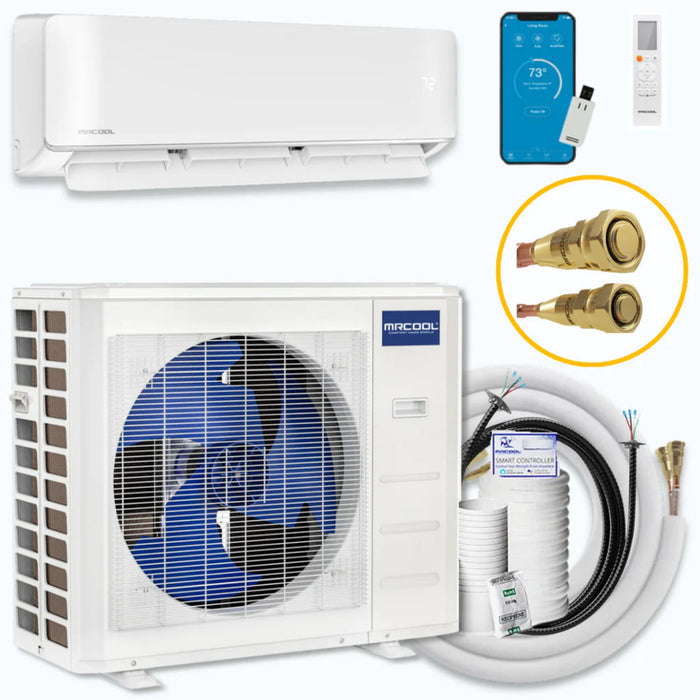

What's Included

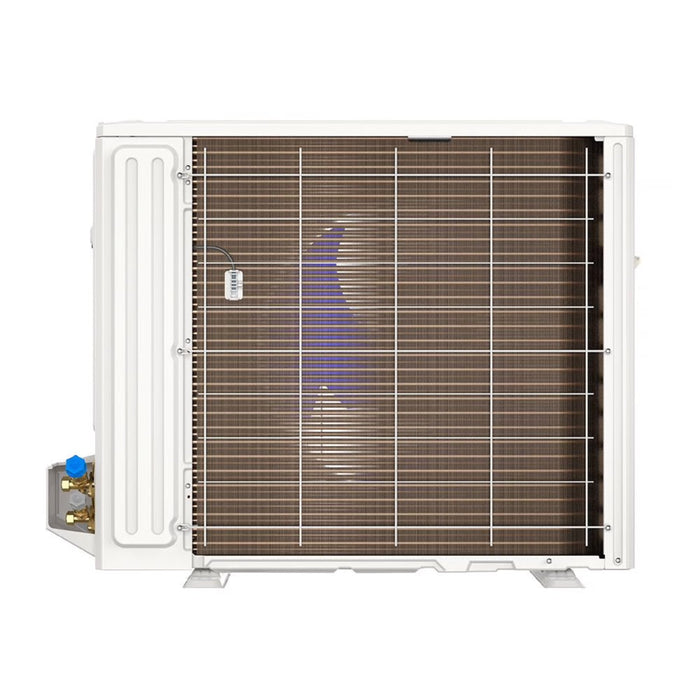

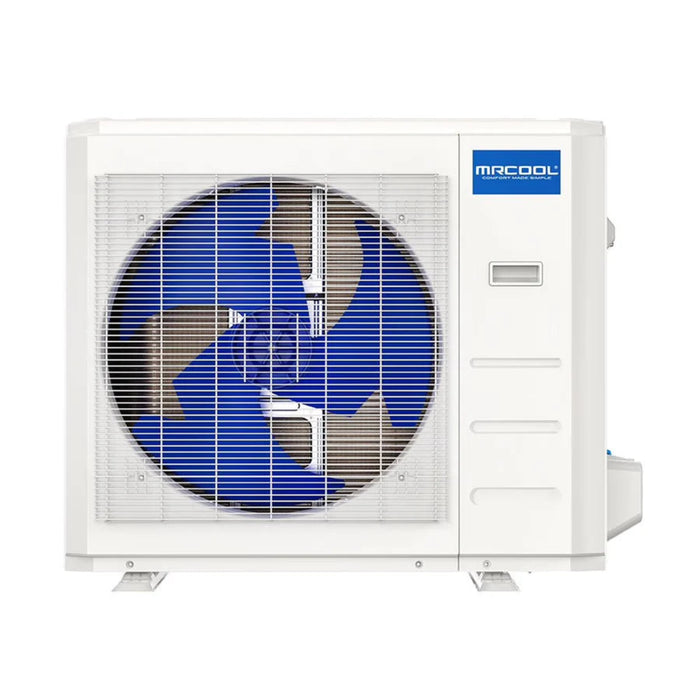

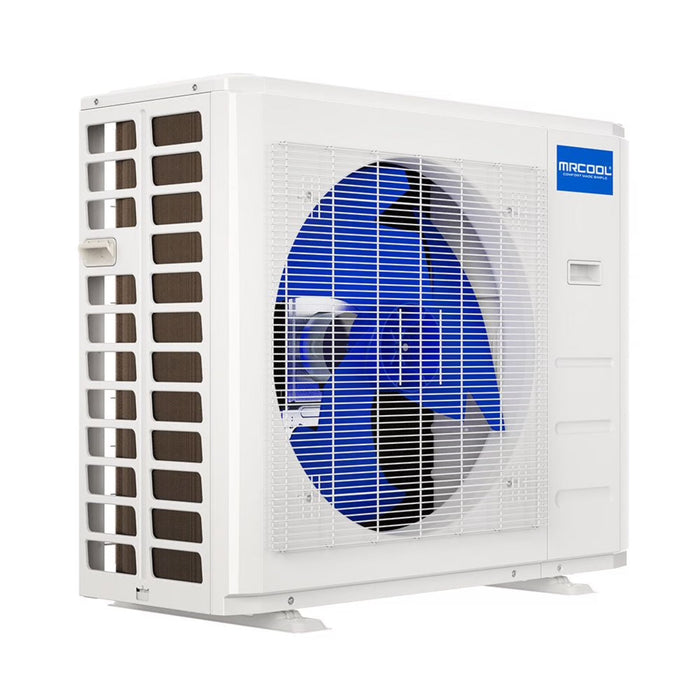

  • 1 x MRCOOL DIY 12K 5th Gen Condenser - DIY-12-HP-C-115D25-O

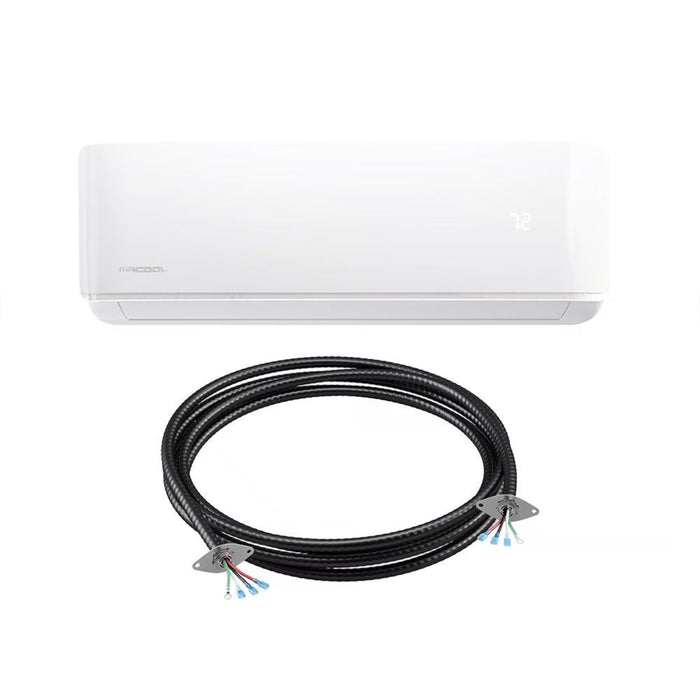

  • 1 x MRCOOL DIY 12K 5th Gen Air Handler - DIY-12-HP-WMAH-115D25-O
  • 1 x 25 ft. 1/4 x 3/8 Line Set - DIY25-1438-O
  • 1 x MRCOOL Remote Control - 17317000A63435

Features

  • Easy DIY installation
  • Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
  • Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.

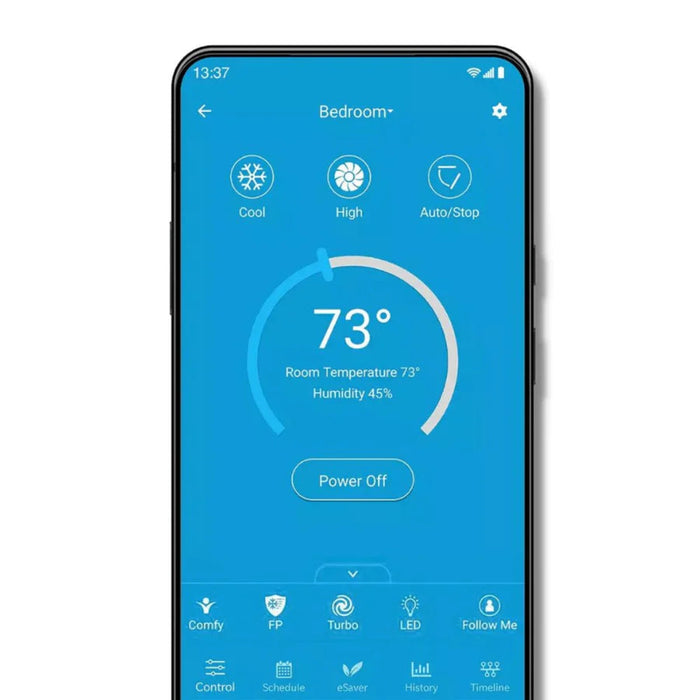

  • The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
  • Intertek listed - 5031495

Specifications

Condenser Specifications

BRAND NAME MRCOOL
SERIES DIY 5th gen Single-Zone Mini-splits
MODEL DIY-12-HP-C-115D25-O
SHORT DESCRIPTION MRCOOL® 12k DIY 5th Generation Mini-Split Condenser 115v
SEER2 23.5
EER2 12.5
HSPF2-4 10.2
HSPF2-5 7.6
TONNAGE 1
COOLING CAPACITY (BTU) 12000
HEATING CAPACITY (BTU) 12000
VOLTAGE (V) 115
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 20
MIN CIRCUIT AMPACITY (A) 18
COLOR White
ZONE CAPACITY 1
REFRIGERANT TYPE R-454B
REFRIGERANT VOLUME (OZ) 30.34
DECIBEL RATING (DBA) 54
INVERTER DC
LINE SET LENGTH 25
MAX LINESET LENGTH (FT) 82
LIQUID LINE SIZE 1/4
SUCTION LINE SIZE 3/8
COMPRESSOR MOTOR TYPE Rotary
AUXILIARY HEATER INCLUDED No
AUXILIARY HEATER AVAILABLE No
FAN ONLY OPTION Yes
QUIET MODE Yes
AUTO COOL Yes
WIFI COMPATIBILITY Yes
APP COMPATIBILITY Yes
WORKS WITH IOS Yes
WORKS WITH ANDROID Yes
UL LISTED Yes
ETL LISTED Yes
ENERGY STAR CERTIFIED Yes
AHRI CERTIFIED Yes
REGISTERED WARRANTY Extended Limited Lifetime*
BASE PARTS WARRANTY 5
BASE COMPRESSOR WARRANTY 7
HAS BATTERIES Yes
CONTAINS ELECTRONICS Yes
CONTAINS CHEMICALS Yes
CONTAINS AEROSOL Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
NET DEPTH (IN) 11.93
NET HEIGHT (IN) 21.85
NET WIDTH (IN) 30.12
NET WEIGHT (LBS) 83.11
GROSS DEPTH (IN) 16.54
GROSS HEIGHT (IN) 27.56
GROSS WIDTH (IN) 36.22
GROSS WEIGHT (LBS) 65.48

Air Handler Specifications

BRAND NAME MRCOOL
SERIES DIY 5th gen Single-Zone Mini-splits
MODEL DIY-12-HP-WMAH-115D25-O
SHORT DESCRIPTION MRCOOL® 12k DIY 5th Generation Mini-split Air Handler 115v
TONNAGE 1
VOLTAGE (V) 115
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 15
MIN CIRCUIT AMPACITY (A) 3
MOUNT TYPE Wall
COLOR White
MAX COVERAGE AREA 550 sqft
DECIBEL RATING LOW (DBA) 18
DECIBEL RATING HIGH (DBA) 43
NUMBER OF SPEEDS 5
OSCILLATION Yes
LIQUID LINE SIZE 1/4
SUCTION LINE SIZE 3/8
FILTER TYPE Reusable
AUXILIARY HEATER INCLUDED No
AUXILIARY HEATER AVAILABLE No
FAN ONLY OPTION Yes
QUIET MODE Yes
AUTO COOL Yes
WIFI COMPATIBILITY Yes
APP COMPATIBILITY Yes
WORKS WITH IOS Yes
WORKS WITH ANDROID Yes
REMOTE CONTROL INCLUDED Yes
UL LISTED Yes
ETL LISTED Yes
ENERGY STAR CERTIFIED Yes
AHRI CERTIFIED Yes
REGISTERED WARRANTY Extended Limited Lifetime*
BASE PARTS WARRANTY 5
BASE COMPRESSOR WARRANTY 7
HAS BATTERIES Yes
CONTAINS ELECTRONICS Yes
CONTAINS CHEMICALS Yes
CONTAINS AEROSOL Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
NET DEPTH (IN) 7.44
NET HEIGHT (IN) 11.69
NET WIDTH (IN) 31.57
NET WEIGHT (LBS) 24.91
GROSS DEPTH (IN) 16.34
GROSS HEIGHT (IN) 14.37
GROSS WIDTH (IN) 36.02
GROSS WEIGHT (LBS) 35.49

Owner Manual
