MRCOOL - DIY 5th Generation - 27,000 BTU 3-Zone Ductless Mini Split AC and Heat Pump with Ceiling Cassettes - SEER2 23 - (9K + 12K + 12K) - 230V

by MRCOOL
SKU DIYM327091212-16-16-16-CC
PRICE MATCH GUARANTEE*: Found A Better Price? We'll Beat It! 877-606-9202 *Excludes ACIQ and MRCOOL Products.
EASY RETURNS: 30 Days Return Policy*
NO SALES TAX IN 48 STATES!
FREE SHIPPING: Free Shipping On Most Products!
TRADE & VOLUME DISCOUNTS: Call / Email or Chat for Details!

ADD TO CART FOR INSTANT SAVINGS!

$7,033.00
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

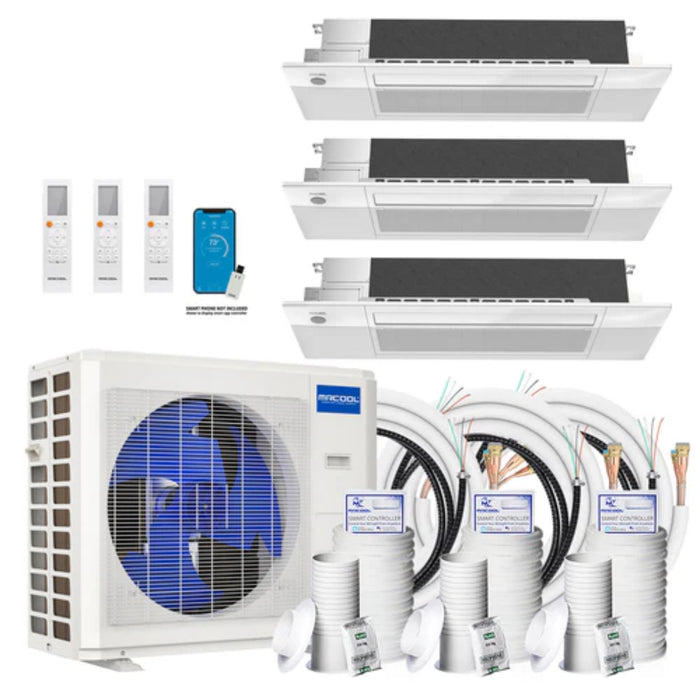

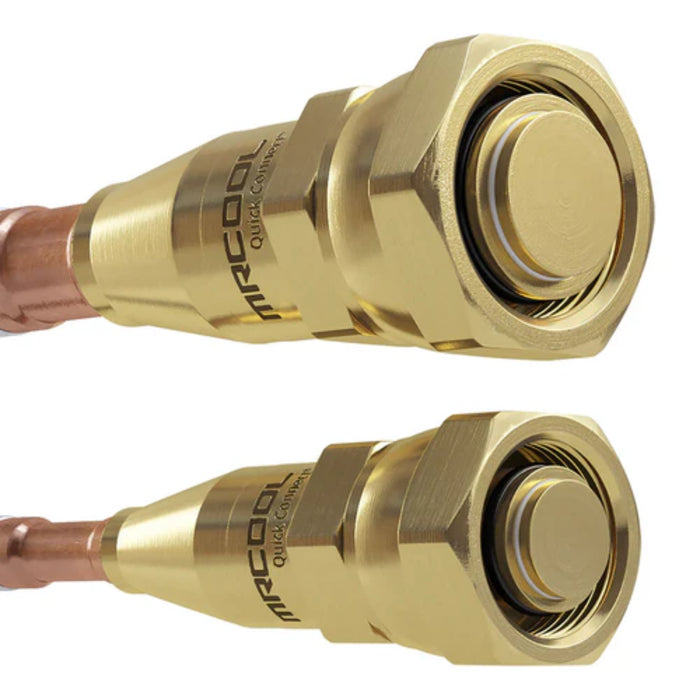

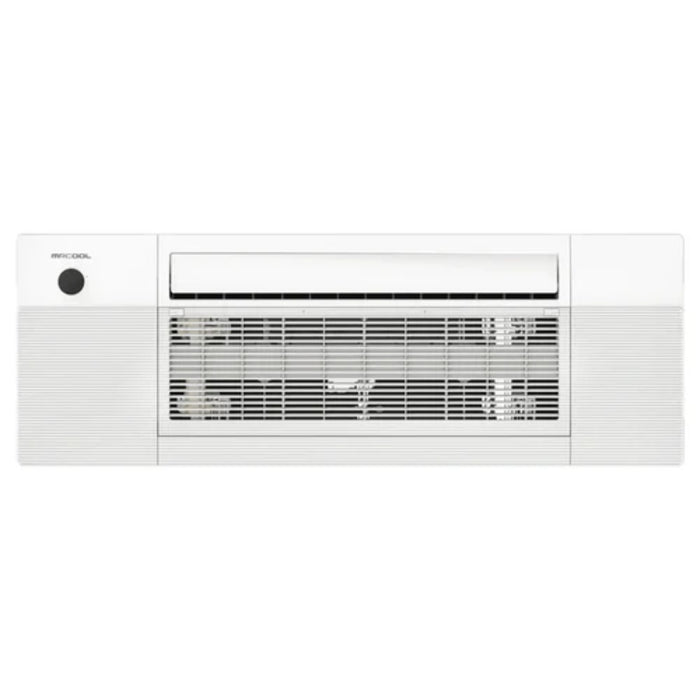

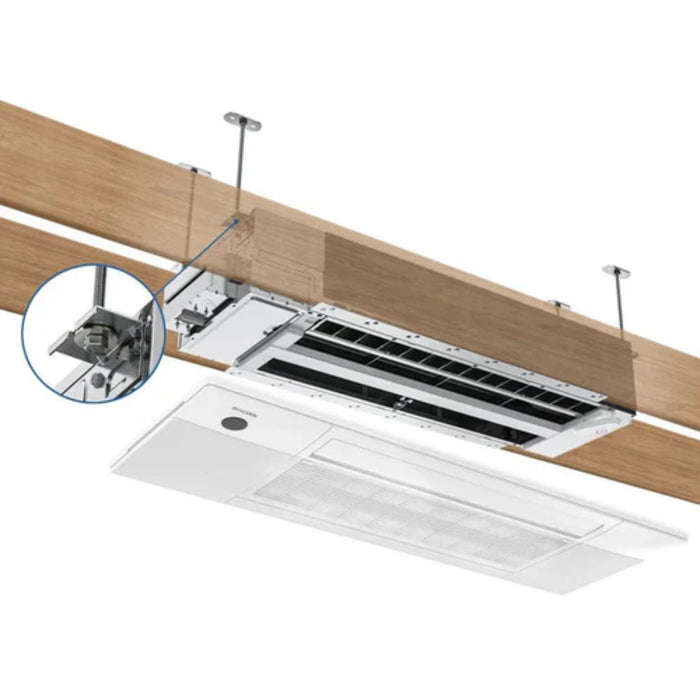

The MRCOOL DIY Multi Zone 5th Gen 27K BTU three zone ductless mini split is a complete heating and cooling solution designed for easy self installation. DIY Installation Made Easy: This system is built with MRCOOL DIY Quick Connect line sets, allowing installation without special tools, HVAC experience, or professional help. This saves thousands in installation costs. Balanced Multi Zone Comfort: The 27,000 BTU outdoor condenser supports three ceiling cassette air handlers to cool or heat multiple rooms at once. The system includes one 9,000 BTU unit for areas up to 375 square feet and two 12,000 BTU units for spaces up to 500 square feet each, giving every room independent temperature control. High Energy Efficiency: With a 23 SEER efficiency rating, this ductless mini split helps reduce energy consumption while maintaining strong performance. Year Round Heating and Cooling: As a heat pump system, it provides efficient cooling in summer and reliable heating in winter by pulling heat from outdoor air. Low Profile Ceiling Cassette Design: The ceiling cassettes install cleanly between standard 16 inch joists, including pre manufactured I joists. This keeps walls clear and delivers a modern, discreet appearance that works well in both new construction and retrofit projects. Quiet and Comfortable Operation: The system operates quietly, making it ideal for bedrooms, living areas, and offices. Easy Maintenance Access: The Elevation function lowers the filter panel, allowing fast and simple filter cleaning without hassle. Strong Warranty Coverage: This MRCOOL DIY system includes a 7 year compressor warranty, optional lifetime compressor coverage, and a 5 year parts warranty for long term peace of mind.

Features

  • Easy DIY® Installation
  • "Pre-charged DIY®
  • Quick Connect Line Set"
  • Simple to Use
  • Multi-room Comfort
  • Energy Efficient DC Inverter
  • 100% Sealed System
  • Gold Fin® Condenser
  • Eco Safe R-454B Refrigerant
  • Smartphone App Controls
  • Lifetime Technical Support
  • Low Ambient Cooling

Specifications

BRAND NAME MRCOOL
SERIES
DIY 5th gen Multi-Zone Mini-splits
MODEL
DIY-MULTI4-27HP230D-O
GTIN 840255587457
UPC 840255587457
SEER2 23
EER2 12
HSPF2-4 9.5
HSPF2-5 7
TONNAGE 2.25
COOLING CAPACITY (BTU) 26000
HEATING CAPACITY (BTU) 26000
VOLTAGE (V) 208/230
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 25
MIN CIRCUIT AMPACITY (A) 23
COLOR White
ZONE CAPACITY 4
REFRIGERANT TYPE R-454B
REFRIGERANT VOLUME (OZ) 84.66
DECIBEL RATING (DBA) 61
INVERTER DC
LINE SET LENGTH 25
MAX LINESET LENGTH (FT) 221.4
LIQUID LINE SIZE 1/4
SUCTION LINE SIZE 3/8
COMPRESSOR MOTOR TYPE Rotary
AUXILIARY HEATER INCLUDED No
AUXILIARY HEATER AVAILABLE No
FAN ONLY OPTION Yes
QUIET MODE Yes
AUTO COOL Yes
WIFI COMPATIBILITY Yes
APP COMPATIBILITY Yes
WORKS WITH IOS Yes
WORKS WITH ANDROID Yes
UL LISTED Yes
ETL LISTED Yes
ENERGY STAR CERTIFIED Yes
AHRI CERTIFIED Yes
REGISTERED WARRANTY
Extended Limited Lifetime*
BASE PARTS WARRANTY 5
BASE COMPRESSOR WARRANTY 7
HAS BATTERIES Yes
CONTAINS ELECTRONICS Yes
CONTAINS CHEMICALS Yes
CONTAINS AEROSOL Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
NET DEPTH (IN) 16.14
NET HEIGHT (IN) 31.89
NET WIDTH (IN) 37.24
NET WEIGHT (LBS) 140.21
GROSS DEPTH (IN) 19.69
GROSS HEIGHT (IN) 34.84
GROSS WIDTH (IN) 42.91
GROSS WEIGHT (LBS) 151.02

Owner's Manual

All MRCOOL non DIY products are to be installed in accordance with the manufacturer's installation methods and recommendations by a licensed HVAC-R/electrical/plumbing technician, as required. Failure to do so, may result in voiding the manufacturer's warranty.”
