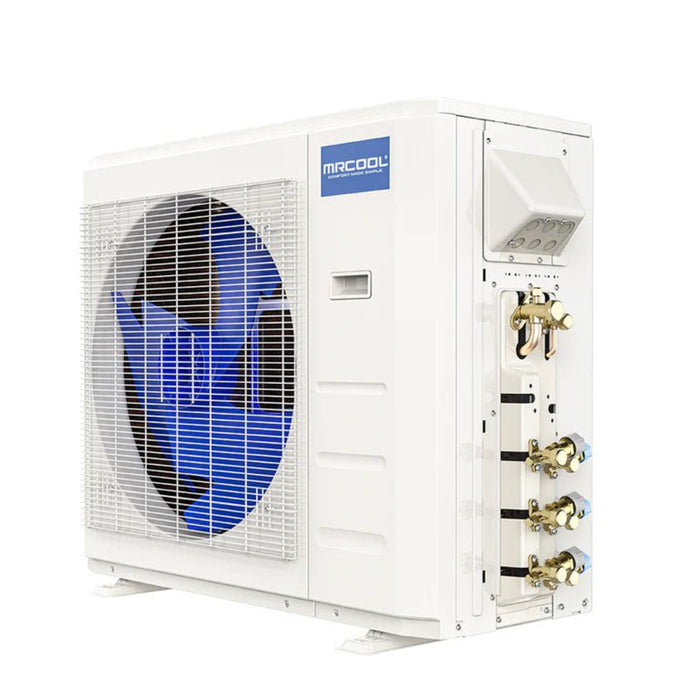

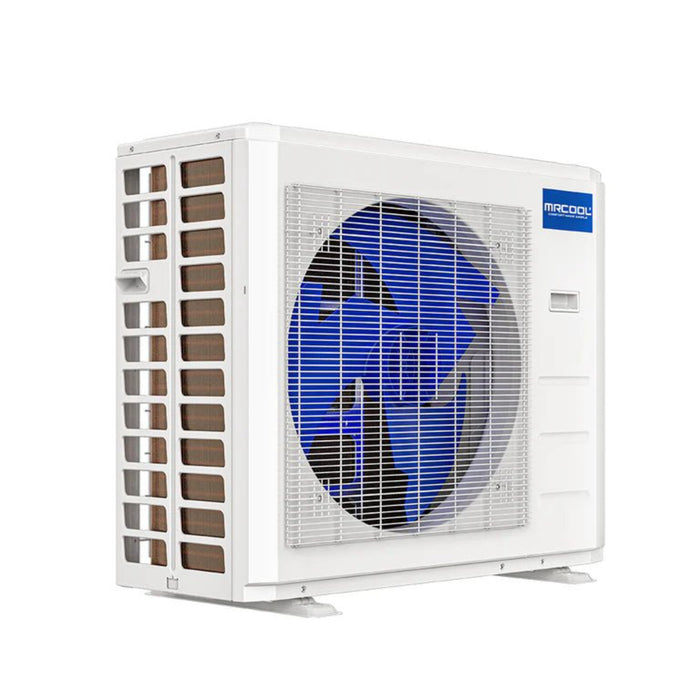

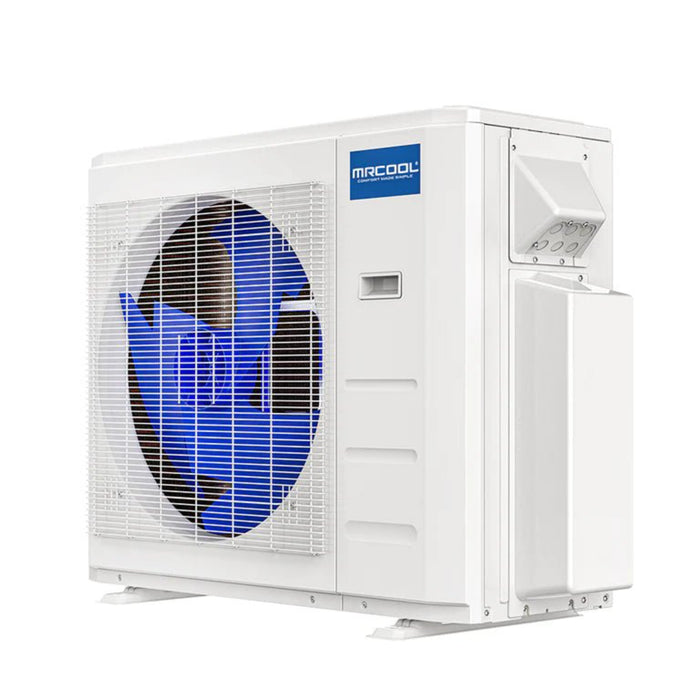

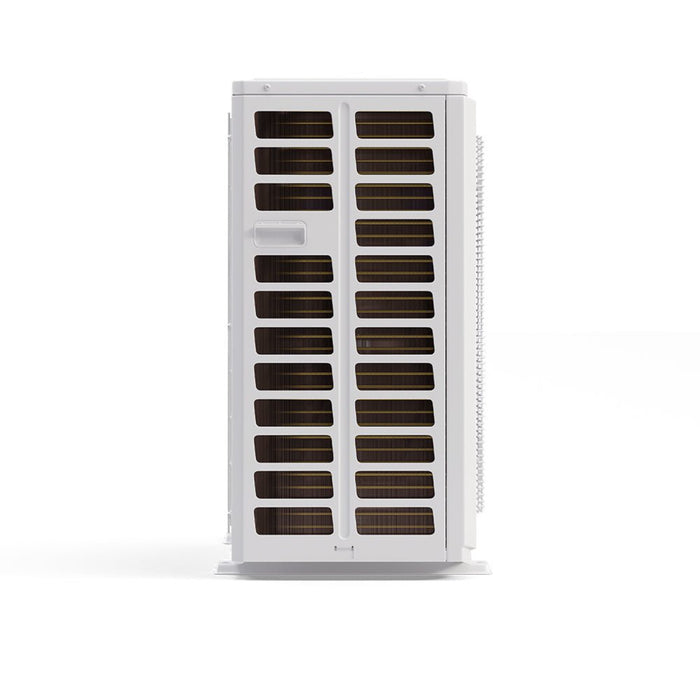

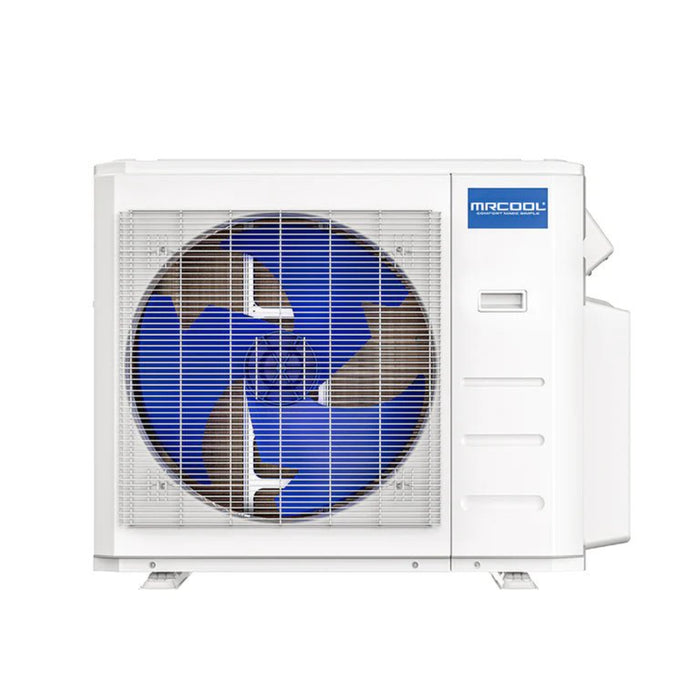

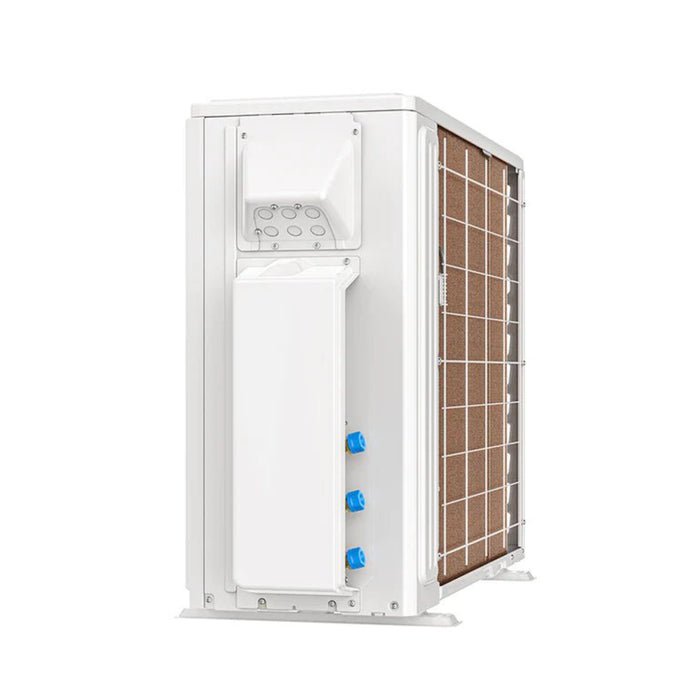

MRCOOL - DIY 5th Generation - 27,000 BTU 3-Zone Mini Split Air Conditioner and Heat Pump - SEER2 23 - (9K + 12K + 12K) - 230V

Can't find what you're looking for? Contact our Experts Today! We have over 10,000 UNITS available on hand!

MRCOOL - DIY 5th Generation - 27,000 BTU 3-Zone Mini Split Air Conditioner and Heat Pump - SEER2 23 - (9K + 12K + 12K) - 230V

Name: MRCOOL - DIY 5th Generation - 27,000 BTU 3-Zone Mini Split Air Conditioner and Heat Pump - SEER2 23 - (9K + 12K + 12K) - 230V
Brand: MRCOOL
SKU: DIYM327HPW02C74
Price: 4691.0 USD
Availability: InStock

by MRCOOL

SKU DIYM327HPW02C74

PRICE MATCH GUARANTEE*: Found A Better Price? We'll Beat It! 877-606-9202 *Excludes ACIQ and MRCOOL Products.

EASY RETURNS: 30 Days Return Policy*

NO SALES TAX IN 48 STATES!

FREE SHIPPING: Free Shipping On Most Products!

TRADE & VOLUME DISCOUNTS: Call / Email or Chat for Details!

ADD TO CART FOR INSTANT SAVINGS!

$4,691.00

Quantity

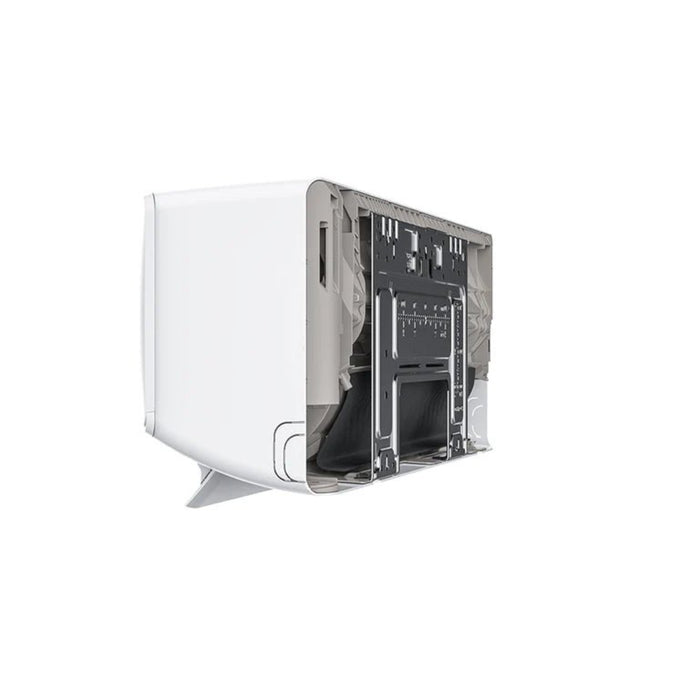

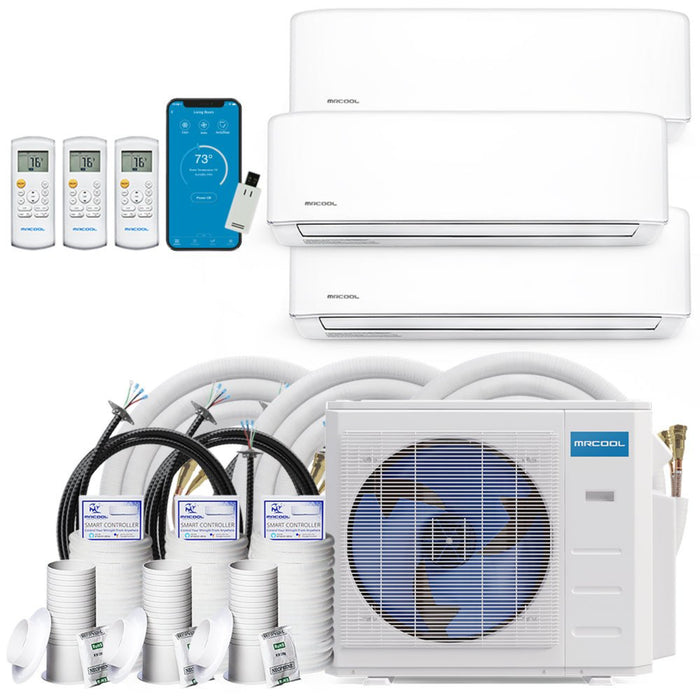

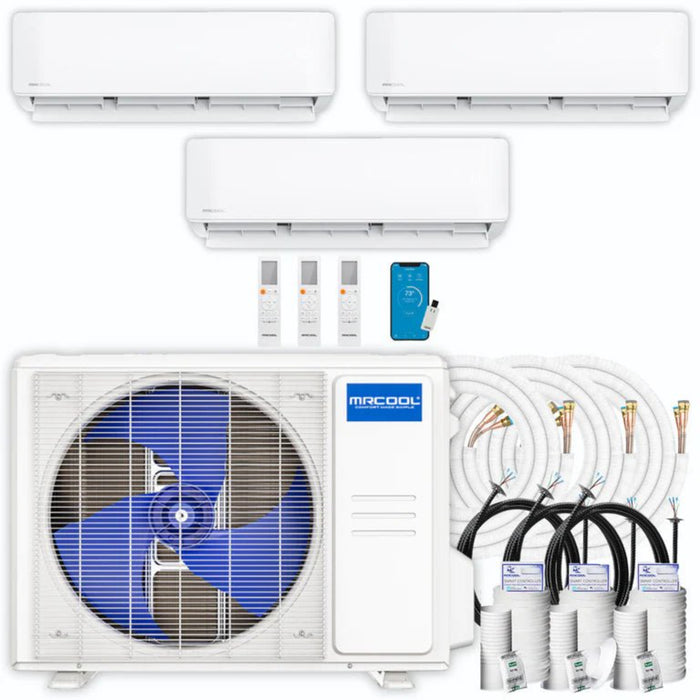

he MRCOOL DIY 5th Gen Multi-Zone 27,000 BTU 23 SEER2 Three-Zone Ductless Mini Split – 9K + 12K + 12K is a complete heating and cooling solution you can install yourself without special tools or professional training. Designed for year-round comfort, this ductless heat pump features one 9,000 BTU air handler for up to 350 sq. ft. and two 12,000 BTU units for up to 550 sq. ft. each, powered by a 27K condenser with pre-charged Quick Connect lines using eco-friendly R-454B refrigerant. Enjoy reliable cooling in summer, heating in winter, and dehumidifying during damp seasons, all controlled by wireless remotes, the MRCOOL Smart Controller app, or voice commands via Amazon Alexa and Google Home. The system includes auto, sleep, dry, timer, mute, and emergency operation modes for flexible comfort, while diagnostic displays, filter reminders, and refrigerant alerts make maintenance simple. With directional airflow for even distribution, quiet operation, auto-restart after power outages, and a 7-year compressor warranty (with limited lifetime option) plus 5-year parts coverage, this DIY-friendly mini split is the perfect way to save money on installation while upgrading your home comfort.

Features

Easy DIY® Installation

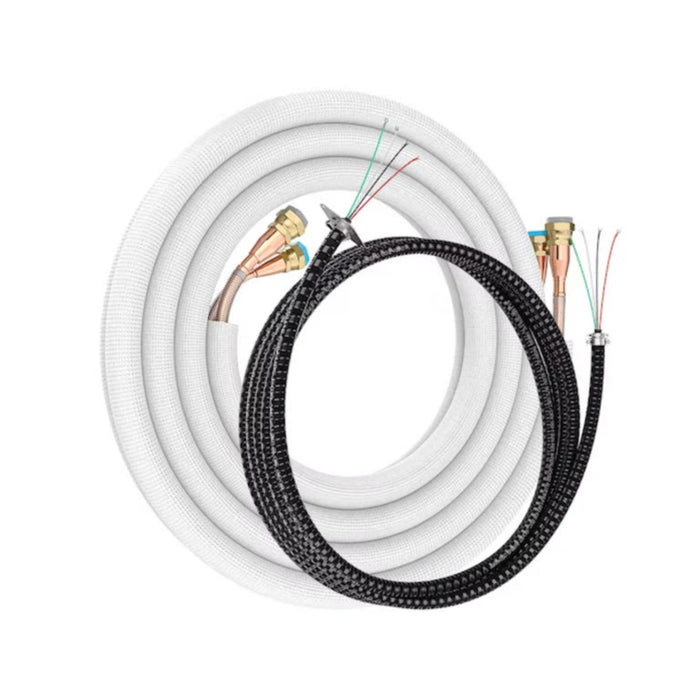

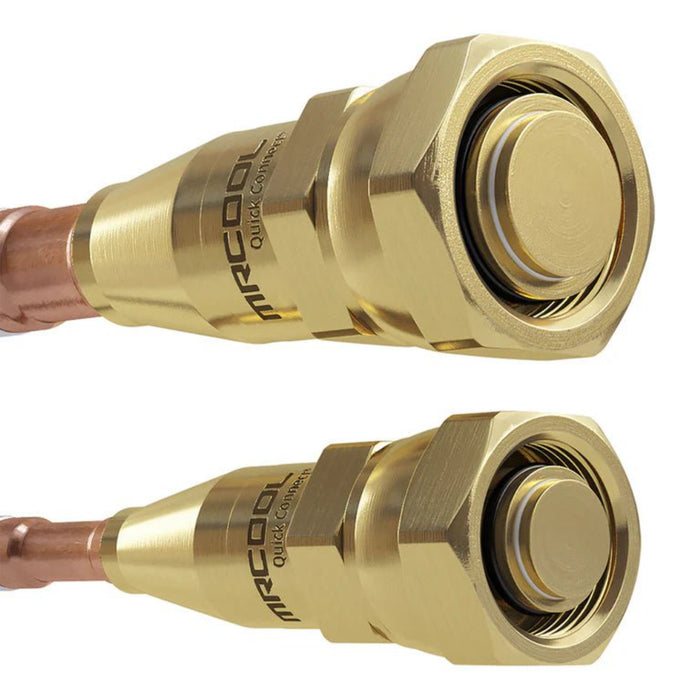

"Pre-charged DIY®
Quick Connect Line Set"
Simple to Use
Multi-room Comfort
Energy Efficient DC Inverter
100% Sealed System

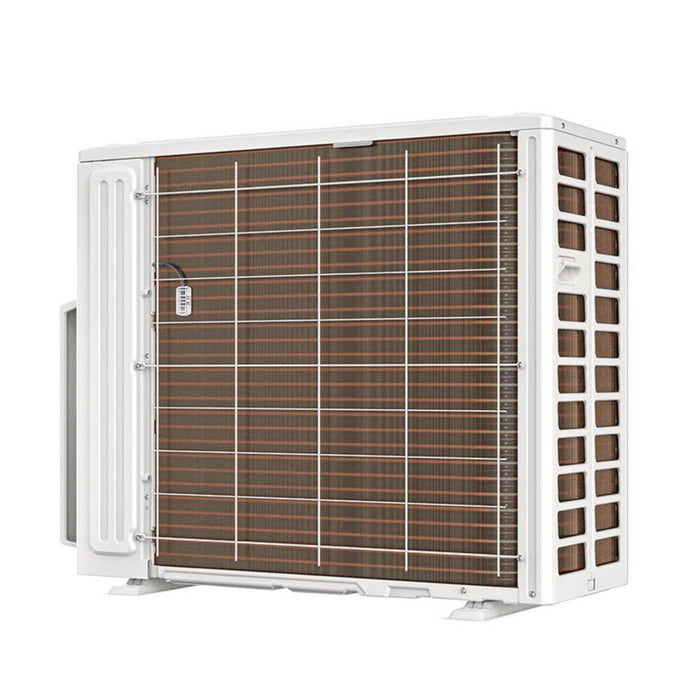

Gold Fin® Condenser
Eco Safe R-454B Refrigerant
Smartphone App Controls
Lifetime Technical Support
Follow Me® Feature
Low Ambient Cooling

Specifications

BRAND NAME	MRCOOL
SERIES	DIY 5th gen Multi-Zone Mini-splits
MODEL	DIY-MULTI4-27HP230D-O
GTIN	840255587457
UPC	840255587457
SEER2	23
EER2	12
HSPF2-4	9.5
HSPF2-5	7
TONNAGE	2.25
COOLING CAPACITY (BTU)	26000
HEATING CAPACITY (BTU)	26000
VOLTAGE (V)	208/230
PHASE	1
CYCLE	60
MAX FUSE BREAKER (A)	25
MIN CIRCUIT AMPACITY (A)	23
COLOR	White
ZONE CAPACITY	4
REFRIGERANT TYPE	R-454B
REFRIGERANT VOLUME (OZ)	84.66
DECIBEL RATING (DBA)	61
INVERTER	DC
LINE SET LENGTH	25
MAX LINESET LENGTH (FT)	221.4
LIQUID LINE SIZE	1/4
SUCTION LINE SIZE	3/8
COMPRESSOR MOTOR TYPE	Rotary
AUXILIARY HEATER INCLUDED	No
AUXILIARY HEATER AVAILABLE	No
FAN ONLY OPTION	Yes
QUIET MODE	Yes
AUTO COOL	Yes
WIFI COMPATIBILITY	Yes
APP COMPATIBILITY	Yes
WORKS WITH IOS	Yes
WORKS WITH ANDROID	Yes
UL LISTED	Yes
ETL LISTED	Yes
ENERGY STAR CERTIFIED	Yes
AHRI CERTIFIED	Yes
REGISTERED WARRANTY	Extended Limited Lifetime*
BASE PARTS WARRANTY	5
BASE COMPRESSOR WARRANTY	7
HAS BATTERIES	Yes
CONTAINS ELECTRONICS	Yes
CONTAINS CHEMICALS	Yes
CONTAINS AEROSOL	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
NET DEPTH (IN)	16.14
NET HEIGHT (IN)	31.89
NET WIDTH (IN)	37.24
NET WEIGHT (LBS)	140.21
GROSS DEPTH (IN)	19.69
GROSS HEIGHT (IN)	34.84
GROSS WIDTH (IN)	42.91
GROSS WEIGHT (LBS)	151.02

Owner's Manual

All MRCOOL non DIY products are to be installed in accordance with the manufacturer's installation methods and recommendations by a licensed HVAC-R/electrical/plumbing technician, as required. Failure to do so, may result in voiding the manufacturer's warranty.”
