MRCOOL - DIY 5th Generation - 36,000 BTU 2-Zone Mini Split Air Conditioner and Heat Pump - SEER2 23 - (6K + 18K) - R454B - 230V
Can't find what you're looking for? Contact our Experts Today! We have over 10,000 UNITS available on hand!
Email Us
Chat
Call Us
Customers rate us 4.8/5 based on 2319 reviews.

MRCOOL - DIY 5th Generation - 36,000 BTU 2-Zone Mini Split Air Conditioner and Heat Pump - SEER2 23 - (6K + 18K) - R454B - 230V

by MRCOOL
SKU DIYM236618
PRICE MATCH GUARANTEE*: Found A Better Price? We'll Beat It! 877-606-9202 *Excludes ACIQ and MRCOOL Products.
EASY RETURNS: 30 Days Return Policy*
NO SALES TAX IN 48 STATES!
FREE SHIPPING: Free Shipping On Most Products!
TRADE & VOLUME DISCOUNTS: Call / Email or Chat for Details!

ADD TO CART FOR INSTANT SAVINGS!

$4,397.00
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

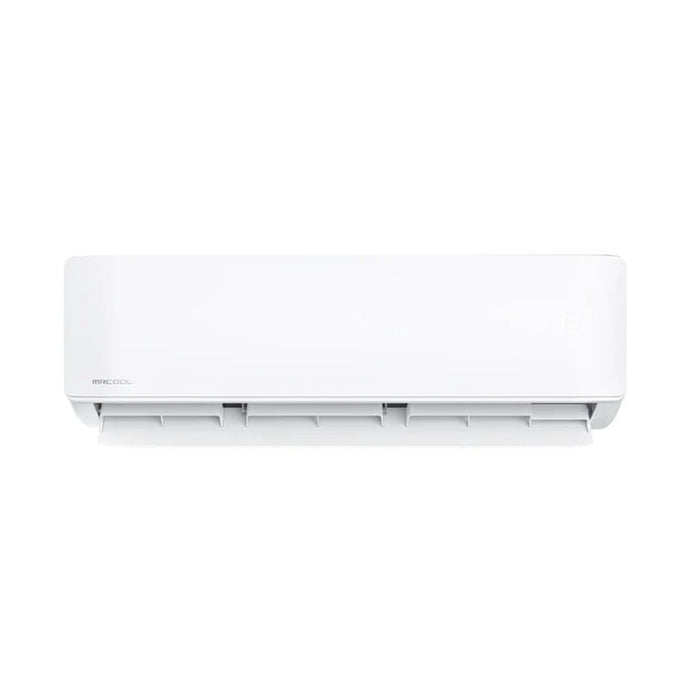

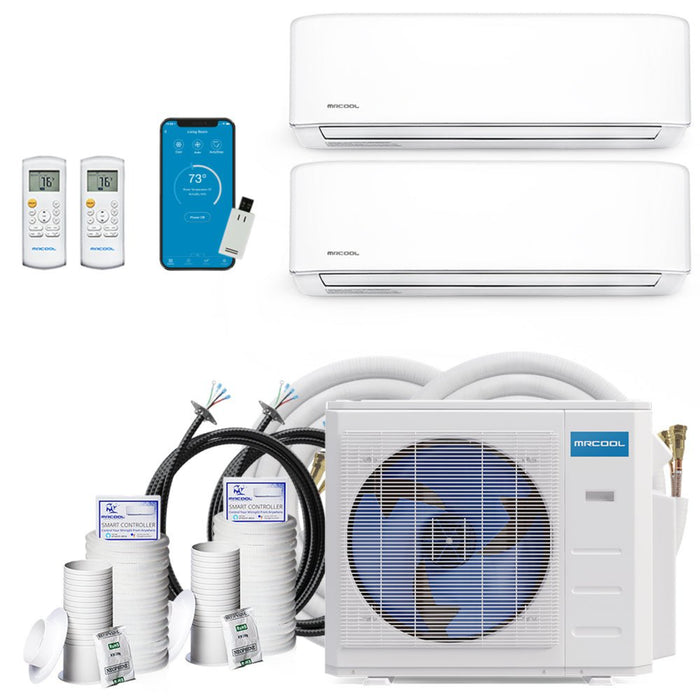

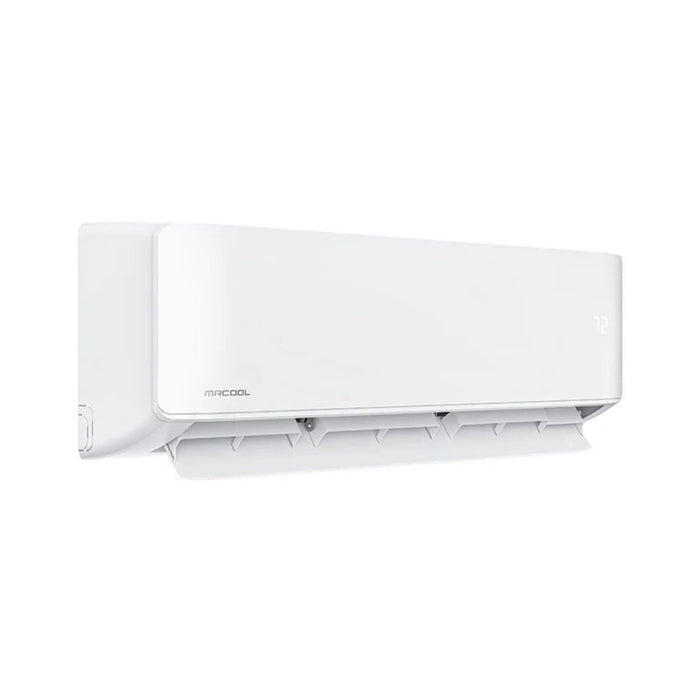

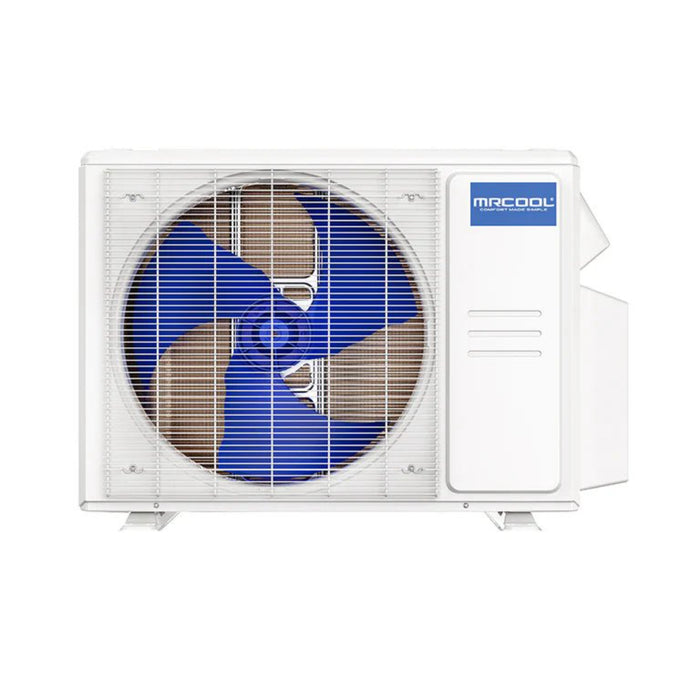

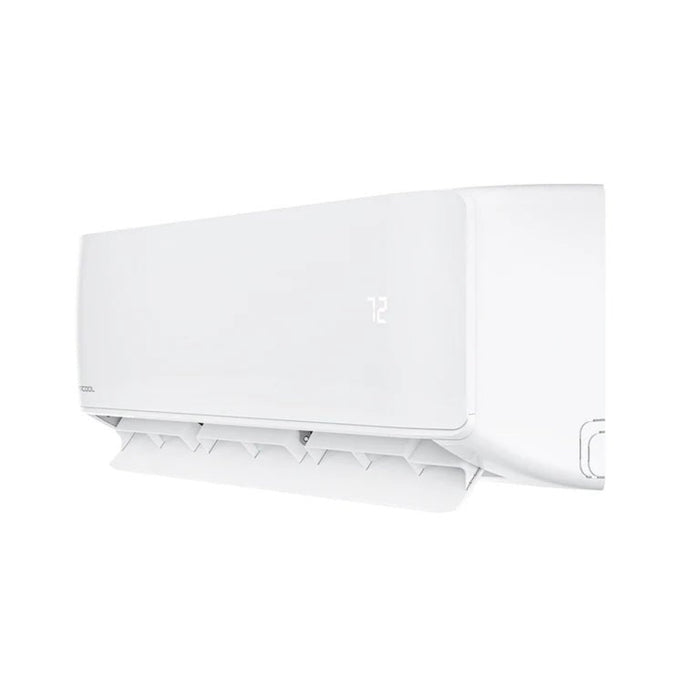

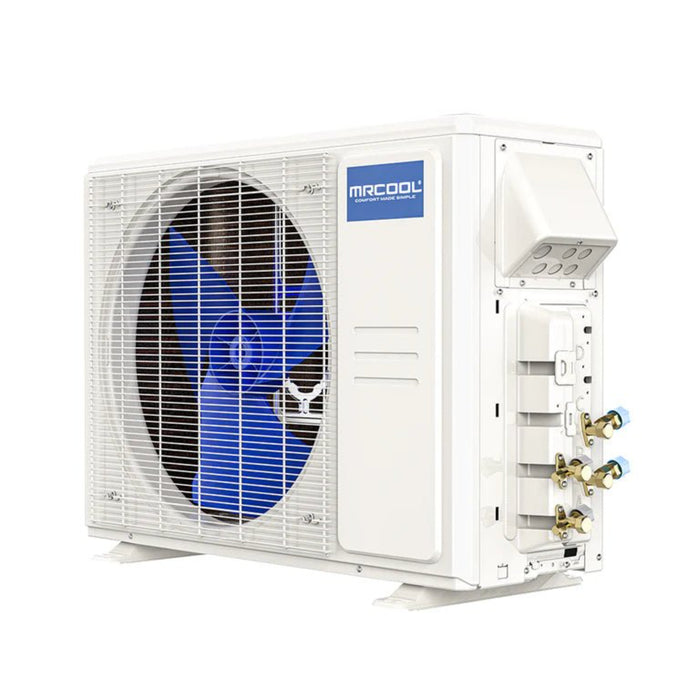

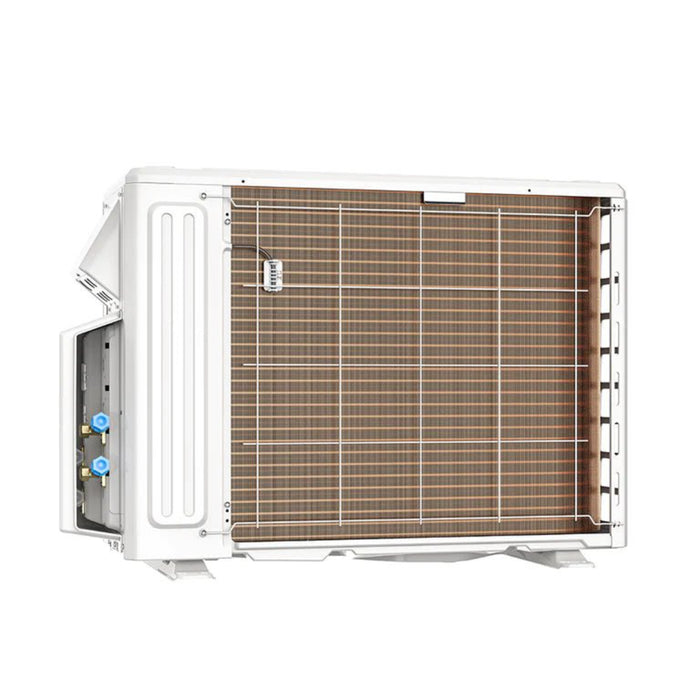

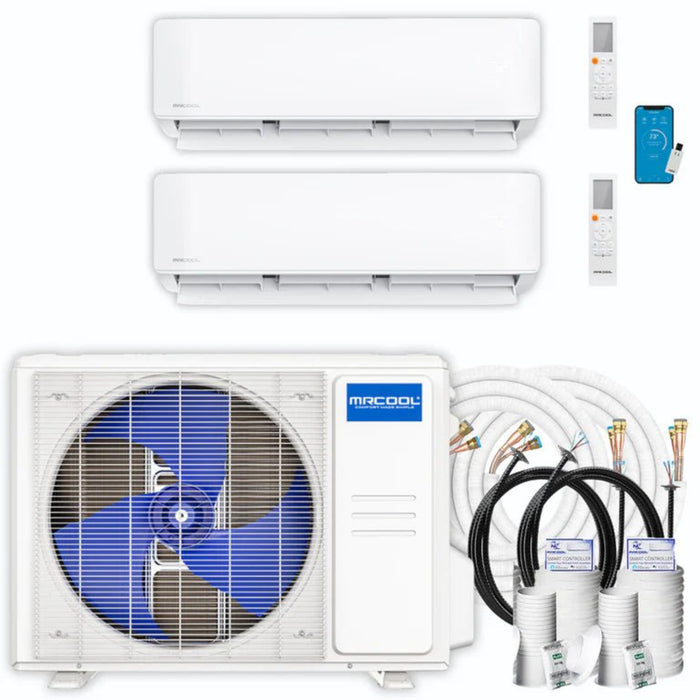

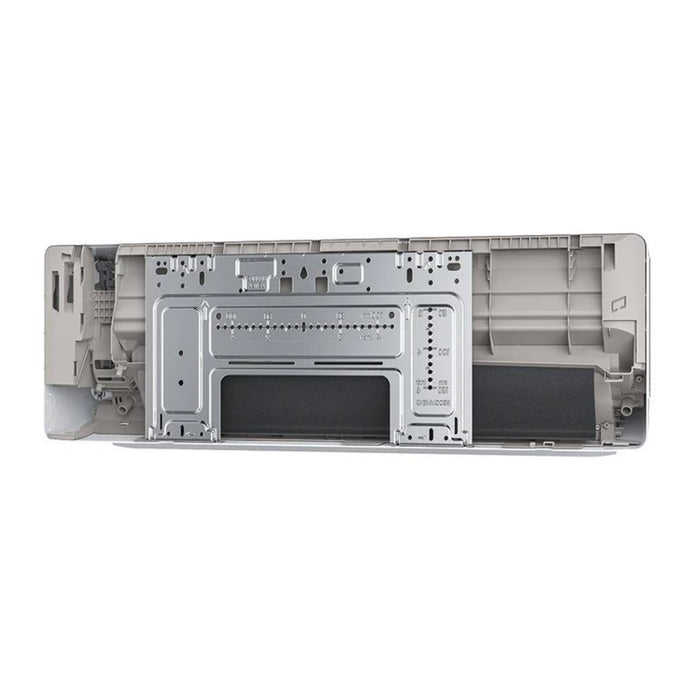

The MRCOOL DIY 5th Gen Multi-Zone 36,000 BTU Dual-Zone Ductless Mini Split (6K + 18K) makes it easy to heat or cool two spaces with powerful performance and simple DIY installation. With a 23 SEER efficiency rating, this system delivers reliable comfort while keeping energy costs low. The 6,000 BTU air handler covers rooms up to 200 sq. ft., while the 18,000 BTU unit handles spaces up to 800 sq. ft., making it ideal for small and medium areas. Pre-charged Quick Connect line sets with eco-friendly R-454B refrigerant let you install without special tools or professional help. Smart features include app control, Wi-Fi compatibility, and voice control with Amazon Alexa and Google Assistant. With heating, cooling, dehumidifying, sleep mode, auto operation, and built-in filter cleaning alerts, this system ensures year-round comfort with minimal upkeep. Backed by a 7-year compressor warranty (plus optional lifetime coverage) and 5-year parts warranty, the MRCOOL DIY Multi-Zone Mini Split is the ultimate blend of convenience, savings, and performance.

Features

  • Easy DIY® Installation

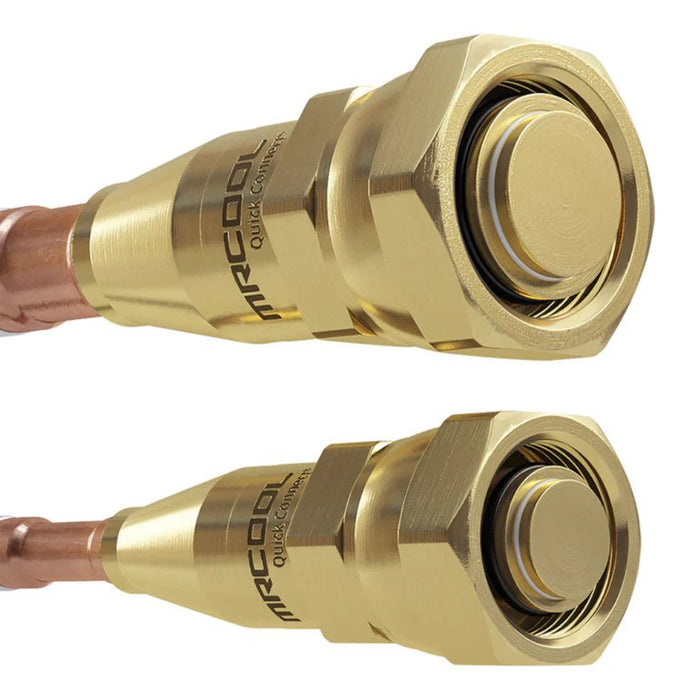

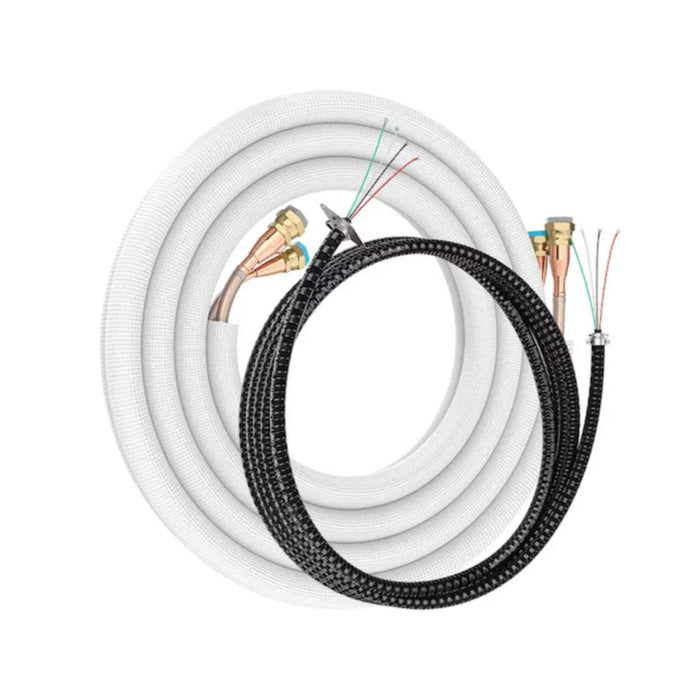

  • "Pre-charged DIY®
  • Quick Connect Line Set"
  • Simple to Use
  • Multi-room Comfort
  • Energy Efficient DC Inverter
  • 100% Sealed System
  • Gold Fin® Condenser
  • Eco Safe R-454B Refrigerant
  • Smartphone App Controls
  • Lifetime Technical Support
  • Follow Me® Feature
  • Low Ambient Cooling

Specifications

BRAND NAME MRCOOL
SERIES
DIY 5th gen Multi-Zone Mini-splits
MODEL
DIY-MULTI5-36HP230D-O
GTIN 840255587464
UPC 840255587464
SEER2 23
EER2 12
HSPF2-4 9.9
HSPF2-5 7.5
TONNAGE 3
COOLING CAPACITY (BTU) 34000
HEATING CAPACITY (BTU) 36000
VOLTAGE (V) 208/230
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 35
MIN CIRCUIT AMPACITY (A) 30.5
COLOR White
ZONE CAPACITY 5
REFRIGERANT TYPE R-454B
REFRIGERANT VOLUME (OZ) 104.75
DECIBEL RATING (DBA) 64
INVERTER DC
LINE SET LENGTH 25
MAX LINESET LENGTH (FT) 221.4
LIQUID LINE SIZE 1/4
SUCTION LINE SIZE
(3/8 X4) (1/2 X1)
COMPRESSOR MOTOR TYPE Rotary
AUXILIARY HEATER INCLUDED No
AUXILIARY HEATER AVAILABLE No
FAN ONLY OPTION Yes
QUIET MODE Yes
AUTO COOL Yes
WIFI COMPATIBILITY Yes
APP COMPATIBILITY Yes
WORKS WITH IOS Yes
WORKS WITH ANDROID Yes
UL LISTED Yes
ETL LISTED Yes
ENERGY STAR CERTIFIED Yes
AHRI CERTIFIED Yes
REGISTERED WARRANTY
Extended Limited Lifetime*
BASE PARTS WARRANTY 5
BASE COMPRESSOR WARRANTY 7
HAS BATTERIES Yes
CONTAINS ELECTRONICS Yes
CONTAINS CHEMICALS Yes
CONTAINS AEROSOL Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
NET DEPTH (IN) 16.14
NET HEIGHT (IN) 31.89
NET WIDTH (IN) 37.24
NET WEIGHT (LBS) 169.24
GROSS DEPTH (IN) 19.69
GROSS HEIGHT (IN) 34.84
GROSS WIDTH (IN) 42.91
GROSS WEIGHT (LBS) 181.88

Owner's Manual

All MRCOOL non DIY products are to be installed in accordance with the manufacturer's installation methods and recommendations by a licensed HVAC-R/electrical/plumbing technician, as required. Failure to do so, may result in voiding the manufacturer's warranty.”
