MRCOOL - DIY 5th Generation - 36,000 BTU 3-Zone Mini Split Air Conditioner and Heat Pump - SEER2 23 - (6K + 6K + 18K) - 230V
Can't find what you're looking for? Contact our Experts Today! We have over 10,000 UNITS available on hand!
Email Us
Chat
Call Us
Customers rate us 4.8/5 based on 2321 reviews.

MRCOOL - DIY 5th Generation - 36,000 BTU 3-Zone Mini Split Air Conditioner and Heat Pump - SEER2 23 - (6K + 6K + 18K) - 230V

by MRCOOL
SKU DIYM336060612
PRICE MATCH GUARANTEE*: Found A Better Price? We'll Beat It! 877-606-9202 *Excludes ACIQ and MRCOOL Products.
EASY RETURNS: 30 Days Return Policy*
NO SALES TAX IN 48 STATES!
FREE SHIPPING: Free Shipping On Most Products!
TRADE & VOLUME DISCOUNTS: Call / Email or Chat for Details!

ADD TO CART FOR INSTANT SAVINGS!

$5,081.00
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

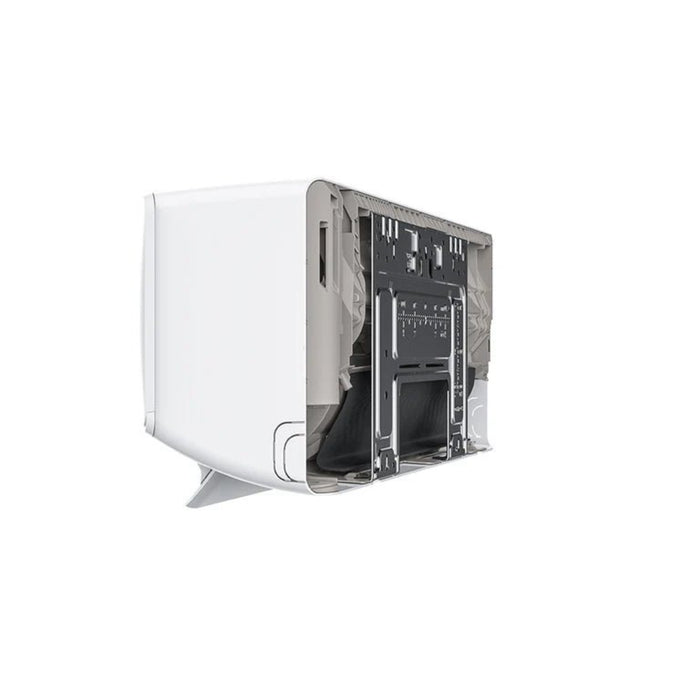

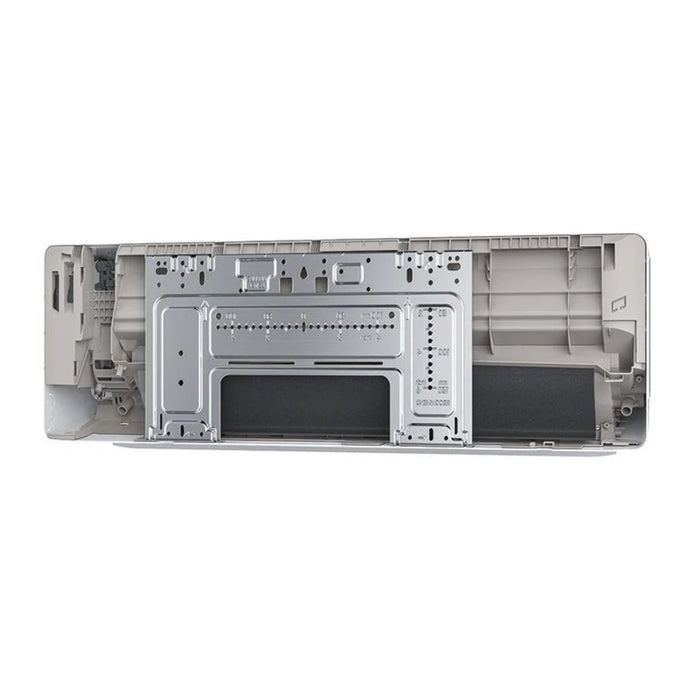

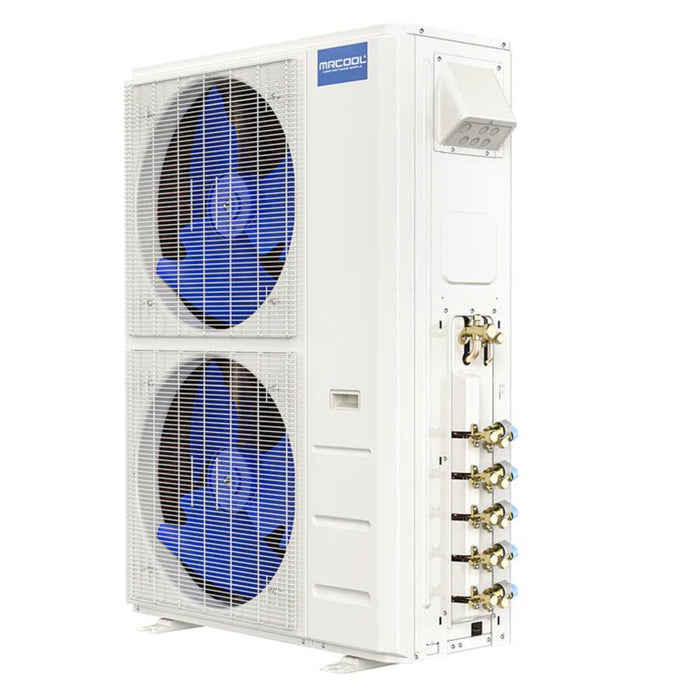

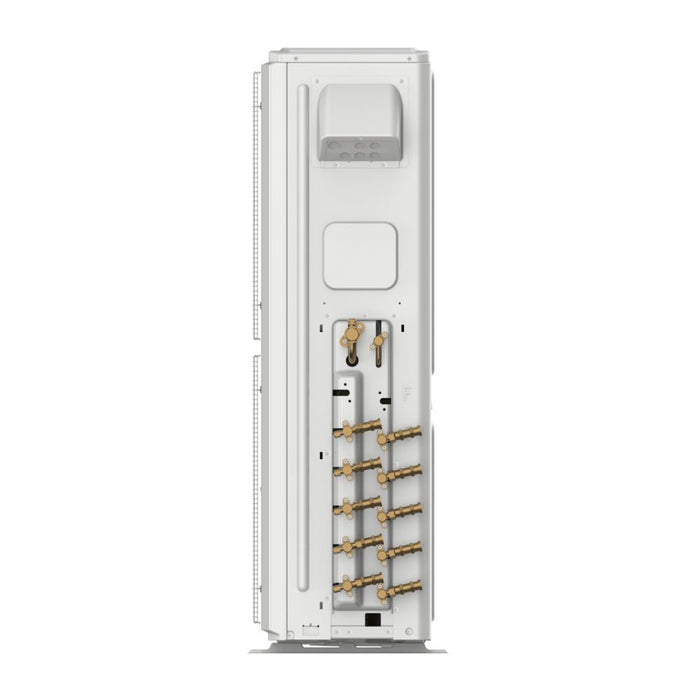

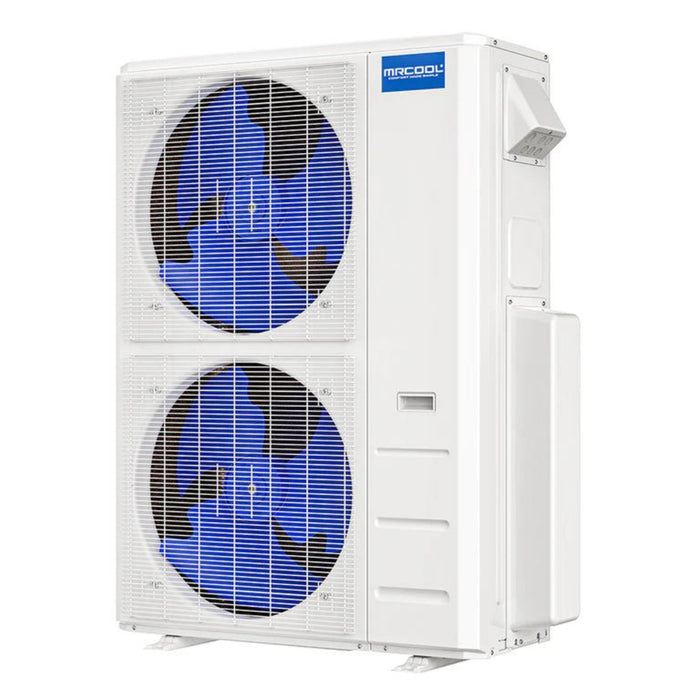

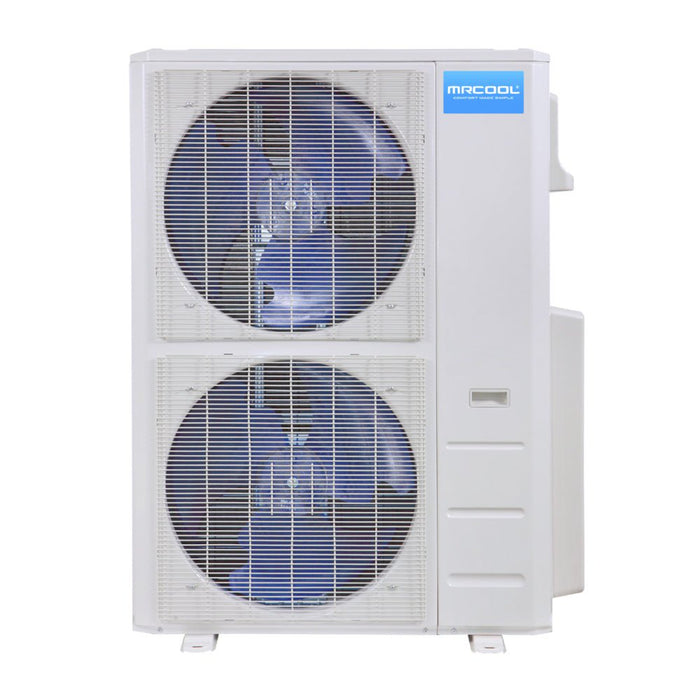

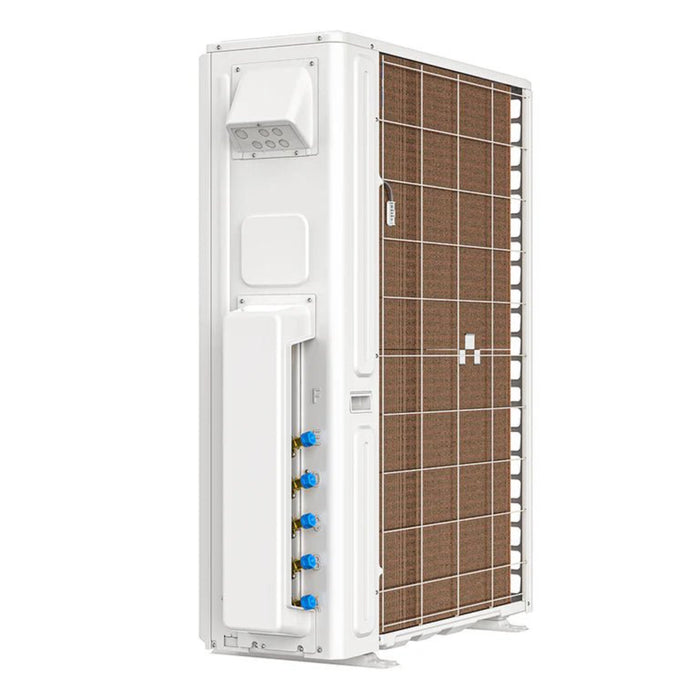

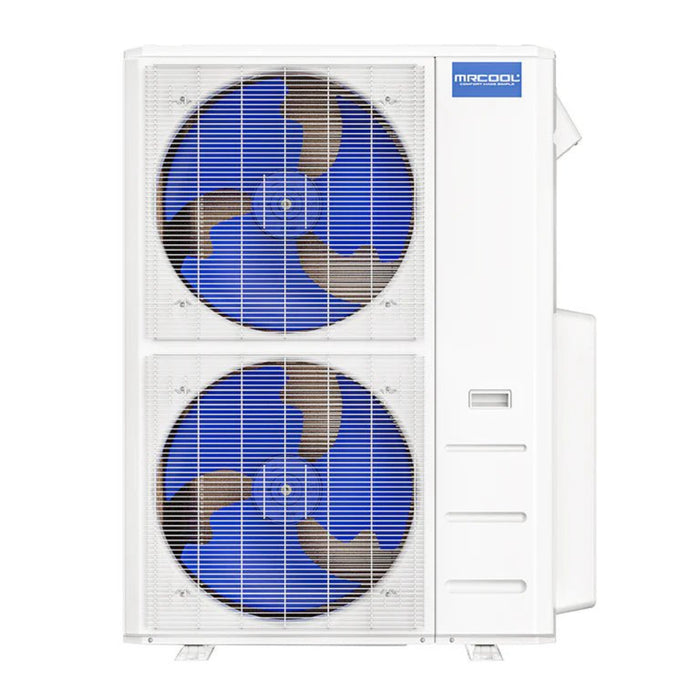

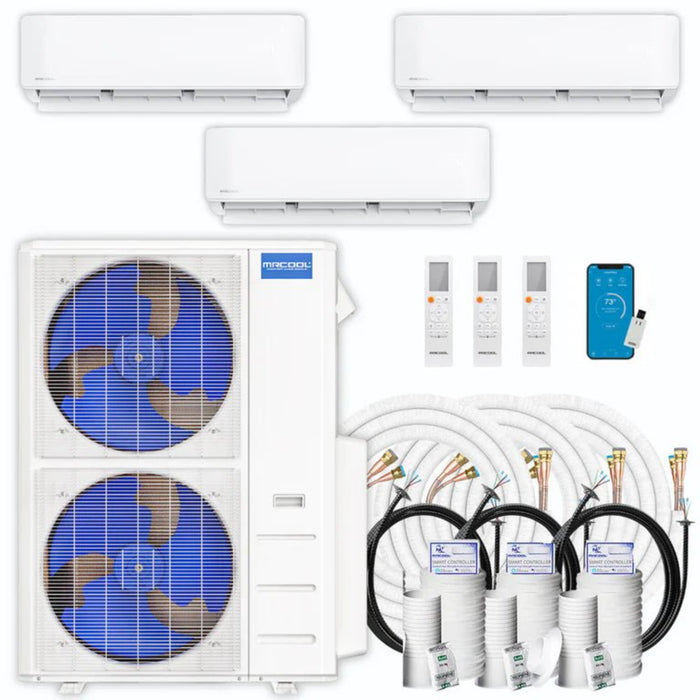

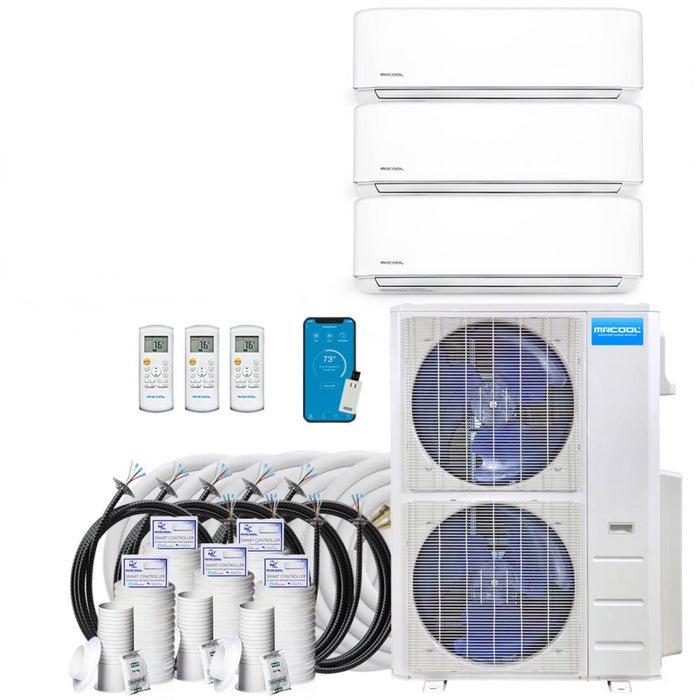

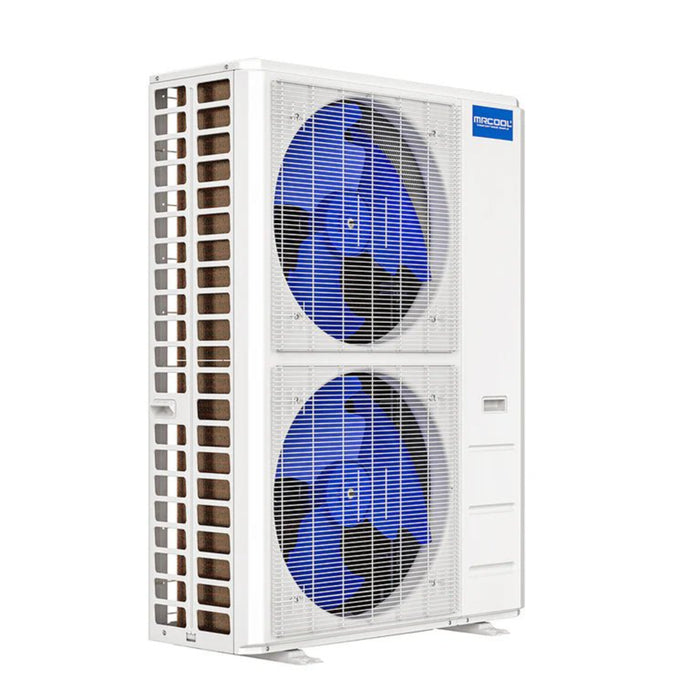

The MRCOOL DIY 5th Gen Multi-Zone 36,000 BTU 23 SEER2 Three-Zone Ductless Heat Pump Split System (6K + 6K + 18K) makes it simple to heat and cool your home without the need for professional installation. Designed with pre-charged Quick Connect lines and eco-friendly refrigerant, this system requires no special tools or training, helping you save thousands on setup. The powerful condenser supports two 6,000 BTU air handlers (ideal for spaces up to 200 sq. ft. each) and one 18,000 BTU air handler (up to 550 sq. ft.), delivering year-round comfort with heating, cooling, and dehumidifying functions. Smart features include digital displays, troubleshooting alerts, remotes, and app control with Amazon Alexa and Google Home compatibility. Modes like Auto, Sleep, Dry, and Emergency Cooling give you flexible comfort options, while energy-saving functions such as the timer help reduce utility costs. With a 7-year compressor warranty (plus limited lifetime coverage) and a 5-year parts warranty, this MRCOOL DIY Multi-Zone system offers reliable, efficient, and customizable comfort for multiple rooms.

Features

  • Easy DIY® Installation

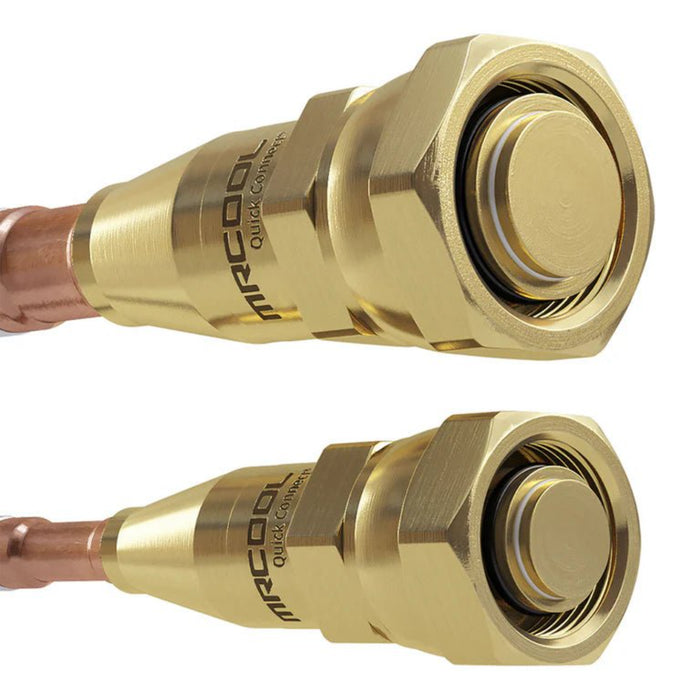

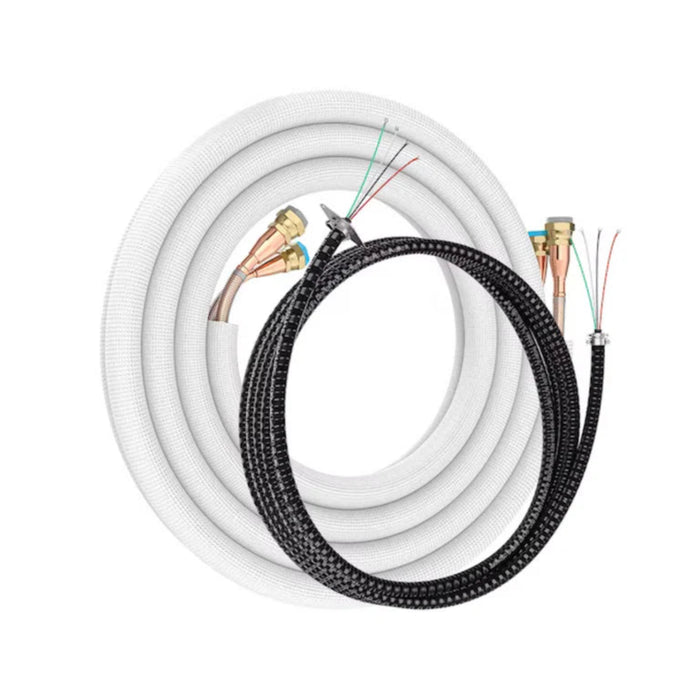

  • "Pre-charged DIY®
  • Quick Connect Line Set"
  • Simple to Use
  • Multi-room Comfort
  • Energy Efficient DC Inverter
  • 100% Sealed System

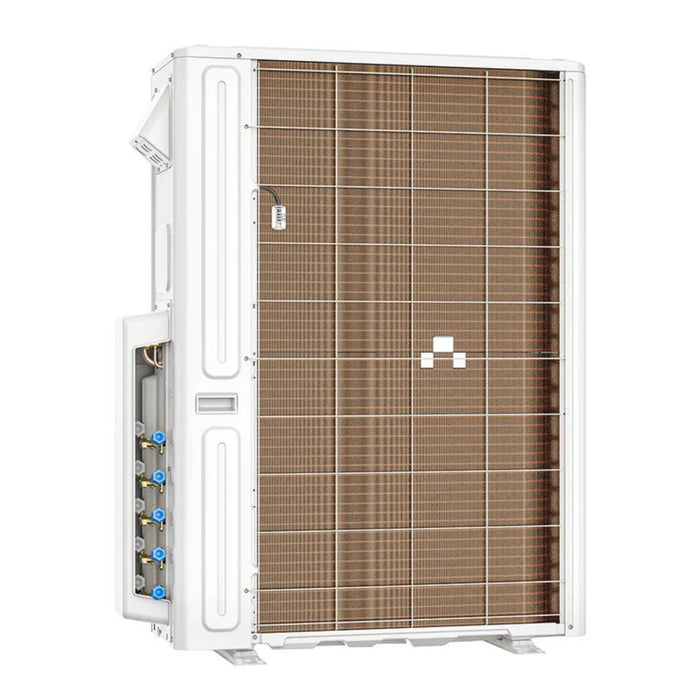

  • Gold Fin® Condenser
  • Eco Safe R-454B Refrigerant
  • Smartphone App Controls
  • Lifetime Technical Support
  • Follow Me® Feature
  • Low Ambient Cooling

Specifications

BRAND NAME MRCOOL
SERIES
DIY 5th Gen Multi-Zone
MODEL
DIY-MULTI5-36HP230D-O
GTIN 840255587464
UPC 840255587464
UNIT TYPE Mini-Split
SHORT DESCRIPTION MRCOOL® 36k DIY 5th Generation 5 Zone Multi-Zone Mini-Split Condenser 230v
SEER 22
SEER2 22
EER 12
EER2 12
HSPF-4 10.3
HSPF-5 8.2
CFM 2129.41
COOLING CAPACITY (BTU) 27000
HEATING CAPACITY (BTU) 27000
VOLTAGE (V) 208-230
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 40
MIN CIRCUIT AMPACITY (A) 26
COLOR White
COLOR FAMILY White
ZONE CAPACITY Up to 3
REFRIGERANT TYPE R-454B
REFRIGERANT VOLUME (OZ) 91.71
DECIBEL RATING (DBA) 61
INVERTER Yes
MIN AMBIENT COOL (F) 5 ~ 122
MIN AMBIENT HEAT (F) -13 ~ 75.2
MAX LINESET LENGTH (FT) 172 TOTAL
LIQUID LINE SIZE 1/4
SUCTION LINE SIZE 1/2
COMPRESSOR MOTOR TYPE Twin - Rotary
CONDENSER FAN MOTOR RPM 1050/900/850
WIFI COMPATIBILITY Yes
APP COMPATIBILITY Yes
WORKS WITH IOS Yes
WORKS WITH ANDROID Yes
REGISTERED WARRANTY
Limited Lifetime Compressor
BASE WARRANTY
5-year Parts/7-year Compressor
BASE PARTS WARRANTY 5-year Parts
REGISTERED COMPRESSOR WARRANTY
Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY
7-year Compressor
CONTAINS ELECTRONICS Yes
CONTAINS CHEMICALS Yes
CONTAINS AEROSOL Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
NET DEPTH (IN) 16.14
NET HEIGHT (IN) 31.89
NET WIDTH (IN) 37.24
NET WEIGHT (LBS) 139.99
GROSS DEPTH (IN) 19.88
GROSS HEIGHT (IN) 35.04
GROSS WIDTH (IN) 42.91
GROSS WEIGHT (LBS) 157

Owner's Manual

All MRCOOL non DIY products are to be installed in accordance with the manufacturer's installation methods and recommendations by a licensed HVAC-R/electrical/plumbing technician, as required. Failure to do so, may result in voiding the manufacturer's warranty.”
