MRCOOL - DIY 5th Generation - 48,000 BTU 3-Zone Mini Split Air Conditioner and Heat Pump - SEER2 22 - (12K + 18K + 24K) - 230V

Can't find what you're looking for? Contact our Experts Today! We have over 10,000 UNITS available on hand!

MRCOOL - DIY 5th Generation - 48,000 BTU 3-Zone Mini Split Air Conditioner and Heat Pump - SEER2 22 - (12K + 18K + 24K) - 230V

Name: MRCOOL - DIY 5th Generation - 48,000 BTU 3-Zone Mini Split Air Conditioner and Heat Pump - SEER2 22 - (12K + 18K + 24K) - 230V
Brand: MRCOOL
SKU: DIYM348121824
Price: 6550.0 USD
Availability: InStock

by MRCOOL

SKU DIYM348121824

PRICE MATCH GUARANTEE*: Found A Better Price? We'll Beat It! 877-606-9202 *Excludes ACIQ and MRCOOL Products.

EASY RETURNS: 30 Days Return Policy*

NO SALES TAX IN 48 STATES!

FREE SHIPPING: Free Shipping On Most Products!

TRADE & VOLUME DISCOUNTS: Call / Email or Chat for Details!

ADD TO CART FOR INSTANT SAVINGS!

$6,550.00

Quantity

The MRCOOL DIY Multi-Zone 5th Generation 48,000 BTU 21.8 SEER2 Three-Zone Ductless Mini Split – 12K + 18K + 24K delivers versatile heating and cooling for three rooms with easy DIY installation requiring no special tools or training. This system includes two 12K air handlers covering 550 sq. ft. each and one 24K air handler covering 1,100 sq. ft., powered by the 48K condenser for year-round comfort. Quick Connect lines pre-charged with eco-friendly R-454B refrigerant make setup fast and eliminate the need for a professional HVAC technician. Control each unit with the included remotes, the MRCOOL Smart Controller app, or voice commands via Amazon Alexa and Google Home. Features include auto, dry, sleep, timer, mute mode, directional airflow, and diagnostic displays, allowing customized comfort and easy maintenance. Automatic filter cleaning alerts, low refrigerant notifications, and auto-restart after power outages ensure reliable performance. Backed by a 7-year compressor warranty (plus limited lifetime option) and 5-year parts warranty, this DIY ductless heat pump system provides a cost-effective, flexible solution for multi-zone climate control.

Features

Easy DIY® Installation

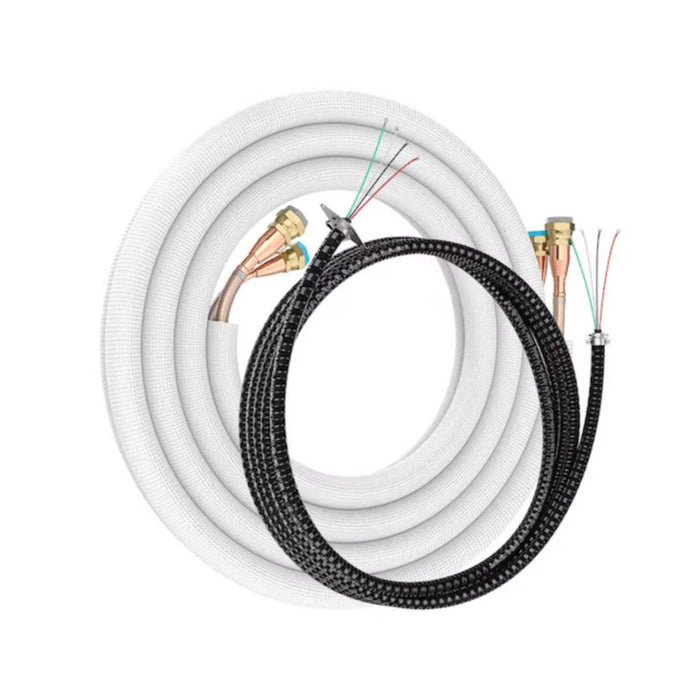

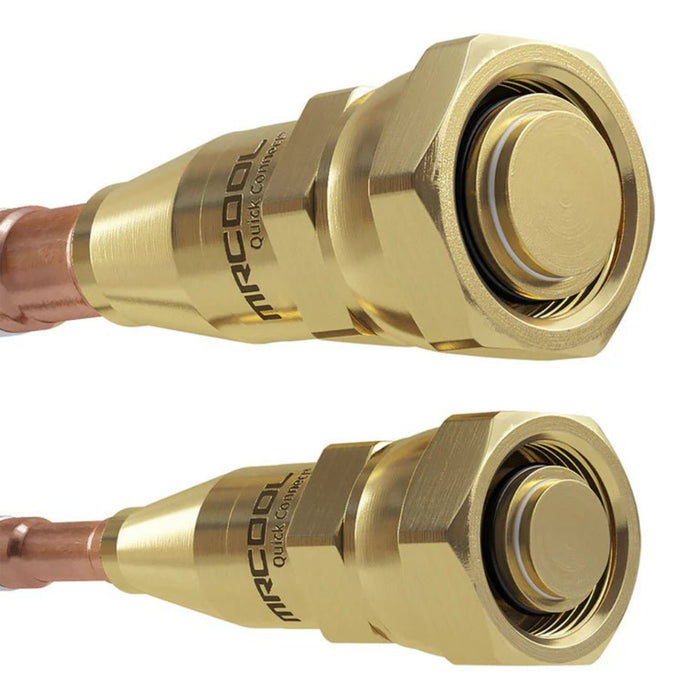

"Pre-charged DIY®
Quick Connect Line Set"
Simple to Use
Multi-room Comfort
Energy Efficient DC Inverter
100% Sealed System

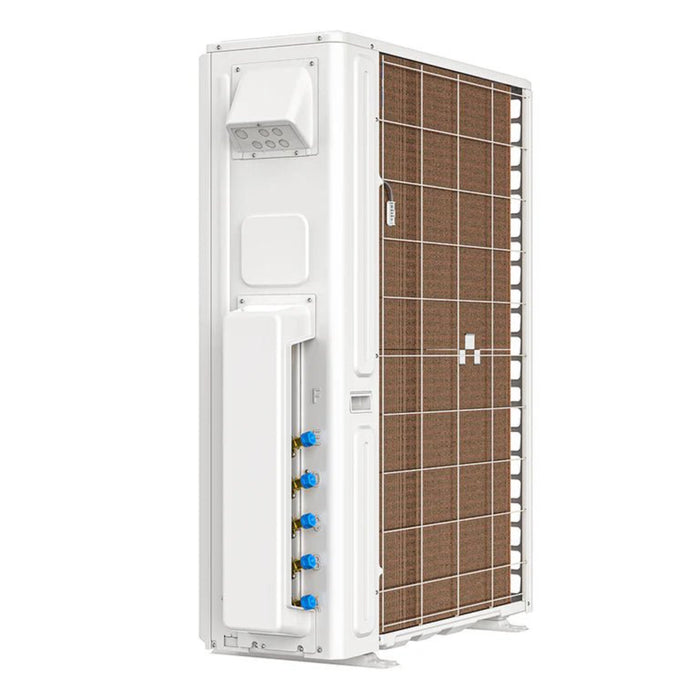

Gold Fin® Condenser
Eco Safe R-454B Refrigerant
Smartphone App Controls
Lifetime Technical Support
Follow Me® Feature
Low Ambient Cooling

Specifications

BRAND NAME	MRCOOL
SERIES	DIY 5th gen Multi-Zone Mini-splits
MODEL	DIY-MULTI6-48HP230D-O
GTIN	840255587471
UPC	840255587471
SEER2	21.8
EER2	12
HSPF2-4	10
HSPF2-5	7.8
TONNAGE	4
COOLING CAPACITY (BTU)	43000
HEATING CAPACITY (BTU)	48000
VOLTAGE (V)	208/230
PHASE	1
CYCLE	60
MAX FUSE BREAKER (A)	45
MIN CIRCUIT AMPACITY (A)	40
COLOR	White
ZONE CAPACITY	6
REFRIGERANT TYPE	R-454B
REFRIGERANT VOLUME (OZ)	148.15
DECIBEL RATING (DBA)	64
INVERTER	DC
LINE SET LENGTH	25
MAX LINESET LENGTH (FT)	221.4
LIQUID LINE SIZE	1/4
SUCTION LINE SIZE	(3/8 X4) (1/2 X2)
COMPRESSOR MOTOR TYPE	Rotary
AUXILIARY HEATER INCLUDED	No
AUXILIARY HEATER AVAILABLE	No
FAN ONLY OPTION	Yes
QUIET MODE	Yes
AUTO COOL	Yes
WIFI COMPATIBILITY	Yes
APP COMPATIBILITY	Yes
WORKS WITH IOS	Yes
WORKS WITH ANDROID	Yes
UL LISTED	Yes
ETL LISTED	Yes
ENERGY STAR CERTIFIED	Yes
AHRI CERTIFIED	Yes
REGISTERED WARRANTY	Extended Limited Lifetime*
BASE PARTS WARRANTY	5
BASE COMPRESSOR WARRANTY	7
HAS BATTERIES	Yes
CONTAINS ELECTRONICS	Yes
CONTAINS CHEMICALS	Yes
CONTAINS AEROSOL	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
NET DEPTH (IN)	16.34
NET HEIGHT (IN)	52.48
NET WIDTH (IN)	37.48
NET WEIGHT (LBS)	223.77
GROSS DEPTH (IN)	19.49
GROSS HEIGHT (IN)	58.27
GROSS WIDTH (IN)	43.11
GROSS WEIGHT (LBS)	256.39

Onwer's Manual

All MRCOOL non DIY products are to be installed in accordance with the manufacturer's installation methods and recommendations by a licensed HVAC-R/electrical/plumbing technician, as required. Failure to do so, may result in voiding the manufacturer's warranty.”
