MRCOOL - DIY 5th Generation- 55,000 BTU 6-Zone Ductless Mini Split AC and Heat Pump with Ceiling Cassettes - SEER 22 (12K + 12K + 12K + 12K + 12K + 12K) - 230V

Can't find what you're looking for? Contact our Experts Today! We have over 10,000 UNITS available on hand!

MRCOOL - DIY 5th Generation- 55,000 BTU 6-Zone Ductless Mini Split AC and Heat Pump with Ceiling Cassettes - SEER 22 (12K + 12K + 12K + 12K + 12K + 12K) - 230V

Name: MRCOOL - DIY 5th Generation- 55,000 BTU 6-Zone Ductless Mini Split AC and Heat Pump with Ceiling Cassettes - SEER 22 (12K + 12K + 12K + 12K + 12K + 12K) - 230V
Brand: MRCOOL
SKU: DIYM655121212121212-CC
Price: 12335.0 USD
Availability: InStock

by MRCOOL

SKU DIYM655121212121212-CC

PRICE MATCH GUARANTEE*: Found A Better Price? We'll Beat It! 877-606-9202 *Excludes ACIQ and MRCOOL Products.

EASY RETURNS: 30 Days Return Policy*

NO SALES TAX IN 48 STATES!

FREE SHIPPING: Free Shipping On Most Products!

TRADE & VOLUME DISCOUNTS: Call / Email or Chat for Details!

ADD TO CART FOR INSTANT SAVINGS!

$12,335.00

Quantity

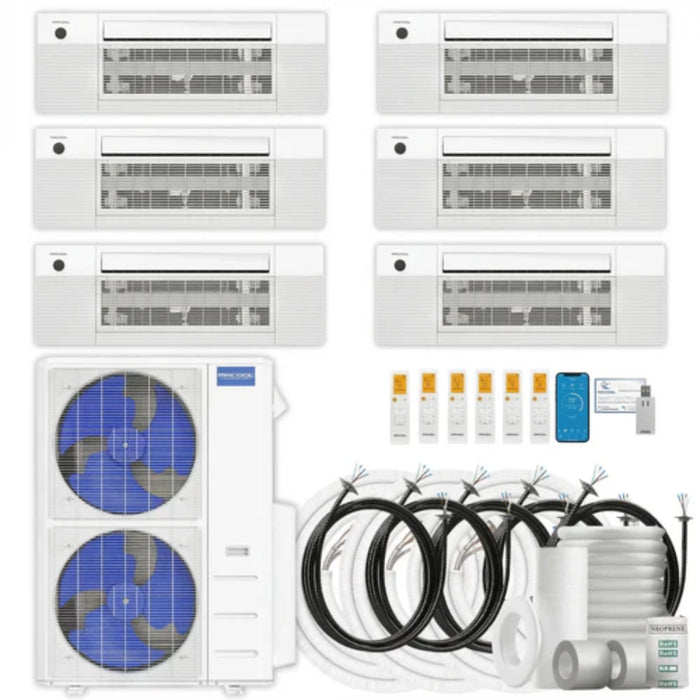

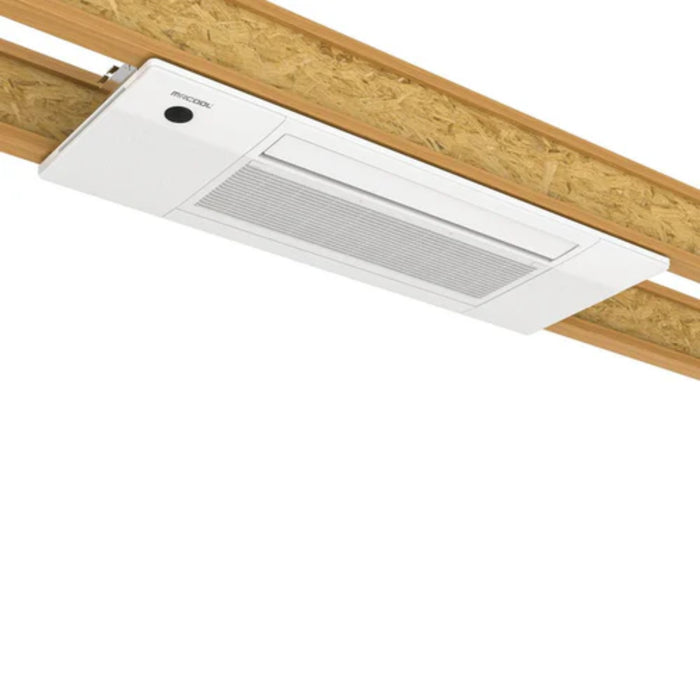

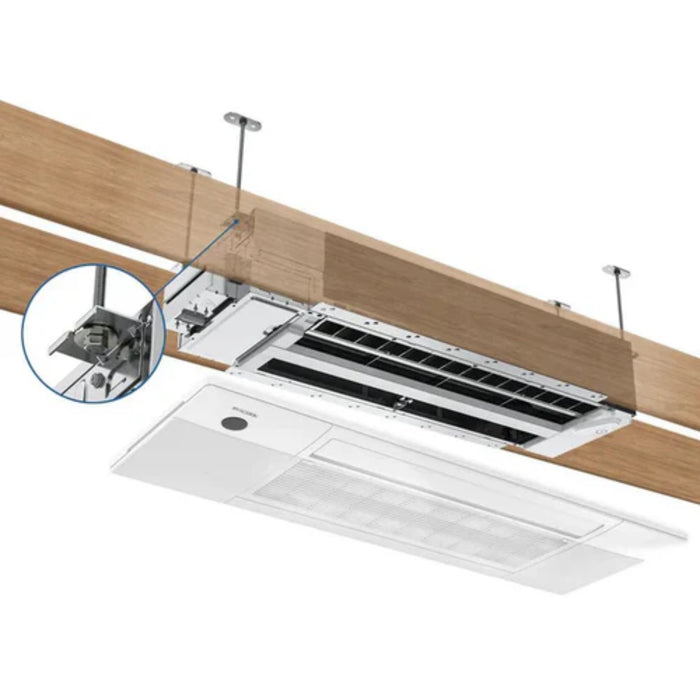

The MRCOOL DIY 5th Gen 55,000 BTU 6-Zone Mini-Split with ceiling cassettes (12K + 12K + 12K + 12K + 12K + 12K) heats and cools six rooms efficiently. Each 12K BTU zone provides precise comfort, ideal for bedrooms, living rooms, offices, or open spaces. The 55,000 BTU condenser powers all zones, delivering balanced temperatures while saving energy. This ductless heat pump system reverses to pull heat from outdoors during winter, cutting heating costs. Ceiling cassettes are low-profile and recessed between standard 16-inch joists, keeping walls free and providing a clean, modern look. The DIY setup uses Quick Connect pre-charged line sets, requiring no special tools or professional installation, saving thousands on setup. Multiple operating modes and quiet performance ensure comfort without noise. The Elevation function lowers the filter panel for easy cleaning, making maintenance simple. Flexible placement requires no ductwork, perfect for retrofits or new construction. With a 7-year compressor warranty, optional lifetime coverage, and a 5-year parts warranty, this system combines convenience, energy efficiency, and reliable climate control for whole-home comfort. It’s a smart choice for homeowners who want customizable, powerful heating and cooling in one easy-to-install package.

Features

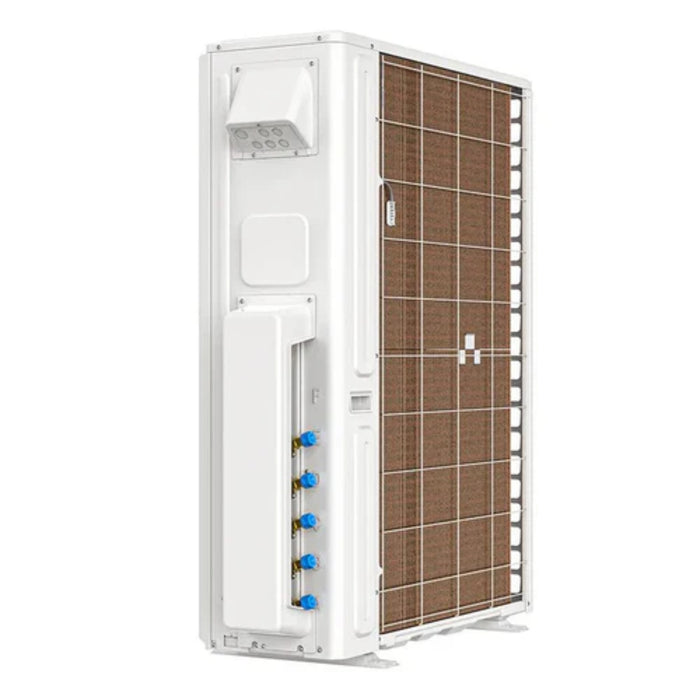

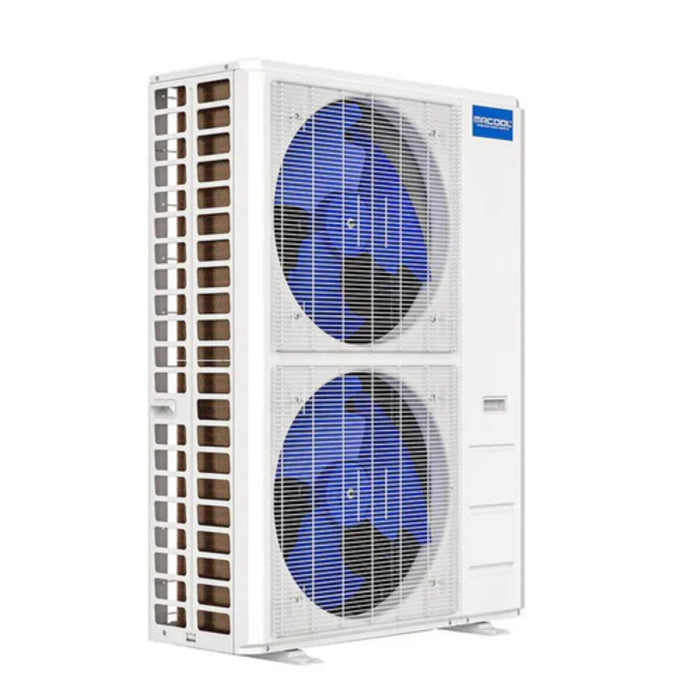

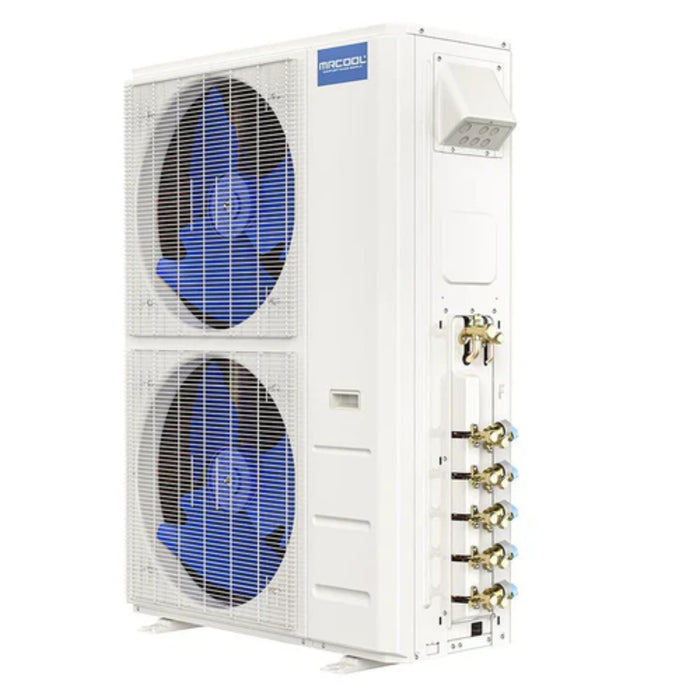

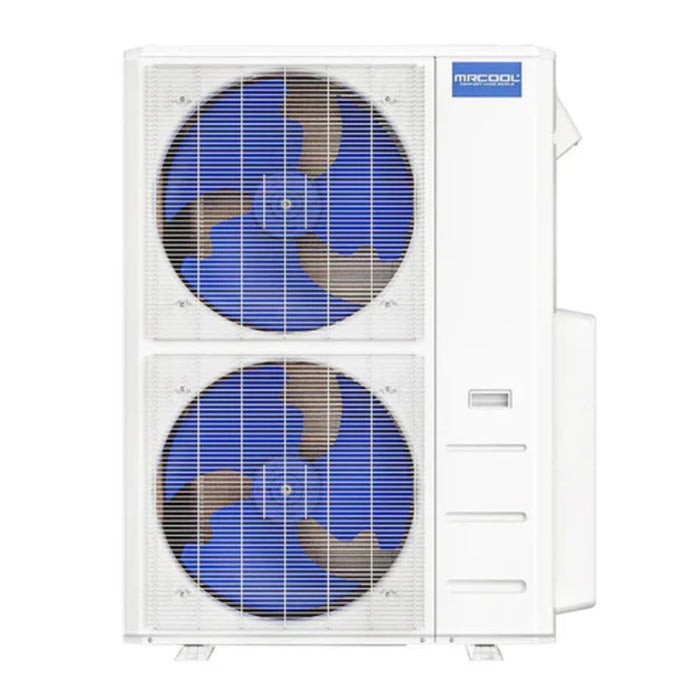

Includes six indoor zones with a single 55K condenser
Compatible with 6K, 9K, 12K, and 18K ceiling cassette units
21.5 SEER2 energy efficiency for lower utility bills
Ideal for large homes, offices, shops, or multi-room spaces

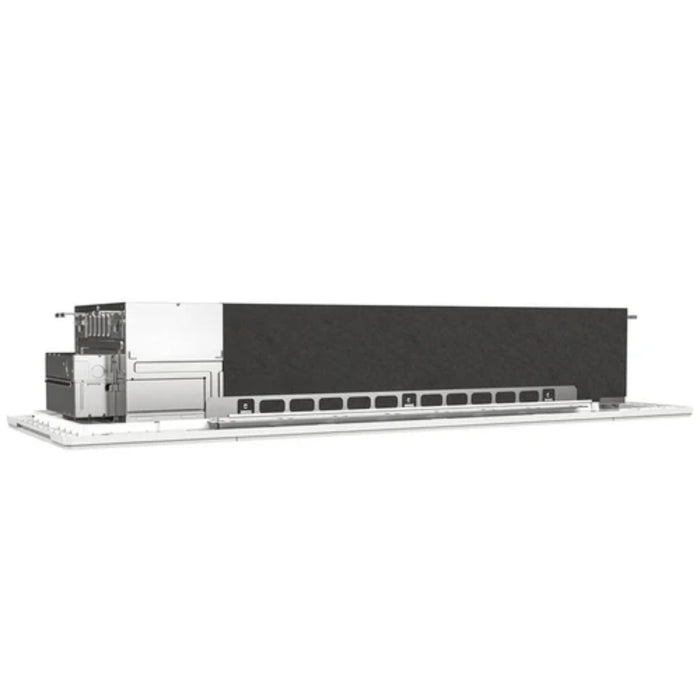

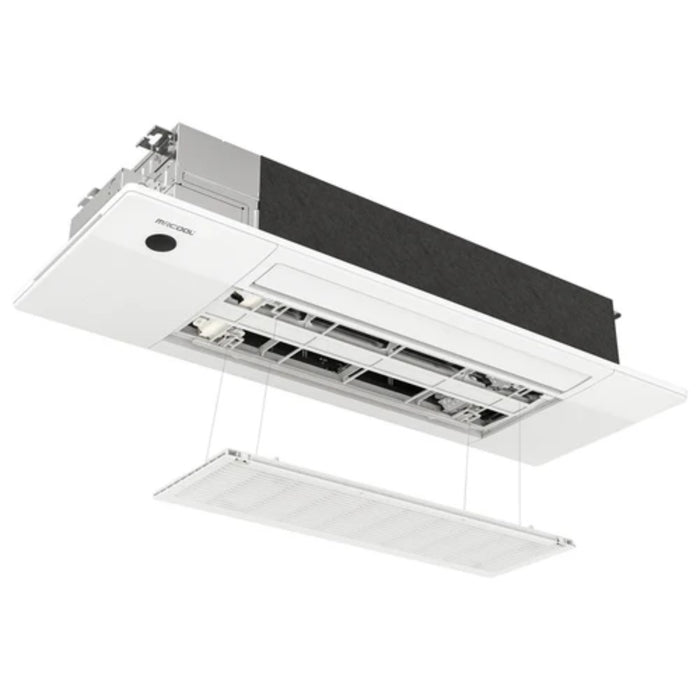

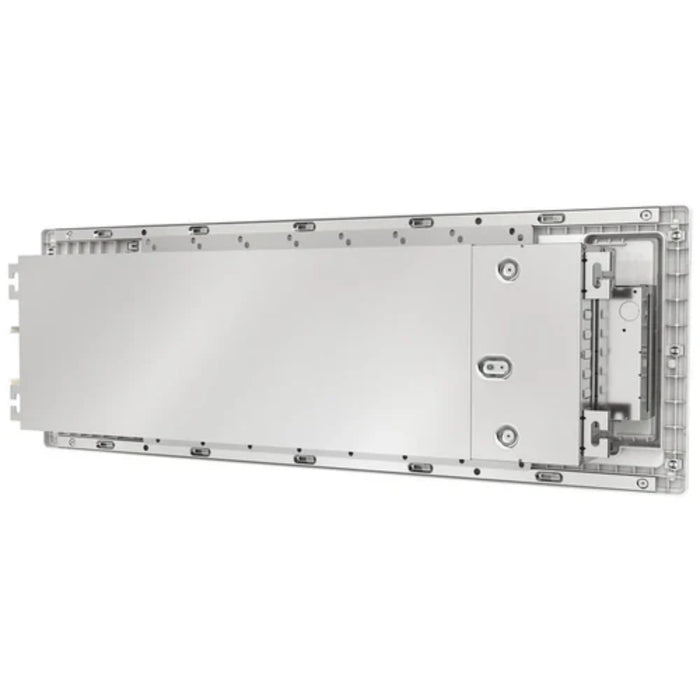

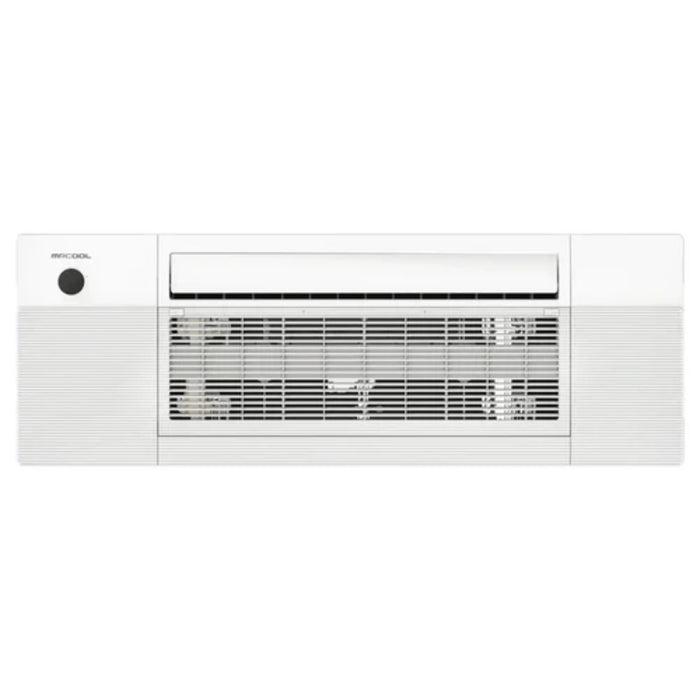

Flush-mounted ceiling cassettes blend seamlessly into any décor

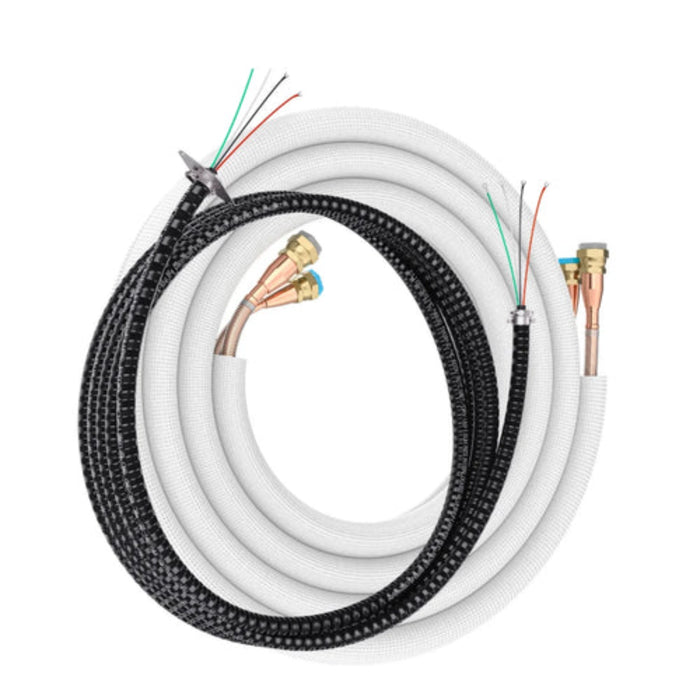

DIY installation with included quick-connect fittings
Operates in extreme temperatures: heats to -13°F, cools to 122°F

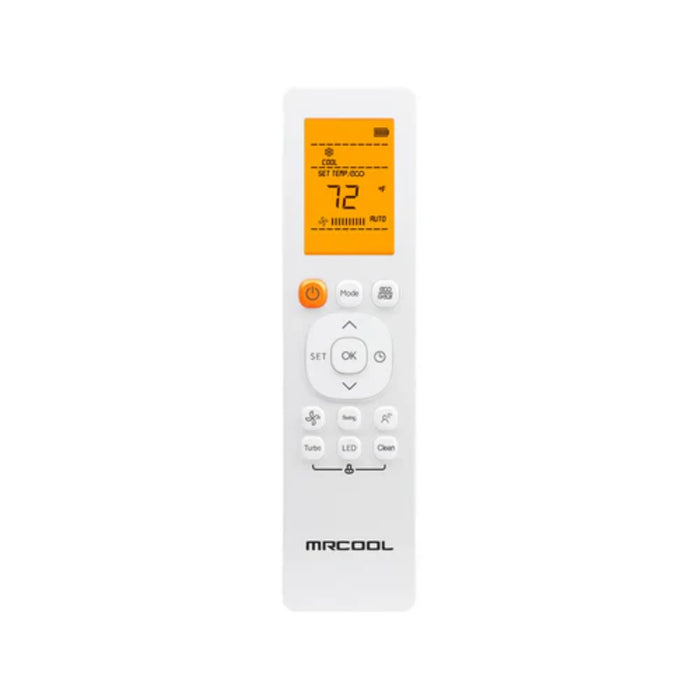

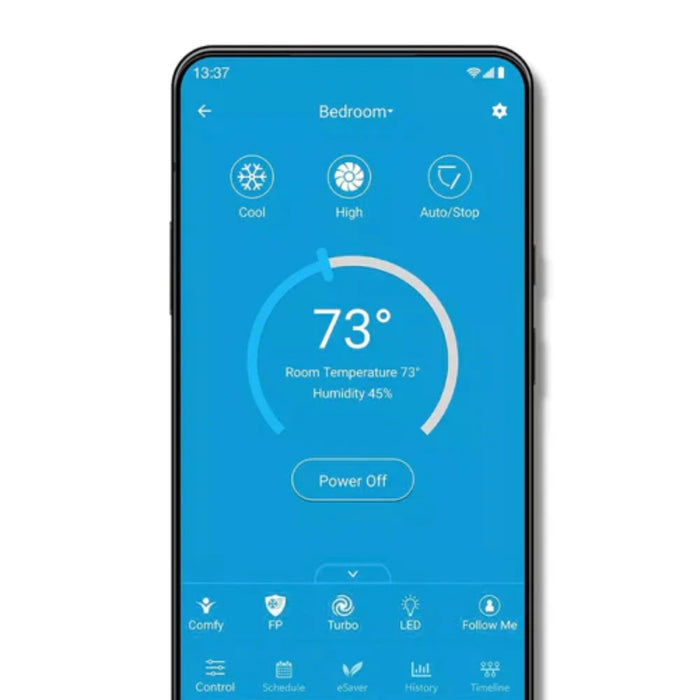

App, Alexa, and Google Assistant smart control integration
Corrosion-resistant Gold Fin® condenser coating
Backed by 5-year parts and 7-year compressor warranty

Specifications

BRAND NAME	MRCOOL
SERIES	DIY 5th gen Multi-Zone Mini-splits
MODEL	DIY-MULTI6-55HP230D-O
GTIN	840255587488
UPC	840255587488
SEER2	22
EER2	12
HSPF2-4	10.6
HSPF2-5	8.5
TONNAGE	4.6
COOLING CAPACITY (BTU)	47000
HEATING CAPACITY (BTU)	55000
VOLTAGE (V)	208/230
PHASE	1
CYCLE	60
MAX FUSE BREAKER (A)	45
MIN CIRCUIT AMPACITY (A)	43
COLOR	White
ZONE CAPACITY	6
REFRIGERANT TYPE	R-454B
REFRIGERANT VOLUME (OZ)	151.68
DECIBEL RATING (DBA)	64
INVERTER	DC
LINE SET LENGTH	25
MAX LINESET LENGTH (FT)	221.4
LIQUID LINE SIZE	1/4
SUCTION LINE SIZE	(3/8 X4) (1/2 X2)
COMPRESSOR MOTOR TYPE	Rotary
AUXILIARY HEATER INCLUDED	No
AUXILIARY HEATER AVAILABLE	No
FAN ONLY OPTION	Yes
QUIET MODE	Yes
AUTO COOL	Yes
WIFI COMPATIBILITY	Yes
APP COMPATIBILITY	Yes
WORKS WITH IOS	Yes
WORKS WITH ANDROID	Yes
UL LISTED	Yes
ETL LISTED	Yes
ENERGY STAR CERTIFIED	Yes
AHRI CERTIFIED	Yes
REGISTERED WARRANTY	Extended Limited Lifetime*
BASE PARTS WARRANTY	5
BASE COMPRESSOR WARRANTY	7
HAS BATTERIES	Yes
CONTAINS ELECTRONICS	Yes
CONTAINS CHEMICALS	Yes
CONTAINS AEROSOL	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
NET DEPTH (IN)	16.34
NET HEIGHT (IN)	52.48
NET WIDTH (IN)	37.48
NET WEIGHT (LBS)	245.81
GROSS DEPTH (IN)	19.49
GROSS HEIGHT (IN)	58.27
GROSS WIDTH (IN)	43.11
GROSS WEIGHT (LBS)	267.46

Owner's Manual

All MRCOOL non DIY products are to be installed in accordance with the manufacturer's installation methods and recommendations by a licensed HVAC-R/electrical/plumbing technician, as required. Failure to do so, may result in voiding the manufacturer's warranty.”
