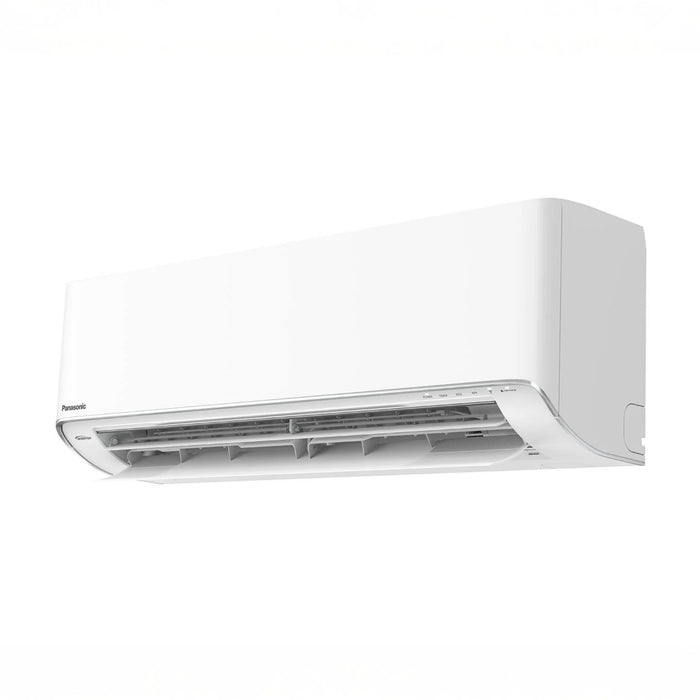

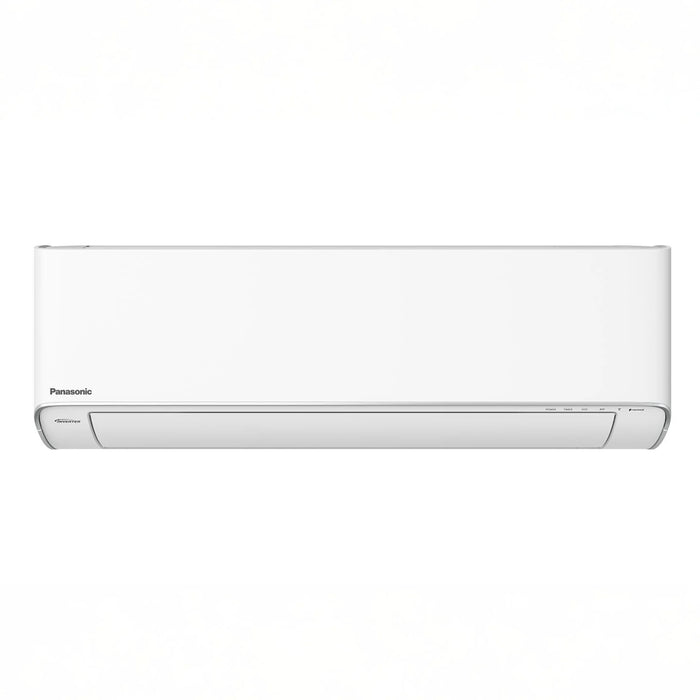

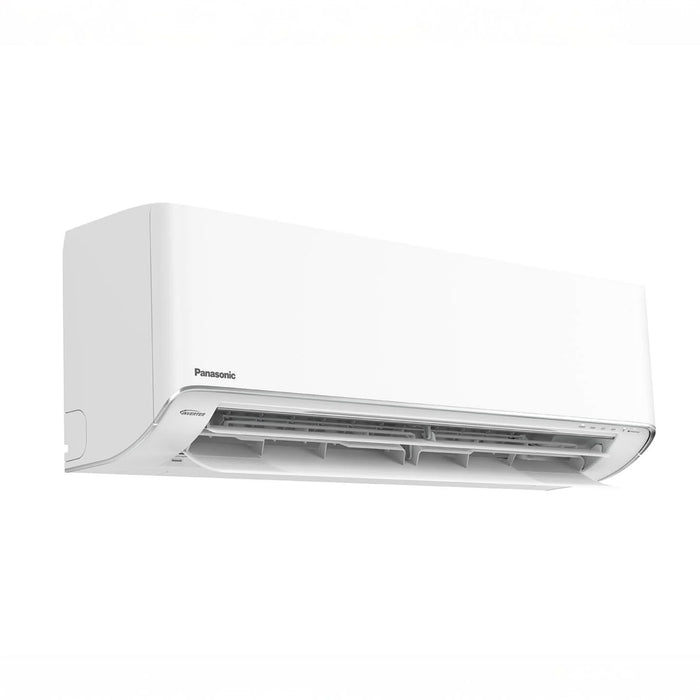

Ductless heating and air conditioning systems provide optimal comfort along with the reduced energy consumption that comes with zoned temperature control and R32 refrigerant. This 5,000 Btu Indoor wall mount unit was designed for multi-zone installations, in combination with one of the applicable multi-zone outdoor units. Please note this is an indoor unit only, for full system operation this needs to be paired with an outdoor unit.
Please note this is an indoor unit only, for full system operation this needs to be paired with an outdoor unit.
SKU | CS-MXZ5AKUA |
---|---|
Indoor unit | CS-MXZ5AKUA |
Outdoor Unit | Multi-Zone (CU-2Z18ABUC / CU-3Z22ABUC) |
Capacity Cooling (Btu/h) / KW | 5,500 (4,400 - 7,800) / 1.62 KW |
Capacity Heating (Btu/h) / KW | 8,900 (4,100 - 10,900) / 2.61 KW |
Moisture Removal - High (pints/H) | 0.6 |
Indoor Air Flow - Cool / Heat (High) | 405 / 405 CFM |
Power Supply (V, Phase, Hz) | 208 / 230V, Single Phase, 60Hz |
Power Input - Cooling (W) | 350 (250 - 470) |
Power Input - Heating (W) | 640 (300 - 910) |
Dimensions (indoor) (H x W x D) | 11-5/8" x 34-9/32" x 9-1/32" (295 x 870 x 229 mm) |
Weight | 22 lbs (10 kg) |
