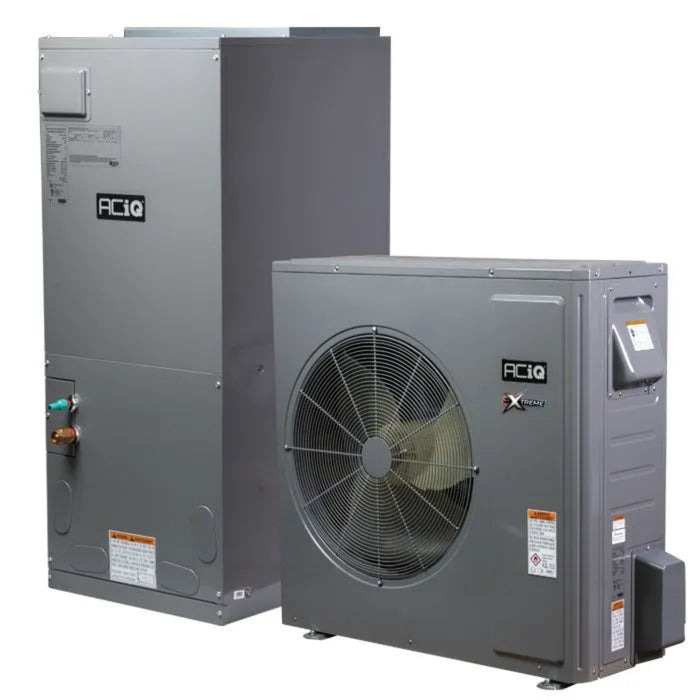

ACiQ - 2 Ton/24,000 BTU High Efficiency Central Heat Pump System Inverter Extreme Series - 18 SEER2 - R32 - 230V
ADD TO CART FOR INSTANT SAVINGS!
ADD TO CART FOR INSTANT SAVINGS!
The ACiQ-24-HP32 / ACiQ-24-AH32 system features advanced sensors that monitor indoor and outdoor air temperature, system performance, duct pressure, and refrigerant temperature. During initial startup, it enters a learning mode, maintaining airflow across the sensors and storing critical data to optimize future startups and run cycles for maximum efficiency. Thanks to its self-adjusting inverter design, the ACiQ-24-HP32 / ACiQ-24-AH32 can be sized based on heat demand. Unlike traditional heat pumps that can cause excessive humidity in summer when sized for heating, this system intelligently adjusts to function like a smaller unit, delivering optimal cooling and dehumidification.
Variable Output: 12,000 – 30,000 BTU based on demand
Type: Inverter heat pump system for ducted setups
Cooling Performance: Reliable operation from 5°F to 129°F outdoor temperature
Heating Performance: Efficient from -22°F to 75°F outdoor temperature
Durability: Gold Fin condenser coil coating resists corrosion
Sound: Quiet operation even under load

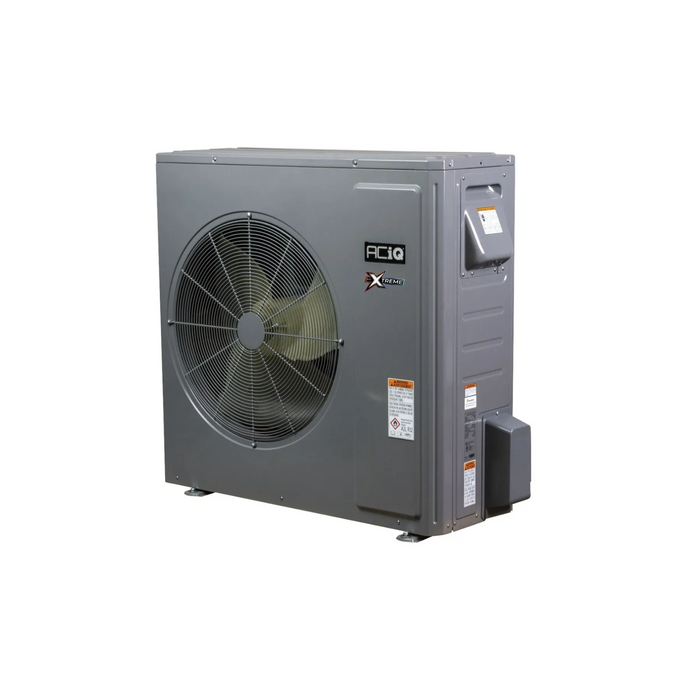

| ACiQ 2 Ton 18 SEER2 High Efficiency Central Heat Pump | Inverter | Extreme Series | R32 | |
|---|---|
| SKU | ACIQ-24-HP32 |
| Weight | 144.400000 |
| Manufacturer | ACiQ |
| Product Features | Inverter, Low Ambient Heating, Two Stage Condenser, Variable Speed Condenser |
| HSPF2 | 10 |
| Cooling BTU | 24000 BTU |
| Heating BTU | 24000 BTU |
| Maximum CFM | 3176 |
| Decibel Level (dBA) | 70 (Max) |
| Electric Heat | Heat Pump |
| Refrigerant | R32 |
| SEER2 | 18 |
| Condenser Stages | Variable Speed |
| Compressor Type | Rotary |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Electrical | 208/230V 1 Phase 60 Hz |
| Tonnage | 2 Ton |
| BTU/Tonnage | 24,000 BTU/2 Ton |
| Min/Max Outdoor Temp for Heating | -22 ~75 |
| Min/Max Outdoor Temp for Cooling | 5~129 |
| Zone Compatibility | Single Zone |
| Height | 37.5" |
| Width | 39" |
| Depth | 14.57" |
| Warranty | 12 year compressor, 7 year parts with online registration |

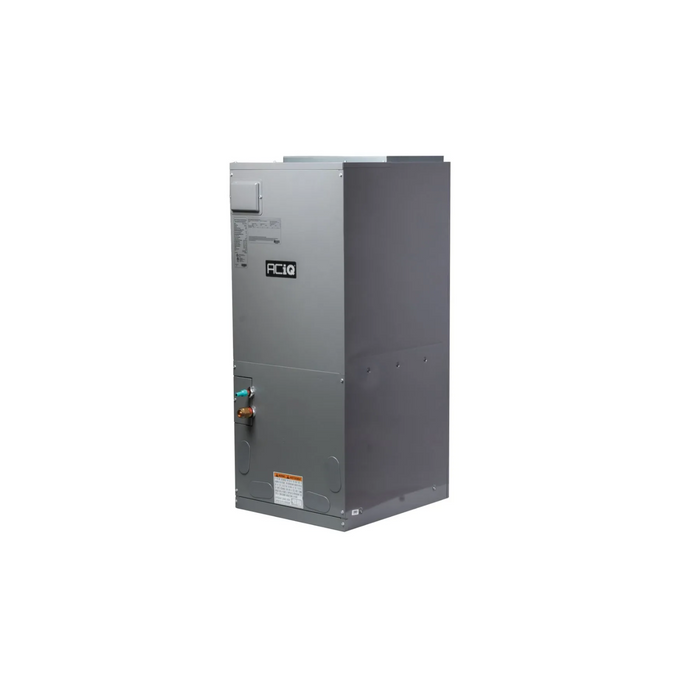

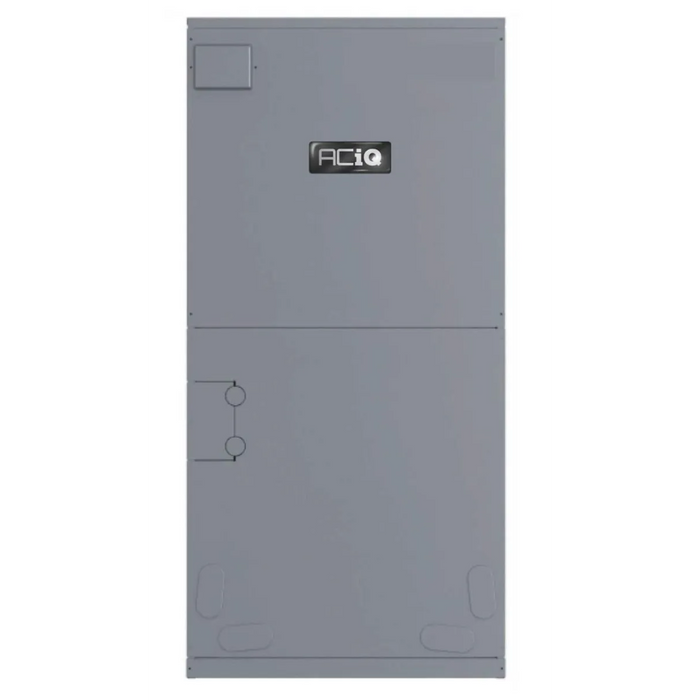

| 2 Ton ACiQ Central Air Handler | R32 | |
| SKU | ACIQ-24-AH32 |
| Weight | 144.400000 |
| AHRI Certificate Number | 215387238 |
| Manufacturer | ACiQ |
| HSPF2 | 10.0 |
| Cooling BTU | 24000 BTU |
| Heating BTU | 24000 BTU |
| Maximum CFM | 760 |
| Decibel Level (dBA) | 60 (Max) |
| Electric Heat | Heat Pump |
| Refrigerant | R32 |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Electrical | 208/230V 1 Phase 60 Hz |
| Max Breaker Size | 15 |
| Min. Breaker Size | 5 |
| Tonnage Bundle | 3.5 Ton |
| BTU/Tonnage | 42,000 BTU/3.5 Ton |
| Mini Split Type | Multi-Positional |
| Min/Max Outdoor Temp for Heating | 5~75 |
| Min/Max Outdoor Temp for Cooling | 5-118 |
| Zone Compatibility | Single Zone |
| Height | 43.5" |
| Width | 21.25" |
| Depth | 21.25" |
| Warranty | 12 year compressor, 7 year parts with online registration |
