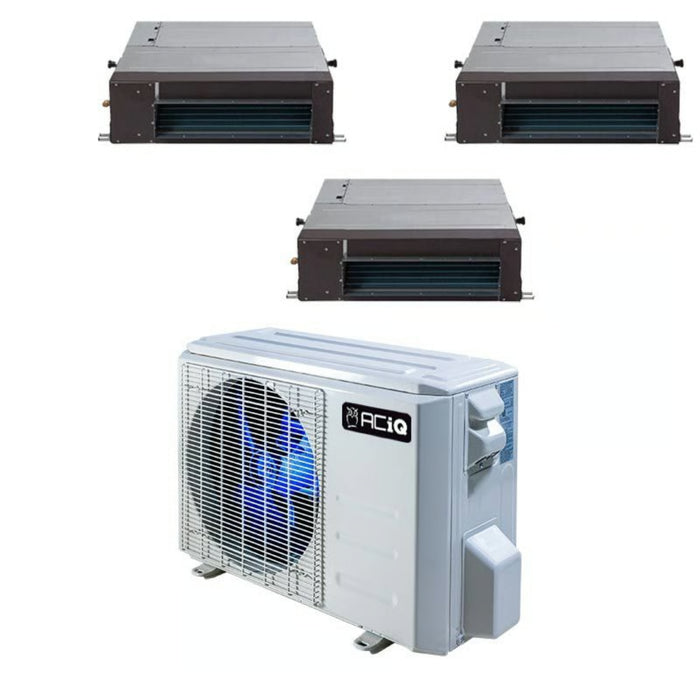

ACiQ - 27,000 BTU - 3 Zone Concealed Duct Mini Split Heat Pump System (9+9+12) - 25 SEER2 - R454B - 230V
ADD TO CART FOR INSTANT SAVINGS!
ADD TO CART FOR INSTANT SAVINGS!
ACiQ's Energy Star multi zone mini split systems are designed to give you maximum efficiency at a lower cost than the Max Heat models. The ES-27Z-M3/ACIQ-09CD-HH-M-2/ACIQ-12CD-HH-M Energy Star system provides heat down to -13 degrees and cooling as high as 122 degrees outside temperatures, all at a very competitive price.

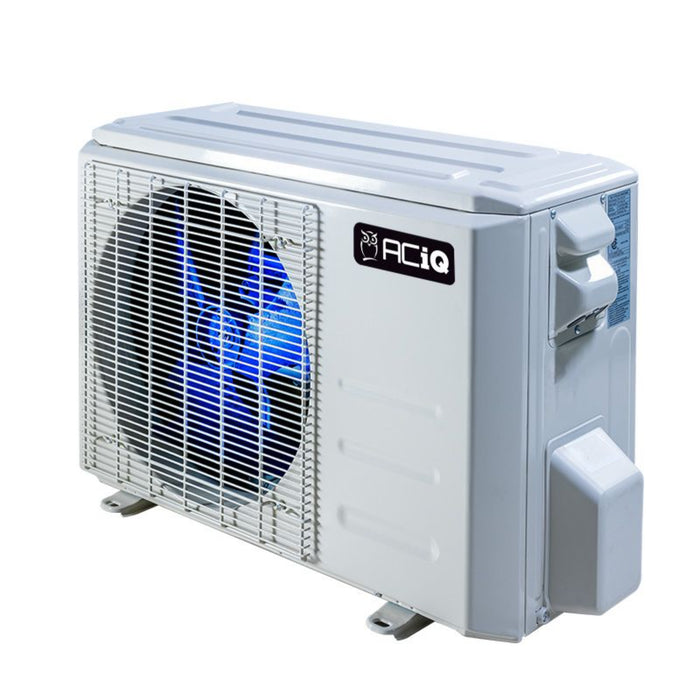

| 27,000 BTU ACiQ Multi Zone Condenser - Inverter - R454B | |
|---|---|
| SKU | ES-27Z-M4C |
| Refrigerant Charge | 98.4' |
| Weight (in lbs) | 149.690000 |
| AHRI Certificate Number | 216032379 |
| Brand/Manufacturer | ACiQ |
| Replaces | ES-27Z-M3B |
| HSPF2 | 9.5 |
| Cooling BTU | 27000 BTU |
| Heating BTU | 27000 BTU |
| Maximum CFM | 2131 |
| Decibel Level (dBA) | 61 |
| Electric Heat | Heat Pump |
| Energy Star | Yes |
| Refrigerant | R454B |
| SEER2 (Efficiency) | 25 |
| Compressor Type | Rotary |
| Liquid Line | 1/4" (4) |
| Suction Line | 3/8" (3); 1/2" (1) |
| Electrical | 208/230V 1 Phase 60 Hz |
| Max Breaker Size | 25 A |
| Min. Breaker Size | 23 A |
| Tonnage | 2 Ton to 2.5 Ton |
| BTU/Tonnage | 27,000 BTU/2.25 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Multi Zone |
| Ambient Temperature Range | -13 ~ 122 |
| Height | 31.89" |
| Width | 37.24" |
| Depth | 16.14" |
| Warranty | 12 year compressor, 7 year parts with online registration |
| SKU | ACIQ-09CD-HH-MC |
| Weight | 80.250000 |
| Manufacturer | ACiQ |
| Cooling BTU | 9,000 BTU |
| Heating BTU | 10,000 BTU |
| Maximum CFM | 352.94 |
| Decibel Level (dBA) | As low as 27 |
| Electric Heat | Heat Pump |
| Refrigerant | R410A |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical | 208/230V 1 Phase 60Hz |
| Electric Phase Filter | Single Phase |
| Max Breaker Size | 15 |
| Min. Breaker Size | 15 |
| BTU/Tonnage | 9,000 BTU/0.75 Ton |
| Mini Split Type | Concealed Duct |
| Zone Compatibility | Multi Zone |
| Length | 27.56" |
| Height | 7.87" |
| Depth | 19.92" |
| Warranty | 12 year compressor, 7 year parts with online registration |

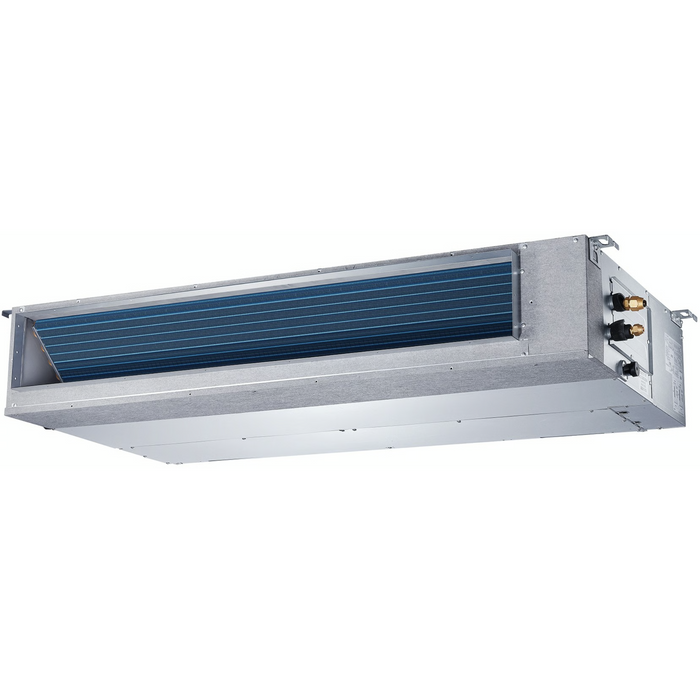

| 12,000 BTU Concealed Duct ACiQ Mini Split Air Handler | |
| SKU | ACIQ-12CD-HH-MC |
| Weight | 48.500000 |
| Manufacturer | ACiQ |
| Cooling BTU | 12,000 BTU |
| Heating BTU | 12,000 BTU |
| Maximum CFM | 352.94 |
| Decibel Level (dBA) | As low as 26.5 |
| Electric Heat | Heat Pump |
| Refrigerant | R410A |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 208/230V 1 Phase 60Hz |
| Electric Phase Filter | Single Phase |
| Max Breaker Size | 15 |
| Min. Breaker Size | 15 |
| BTU/Tonnage | 12,000 BTU/1 Ton |
| Mini Split Type | Concealed Duct |
| Zone Compatibility | Multi Zone |
| Length | 27.56" |
| Height | 7.87" |
| Depth | 19.92" |
| Warranty | 12 year compressor, 7 year parts with online registration |
