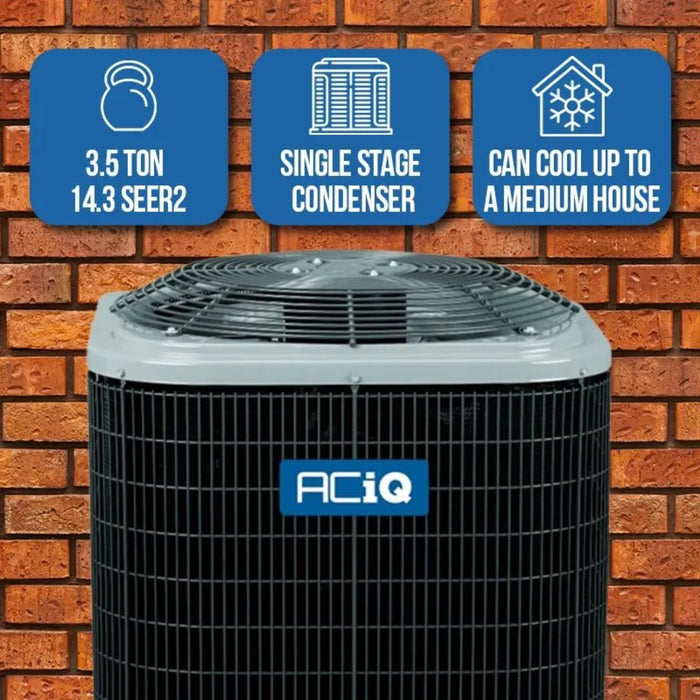

ACiQ - 3.5 Ton/42,000 BTU Heat Pump Condenser - 14.3 SEER2 - R454B - 230V
ADD TO CART FOR INSTANT SAVINGS!
ADD TO CART FOR INSTANT SAVINGS!
The ACiQ R5H5S42AKAAA is a standard heat pump condenser. Designed with comfort in mind and an inexpensive option for nearly any application, this condenser is considered a good all-around option for almost any application.
| 3.5 Ton 14.3 SEER2 ACiQ Heat Pump - R454B | |
|---|---|
| SKU | R5H5S42AKAAA |
| Refrigerant Charge | 15' |
| Weight (in lbs) | 223.000000 |
| Brand/Manufacturer | ACiQ |
| Replaces | R4H5S |
| Product Features | New Refrigerant Compliant |
| HSPF2 | 7.5 |
| Cooling BTU | 42,000 |
| Heating BTU | 42,000 |
| Maximum CFM | 3000 |
| Decibel Level (dBA) | 76 |
| Motor RPM | 1100 |
| Horsepower | 1/5 HP |
| Refrigerant | R454B |
| SEER2 (Efficiency) | 14.3 |
| Condenser Stages | Single Stage |
| Compressor Type | Scroll |
| Liquid Valve Size | 3/8" |
| Suction Valve Size | 7/8" |
| Electrical | 208/230v 1Ph 60Hz |
| Max Breaker Size | 40 Amps |
| Min. Breaker Size | 24.9 Amps |
| Tonnage | 3.5 Ton |
| Height | 31 11/16" |
| Width | 31 3/16" |
| Depth | 31 3/16" |
| Warranty | 10 Year Parts Limited Warranty with Online Registration |
