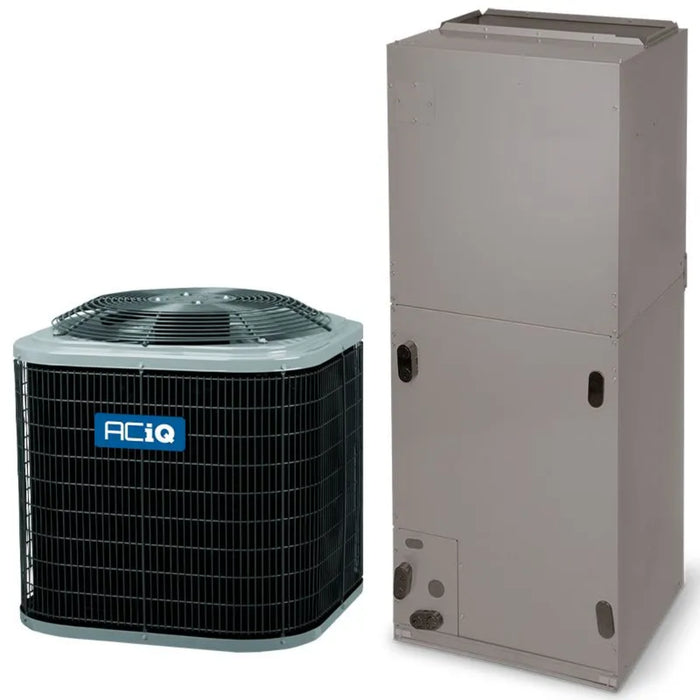

ACiQ - 3 Ton/36,000 BTU Heat Pump Split System | Multi-Positional - 15.2 SEER2 - R454B - 230V
ADD TO CART FOR INSTANT SAVINGS!
ADD TO CART FOR INSTANT SAVINGS!

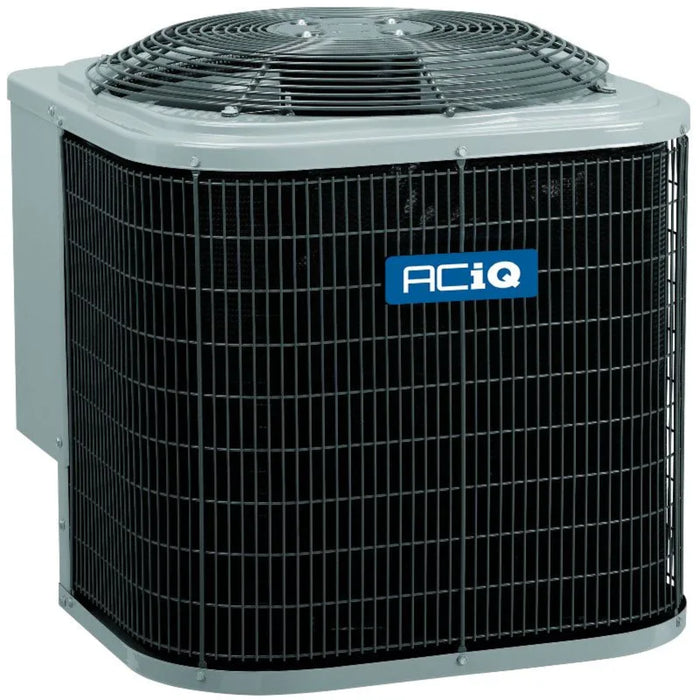

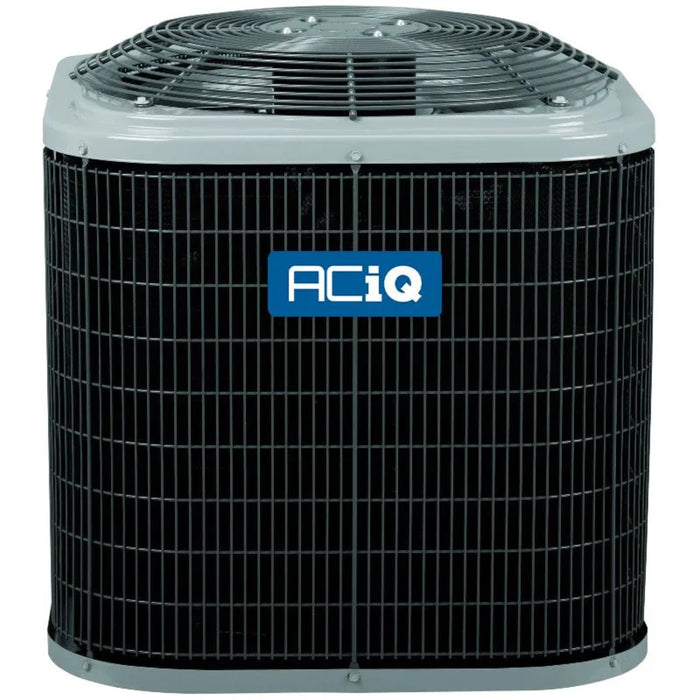

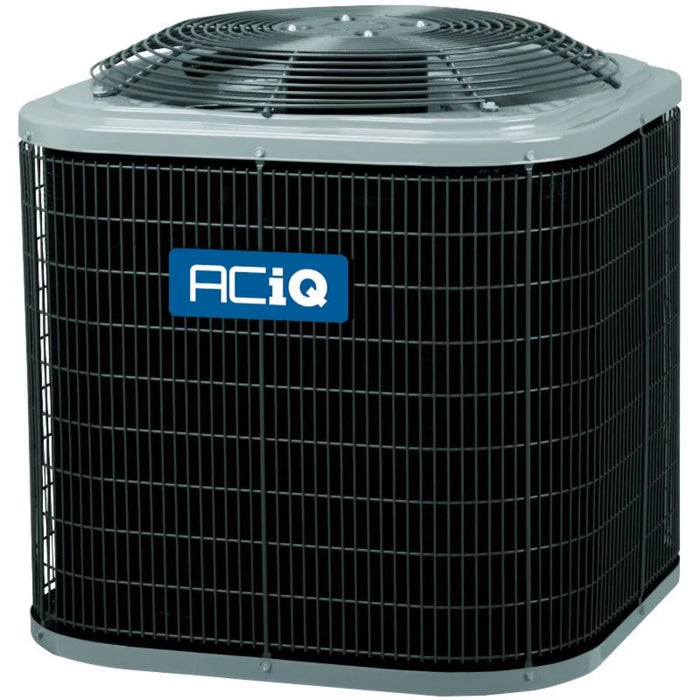

The ACiQ R5H5S36AKAAA is a standard heat pump condenser. Designed with comfort in mind and an inexpensive option for nearly any application, this condenser is considered a good all-around option for almost any application.
| 3 Ton 14.3 SEER2 ACiQ Heat Pump - R454B | |
|---|---|
| SKU | R5H5S36AKAAA |
| Refrigerant Charge | 15' |
| Weight | 192.000000 |
| Manufacturer | ACiQ |
| Replaces | R4H5S |
| Product Features | New Refrigerant Compliant |
| HSPF2 | 7.5 |
| Cooling BTU | 36,000 |
| Heating BTU | 36,000 |
| Maximum CFM | 3500 |
| Decibel Level (dBA) | 76 |
| Motor RPM | 825 |
| Horsepower | 1/4 HP |
| Refrigerant | R454B |
| SEER2 | 14.3 |
| Condenser Stages | Single Stage |
| Compressor Type | Scroll |
| Liquid Valve Size | 3/8" |
| Suction Valve Size | 3/4" |
| Electrical | 208/230v 1Ph 60Hz |
| Max Breaker Size | 30 Amps |
| Min. Breaker Size | 19.2 Amps |
| Tonnage | 3 Ton |
| Height | 31 11/16" |
| Width | 31 3/16" |
| Depth | 31 3/16" |
| Warranty | 10 Year Parts Limited Warranty with Online Registration |

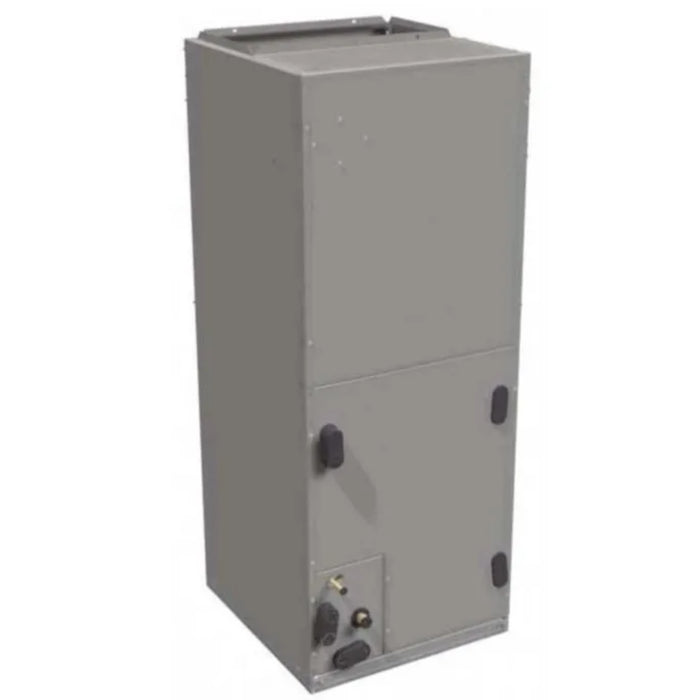

| 3.5 Ton 21" Width ACiQ Multi-Positional Air Handler - R454B | |
| SKU | FHMA5X42L0CA |
| Weight | 166.000000 |
| Manufacturer | ACiQ |
| Cooling BTU | 42,000 |
| Blower Motor | Multi-tap 5-Speed ECM |
| Maximum CFM | 1225 |
| Horsepower | 1/2 HP |
| Electric Backup Heat Capabilities (Optional) | 5 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts, 20 Kilowatts |
| Configuration | Multi-Positional |
| Refrigerant | R454B |
| Filter Size | 20" x 20" |
| Liquid Line | 3/8" |
| Suction Line | 7/8" |
| Electrical | 208/230v 1 Phase 60 Hz |
| Max Breaker Size | 15 Amps |
| Min. Breaker Size | 5.3 Amps |
| Tonnage | 3.5 Ton |
| Connection | Sweat |
| Height | 49 5/8" |
| Width | 21 1/8" |
| Depth | 22 1/16" |
| Warranty | 10 Years Parts and 5 Years No Hassle Replacement with Online Registration |
