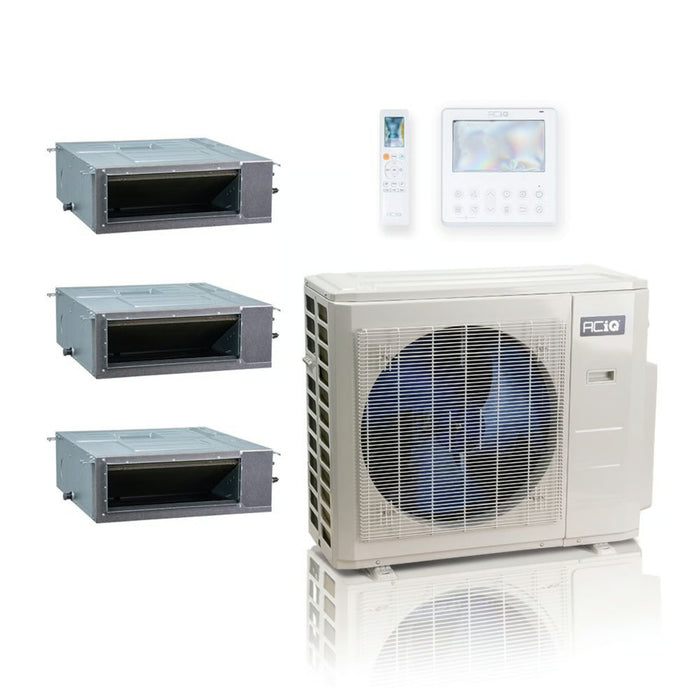

ACiQ - 36,000 BTU - 3-Zone Concealed Duct Mini Split Heat Pump System (9+9+18) - 20 SEER2 - R454B - 230V
ADD TO CART FOR INSTANT SAVINGS!
ADD TO CART FOR INSTANT SAVINGS!
This ACiQ 3-Zone Standard Series System combines high efficiency with advanced climate control. ES-36Z-M5C / ACIQ-09CD-HH-MC-2 / ACIQ-18CD-HH-MC is the perfect solution for year-round heating and cooling in up to 3 spaces. ACiQ is the smart solution to adaptive heating and cooling in almost any space and climate -all at an affordable cost. With the ES-36Z-M5C, you can have up to 5 air handlers run off a single condenser, saving space outside and keeping you perfectly comfortable in your home.
| ACiQ 3 Ton 24 SEER2 Multi Zone Condenser | Inverter - R454B | |
|---|---|
| SKU | ES-36Z-M5C |
| Refrigerant Charge | 123' |
| Weight | 180.120000 |
| AHRI Certificate Number | 216032382 |
| Manufacturer | ACiQ |
| Replaces | ES-36Z-M4B |
| HSPF2 | 9.5 |
| Cooling BTU | 36000 BTU |
| Heating BTU | 37000 BTU |
| Maximum CFM | 2148 |
| Decibel Level (dBA) | 64.5 |
| Electric Heat | Heat Pump |
| Energy Star | Yes |
| Refrigerant | R454B |
| SEER2 | 24 |
| Compressor Type | Rotary |
| Liquid Line | 1/4" (5) |
| Suction Line | 3/8" (4); 1/2" (1) |
| Electrical | 208/230V 1 Phase 60 Hz |
| Electric Phase Filter | Single Phase |
| Max Breaker Size | 35 A |
| Min. Breaker Size | 30.5 A |
| Tonnage | 3 Ton |
| BTU/Tonnage | 36,000 BTU/3 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Multi Zone |
| Ambient Temperature Range | -13 ~ 122 |
| Height | 31.89" |
| Width | 37.24" |
| Depth | 16.14" |
| Warranty | 12 year compressor, 7 year parts with online registration |
| 9,000 BTU Concealed Duct ACiQ Mini Split Air Handler | |
| SKU | ACIQ-09CD-HH-MC |
| Weight | 80.250000 |
| Manufacturer | ACiQ |
| Cooling BTU | 9,000 BTU |
| Heating BTU | 10,000 BTU |
| Maximum CFM | 352.94 |
| Decibel Level (dBA) | As low as 27 |
| Electric Heat | Heat Pump |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical | 208/230V 1 Phase 60Hz |
| Electric Phase Filter | Single Phase |
| Max Breaker Size | 15 |
| Min. Breaker Size | 15 |
| BTU/Tonnage | 9,000 BTU/0.75 Ton |
| Mini Split Type | Concealed Duct |
| Zone Compatibility | Multi Zone |
| Length | 27.56" |
| Height | 7.87" |
| Depth | 19.92" |
| Warranty | 12 year compressor, 7 year parts with online registration |
| 18,000 BTU Concealed Duct ACiQ Mini Split Air Handler | |
| SKU | ACIQ-18CD-HH-MC |
| Weight | 67.000000 |
| Manufacturer | ACiQ |
| Cooling BTU | 18,000 BTU |
| Heating BTU | 18,000 BTU |
| Maximum CFM | 529.41 |
| Decibel Level (dBA) | As low as 35 |
| Electric Heat | Heat Pump |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 208/230V 1 Phase 60Hz |
| Electric Phase Filter | Single Phase |
| Max Breaker Size | 25 |
| Min. Breaker Size | 20 |
| BTU/Tonnage | 18,000 BTU/1.5 Ton |
| Mini Split Type | Concealed Duct |
| Zone Compatibility | Multi Zone |
| Length | 34.65" |
| Height | 8.27" |
| Depth | 26.54" |
| Warranty | 12 year compressor, 7 year parts with online registration |
9,000 BTU Concealed Duct Unit
18,000 BTU Concealed Duct Unit
