ACiQ - 4 Ton/55,000 BTU High Efficiency Central Heat Pump System Inverter - 16 SEER2 - R454B - 230V
ADD TO CART FOR INSTANT SAVINGS!
ADD TO CART FOR INSTANT SAVINGS!

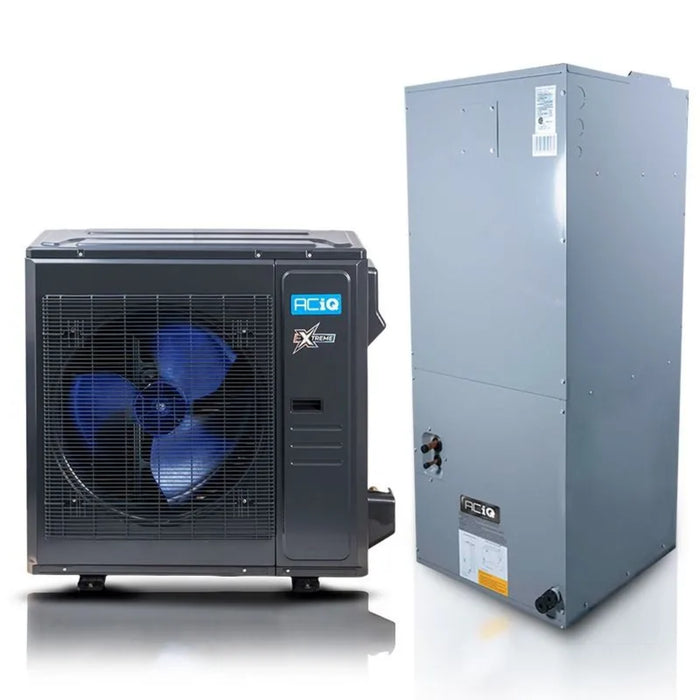

ACiQ's High-Efficiency 4 Ton Heat Pump System, featuring the ACIQ-48-EHPD inverter condenser and ACIQ-48-AHD air handler, offers the perfect balance of smart inverter technology and seamless integration with your existing ductwork. The ACiQ-48-EHPD 4 ton central inverter heat pump utilizes inverter technology to convert AC power to DC, allowing the compressor to adjust its speed. This enables the condenser to modify its BTU output based on the current demand, providing efficient and adaptable performance throughout varying weather conditions.
| ACiQ 4 Ton 16 SEER2 High Efficiency Central Heat Pump | Inverter - R454B | |
|---|---|
| SKU | ACIQ-48-EHPD |
| Refrigerant Charge | 25' |
| Weight | 224.210000 |
| Manufacturer | ACiQ |
| Replaces | ACIQ-48-EHPB |
| Product Features | Inverter, Two Stage Condenser, Variable Speed Condenser |
| HSPF2 | 8.5 |
| Cooling BTU | 47,000 BTU |
| Heating BTU | 55,000 BTU |
| Maximum CFM | 1601 |
| Decibel Level (dBA) | 65 |
| Electric Heat | Heat Pump |
| Refrigerant | R454B |
| SEER2 | 16 |
| Condenser Stages | Variable Speed |
| Compressor Type | Rotary |
| Liquid Valve Size | 3/8" |
| Suction Valve Size | 3/4" |
| Electrical | 208/230V 1 Phase 60 Hz |
| Max Breaker Size | 40 Amps |
| Min. Breaker Size | 36 Amps |
| Tonnage | 4 Ton |
| BTU/Tonnage | 48,000 BTU/4 Ton |
| Min/Max Outdoor Temp for Heating | -13°F - 75°F |
| Min/Max Outdoor Temp for Cooling | -13°F - 122°F |
| Ambient Temperature Range | -13°F - 122°F |
| Height | 38.4" |
| Width | 38.6" |
| Depth | 16.3" |
| Warranty | 12 Years Compressor and 7 Years Parts with Online Registration |
| ACiQ 4 Ton Central Ducted Air Handler - R454B | |
| SKU | ACiQ-48-AHD |
| Weight | 190.920000 |
| Manufacturer | ACiQ |
| Replaces | ACiQ-48-AHB |
| Cooling BTU | 48,000 BTU |
| Maximum CFM | 1601 |
| Decibel Level (dBA) | Up to 53 Decibels |
| Electric Backup Heat Capabilities (Optional) | 5 Kilowatts, 10 Kilowatts, 15 Kilowatts, 20 Kilowatts |
| Configuration | Multi-Positional |
| Refrigerant | R454B |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Electrical | 208/230V 1 Phase 60 Hz |
| Max Breaker Size | 15 Amps |
| Min. Breaker Size | 14.5 / 11.0 Amps |
| Tonnage | 4 Ton |
| BTU/Tonnage | 48,000 BTU/4 Ton |
| Mini Split Type | Multi-Positional |
| Zone Compatibility | Single Zone |
| Connection | Flared |
| Height | 53" |
| Width | 24.5" |
| Depth | 21" |
| Warranty | 12 Years Compressor and 7 Years Parts with Online Registration |
