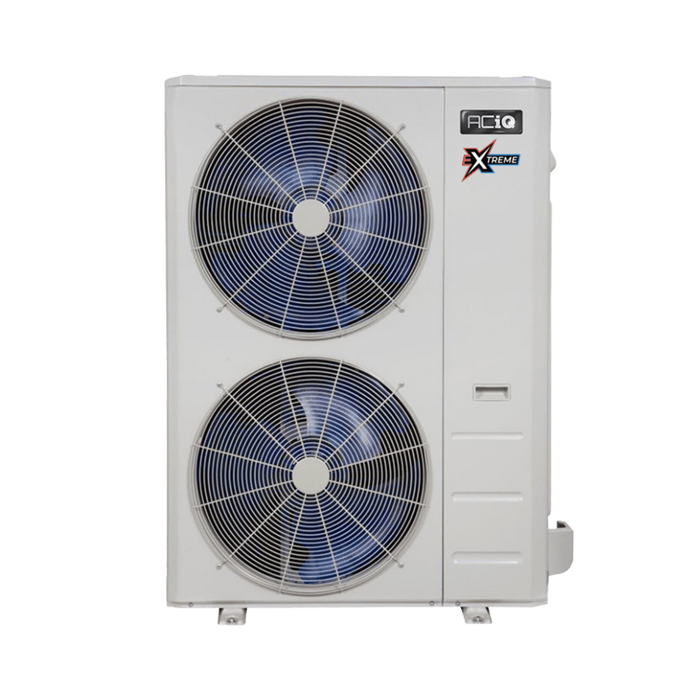

ACiQ - 5 Ton/55,000 BTU Extreme Series Multi-Zone Condenser - 22.2 SEER2 - R454B - 230V
ADD TO CART FOR INSTANT SAVINGS!
ADD TO CART FOR INSTANT SAVINGS!
ACiQ offers an intelligent solution to heating and cooling that is adaptable to any space and climate, all at an affordable cost. With the ACiQ-55Z-HH-M5B, you can operate up to 5 air handlers from a single condenser, saving outdoor space and keeping you comfortable in your home.
| 55,000 BTU 22.2 SEER2 ACiQ Multi Zone Condenser Extreme Series| R454B | |
|---|---|
| SKU | ACIQ-55Z-HH-M6C |
| Refrigerant Charge | 125' |
| Weight | 276.680000 |
| AHRI Certificate Number | 216032373 |
| Manufacturer | ACiQ |
| Replaces | ACIQ-55Z-HH-M5B |
| Product Features | Low Ambient Heating |
| HSPF2 | 10.5 |
| Cooling BTU | 51000 |
| Heating BTU | 55000 |
| Maximum CFM | 4503 |
| Decibel Level (dBA) | 65 |
| Electric Heat | Heat Pump |
| Energy Star | Yes |
| Refrigerant | R454B |
| SEER2 | 22.2 |
| Compressor Type | Twin Rotary |
| Liquid Line | 1/4" (6) |
| Suction Line | 3/8" (4); 1/2" (2) |
| Electrical | 208/230V 1 Phase 60 Hz |
| Max Breaker Size | 40 A |
| Min. Breaker Size | 39.5 A |
| Tonnage | 4.5 Ton |
| BTU/Tonnage | 55,000 BTU/4.5 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Multi Zone |
| Height | 52.48" |
| Width | 37.48" |
| Depth | 16.34" |
| Warranty | 12 year compressor, 7 year parts with online registration |
