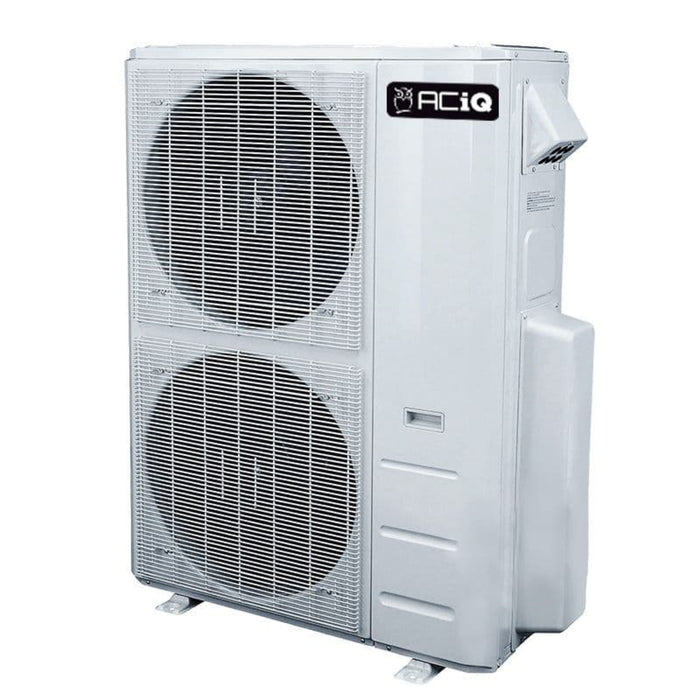

ACiQ - 5 Ton/55,000 BTU Multi-Zone Condenser Inverter - 22 SEER2 - R454B - 230V
ADD TO CART FOR INSTANT SAVINGS!
ADD TO CART FOR INSTANT SAVINGS!
ACiQ offers a smart solution to adaptive heating and cooling for almost any space and climate, all at an affordable cost. The ES-55Z-M5B is a multi-zone heat pump condenser that can run up to 5 air handlers off a single condenser, saving space outside while keeping your home perfectly comfortable. Here are some quick facts about this impressive unit:
| 55,000 BTU 22.0 SEER2 ACiQ Multi Zone Condenser | Inverter R454B | |
|---|---|
| SKU | ES-55Z-M6C |
| Refrigerant Charge | 147.6' |
| Weight | 270.280000 |
| AHRI Certificate Number | 210857395 |
| Manufacturer | ACiQ |
| HSPF2 | 9.1 |
| Cooling BTU | 55000 BTU |
| Heating BTU | 55000 BTU |
| Maximum CFM | 4500 |
| Decibel Level (dBA) | 62 |
| Electric Heat | Heat Pump |
| Energy Star | Yes |
| Refrigerant | R410A |
| SEER2 | 21.3 |
| Compressor Type | Rotary |
| Liquid Line | 1/4" (5) |
| Suction Line | 3/8" (3); 1/2" (2) |
| Electrical | 208/230V 1 Phase 60 Hz |
| Phase | Single Phase |
| Max Breaker Size | 60 Amps |
| Min. Breaker Size | 40 Amps |
| BTU/Tonnage | 55,000 BTU/4.5 Ton |
| Zone Compatibility | Multi Zone |
| Operating Mode | Cooling, Heating |
| Height | 52.48" |
| Width | 37.48" |
| Depth | 16.34" |
| Warranty | 12 year compressor, 7 year parts with online registration |
