ACiQ - 5 Ton/59,000 BTU High Efficiency Central Heat Pump System Inverter | Extreme Series - 16 SEER2 - R454B - 230V
ADD TO CART FOR INSTANT SAVINGS!
ADD TO CART FOR INSTANT SAVINGS!

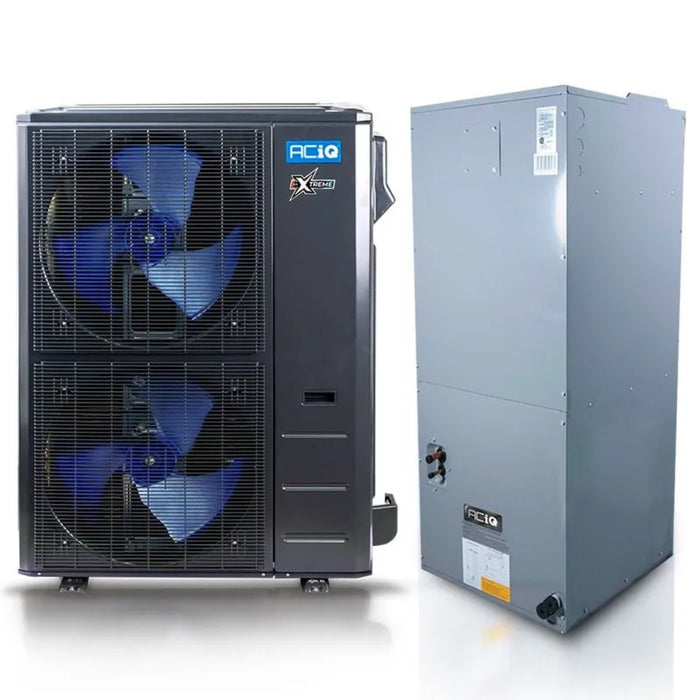

ACiQ's Central Ducted Heat Pump systems give you the best of both worlds - a self-adjusting, mini-split-style inverter condenser matched to a communicating air handler that attaches seamlessly to your existing ductwork.

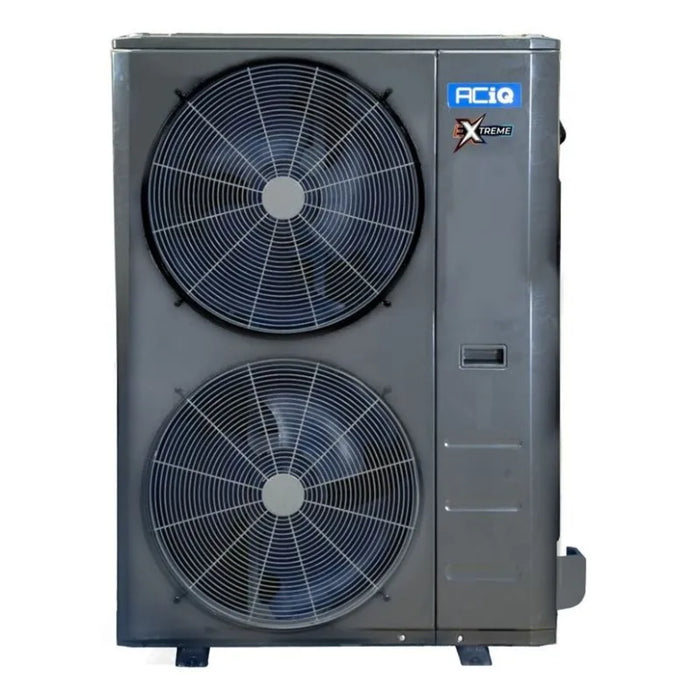

| ACiQ 5 Ton 16 SEER2 High Efficiency Central Heat Pump | Inverter | Extreme Series - R454B | |
|---|---|
| SKU | ACiQ-60-HPD |
| Refrigerant Charge | 25' |
| Weight | 275.130000 |
| Manufacturer | ACiQ |
| Replaces | ACiQ-60-HPB |
| Product Features | Inverter, Low Ambient Heating, Two Stage Condenser, Variable Speed Condenser |
| HSPF2 | 9.0 |
| Cooling BTU | 55,000 BTU |
| Heating BTU | 59,000 BTU |
| Maximum CFM | 1807 |
| Decibel Level (dBA) | 65 |
| Electric Heat | Heat Pump |
| Refrigerant | R454B |
| SEER2 | 16 |
| Condenser Stages | Variable Speed |
| Compressor Type | Rotary |
| Liquid Valve Size | 3/8" |
| Suction Valve Size | 3/4" |
| Electrical | 208/230V 1 Phase 60 Hz |
| Max Breaker Size | 40 Amps |
| Min. Breaker Size | 40 Amps |
| Tonnage | 5 Ton |
| BTU/Tonnage | 60,000 BTU/5 Ton |
| Min/Max Outdoor Temp for Heating | -22°F - 75°F |
| Min/Max Outdoor Temp for Cooling | -22°F - 122°F |
| Ambient Temperature Range | -22°F - 122°F |
| Height | 58.3" |
| Width | 37.5" |
| Depth | 16.3" |
| Warranty | 12 Years Compressor and 7 Years Parts with Online Registration |

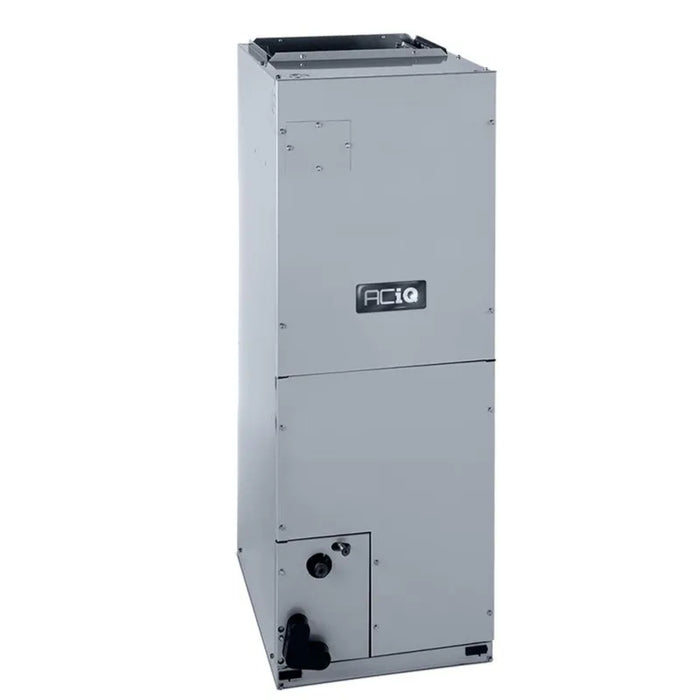

| ACiQ 5 Ton Central Ducted Air Handler - R454B | |
| SKU | ACiQ-60-AHD |
| Weight | 190.920000 |
| Manufacturer | ACiQ |
| Replaces | ACiQ-60-AHB |
| Cooling BTU | 54,000 BTU |
| Maximum CFM | 1807 |
| Decibel Level (dBA) | Up to 56 Decibels |
| Electric Backup Heat Capabilities (Optional) | 5 Kilowatts, 10 Kilowatts, 15 Kilowatts, 20 Kilowatts |
| Configuration | Multi-Positional |
| Refrigerant | R454B |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Electrical | 208/230V 1 Phase 60 Hz |
| Max Breaker Size | 15 Amps |
| Min. Breaker Size | 14.5 / 11.0 Amps |
| Tonnage | 5 Ton |
| BTU/Tonnage | 60,000 BTU/5 Ton |
| Mini Split Type | Multi-Positional |
| Zone Compatibility | Single Zone |
| Connection | Flared |
| Height | 53" |
| Width | 24.5" |
| Depth | 21" |
| Warranty | 12 Years Compressor and 7 Years Parts with Online Registration |
