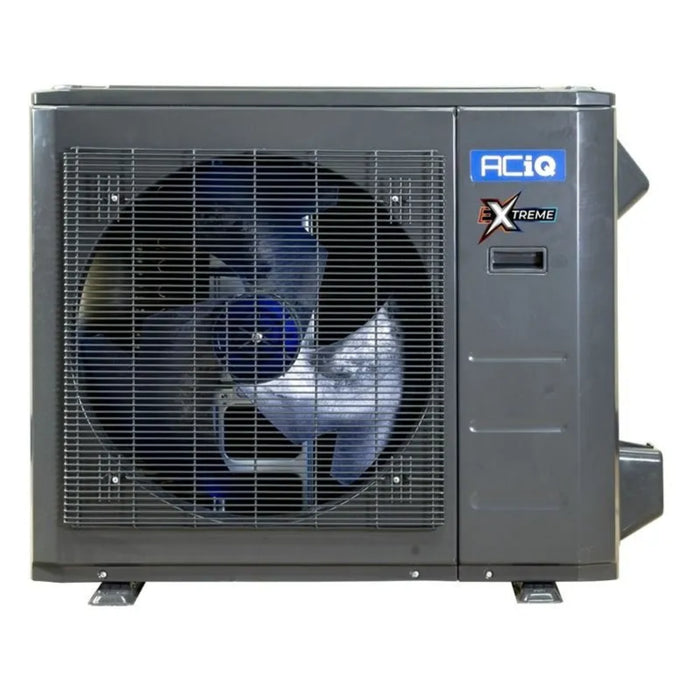

ACiQ - 5 Ton/60,000 BTU High Efficiency Central Heat Pump Inverter | Extreme Series - 15.2 SEER2 - R454B - 230V
ADD TO CART FOR INSTANT SAVINGS!
ADD TO CART FOR INSTANT SAVINGS!
The ACiQ-60-EHPD 5 Ton Heat Pump uses inverter technology to adjust compressor speed in real time. It changes AC to DC power, letting the system shift BTU output based on your home’s needs. This gives you smooth comfort and better energy savings in any season. Its smart learning condenser tracks temperature, duct pressure, and refrigerant flow. At startup, it enters learning mode to gather data and boost long-term performance. With adaptive sizing, it adjusts to your heating needs without overcooling in summer. It runs like a smaller unit when needed, helping prevent sticky air and high humidity. Built for year-round comfort, this system keeps your home balanced and efficient.
| ACiQ 5 Ton 15.2 SEER2 High Efficiency Central Heat Pump | Inverter - R454B | |
|---|---|
| SKU | ACiQ-60-EHPD |
| Refrigerant Charge | 25' |
| Weight (in lbs) | 224.210000 |
| Brand/Manufacturer | ACiQ |
| Replaces | ACiQ-60-EHPB |
| Product Features | Inverter, Two Stage Condenser, Variable Speed Condenser |
| HSPF2 | 8.4 |
| Cooling BTU | 57,000 BTU |
| Heating BTU | 60,000 BTU |
| Maximum CFM | 1807 |
| Decibel Level (dBA) | 65 |
| Electric Heat | Heat Pump |
| Refrigerant | R454B |
| SEER2 (Efficiency) | 15.2 |
| Condenser Stages | Variable Speed |
| Compressor Type | Rotary |

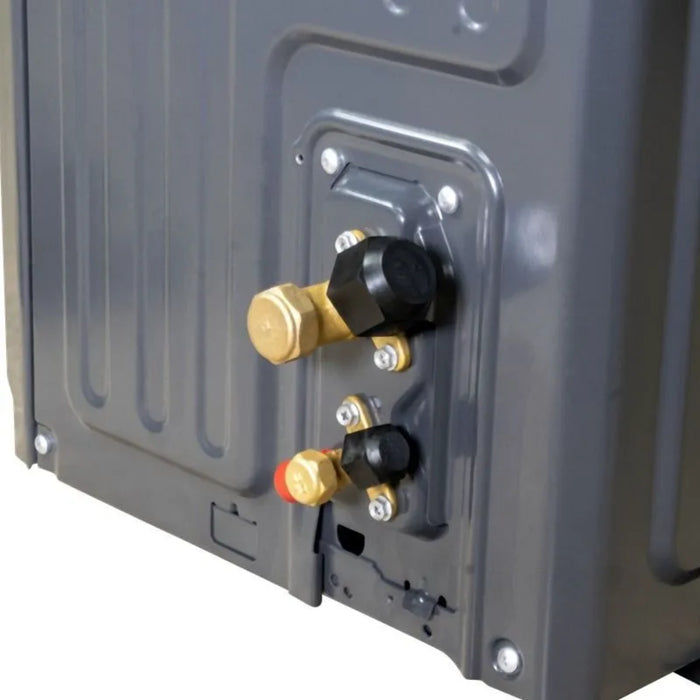

| Liquid Valve Size | 3/8" |
| Suction Valve Size | 3/4" |
| Electrical | 208/230V 1 Phase 60 Hz |
| Max Breaker Size | 40 Amps |
| Min. Breaker Size | 39 Amps |
| Tonnage | 5 Ton |
| BTU/Tonnage | 60,000 BTU/5 Ton |
| Min/Max Outdoor Temp for Heating | -13°F - 75°F |
| Min/Max Outdoor Temp for Cooling | -13°F - 122°F |
| Ambient Temperature Range | -13°F - 122°F |
| Height | 38.4" |
| Width | 38.6" |
| Depth | 16.3" |
| Warranty | 12 Years Compressor and 7 Years Parts with Online Registration |
