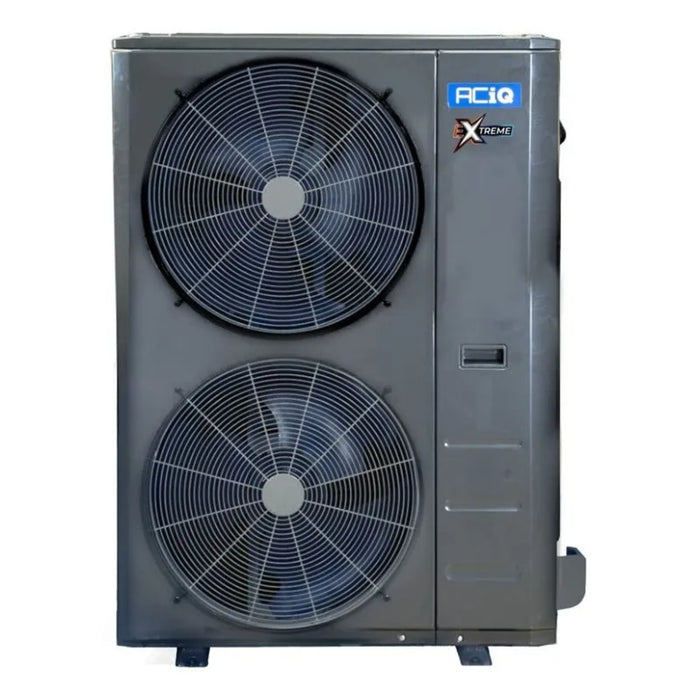

ACiQ - 5 Ton/60,000 BTU High Efficiency Central Heat Pump Inverter | Extreme Series - 16 SEER2 - R454B - 230V
ADD TO CART FOR INSTANT SAVINGS!
ADD TO CART FOR INSTANT SAVINGS!
The ACiQ-60-HPD 5 Ton Extreme Series Heat Pump uses inverter tech to adjust its output. It turns AC into DC power, letting the compressor speed up or slow down as needed. This means your system changes with the weather for smart, steady comfort. The learning condenser uses advanced sensors to track temperatures, pressure, and refrigerant levels. At first startup, it enters learning mode to fine-tune future performance and save energy. With adaptive sizing, it matches your heating needs without overcooling in summer. It works like a smaller unit when cooling, cutting down on sticky indoor air. Built for extreme efficiency, this unit offers powerful year-round performance that adjusts to your home.
| ACiQ 5 Ton 16 SEER2 High Efficiency Central Heat Pump | Inverter | Extreme Series - R454B | |
|---|---|
| SKU | ACiQ-60-HPD |
| Refrigerant Charge | 25' |
| Weight (in lbs) | 275.130000 |
| Brand/Manufacturer | ACiQ |
| Replaces | ACiQ-60-HPB |
| Product Features | Inverter, Low Ambient Heating, Two Stage Condenser, Variable Speed Condenser |
| HSPF2 | 9.0 |
| Cooling BTU | 55,000 BTU |
| Heating BTU | 59,000 BTU |
| Maximum CFM | 1807 |
| Decibel Level (dBA) | 65 |
| Electric Heat | Heat Pump |
| Refrigerant | R454B |
| SEER2 (Efficiency) | 16 |
| Condenser Stages | Variable Speed |
| Compressor Type | Rotary |
| Liquid Valve Size | 3/8" |
| Suction Valve Size | 3/4" |
| Electrical | 208/230V 1 Phase 60 Hz |
| Max Breaker Size | 40 Amps |
| Min. Breaker Size | 40 Amps |
| Tonnage | 5 Ton |
| BTU/Tonnage | 60,000 BTU/5 Ton |
| Min/Max Outdoor Temp for Heating | -22°F - 75°F |
| Min/Max Outdoor Temp for Cooling | -22°F - 122°F |
| Ambient Temperature Range | -22°F - 122°F |
| Height | 58.3" |
| Width | 37.5" |
| Depth | 16.3" |
| Warranty | 12 Years Compressor and 7 Years Parts with Online Registration |
