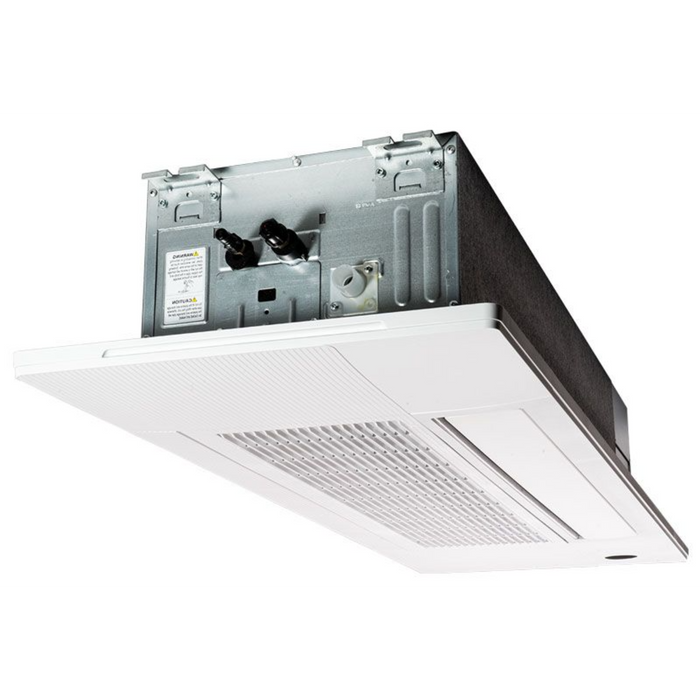

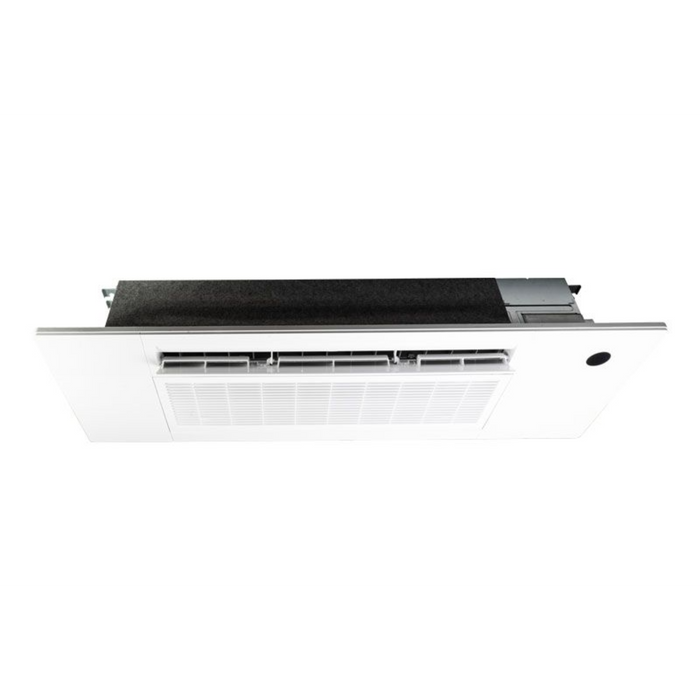

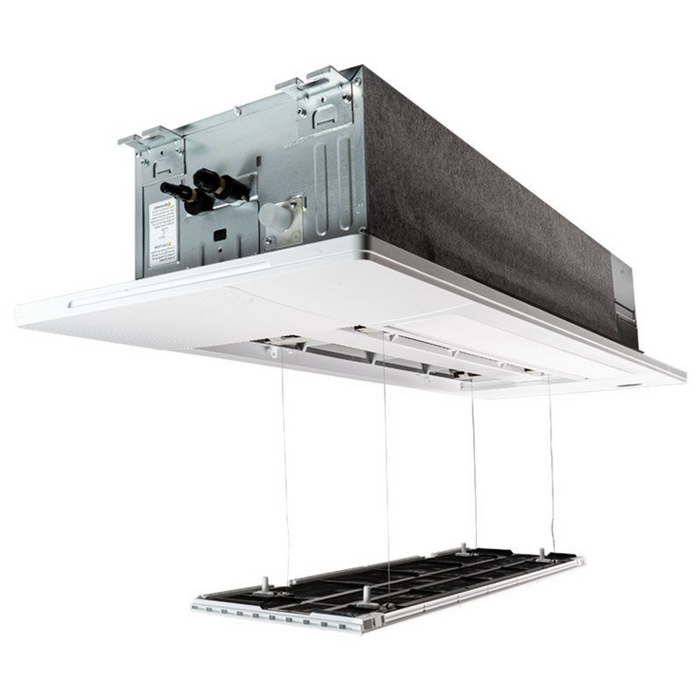

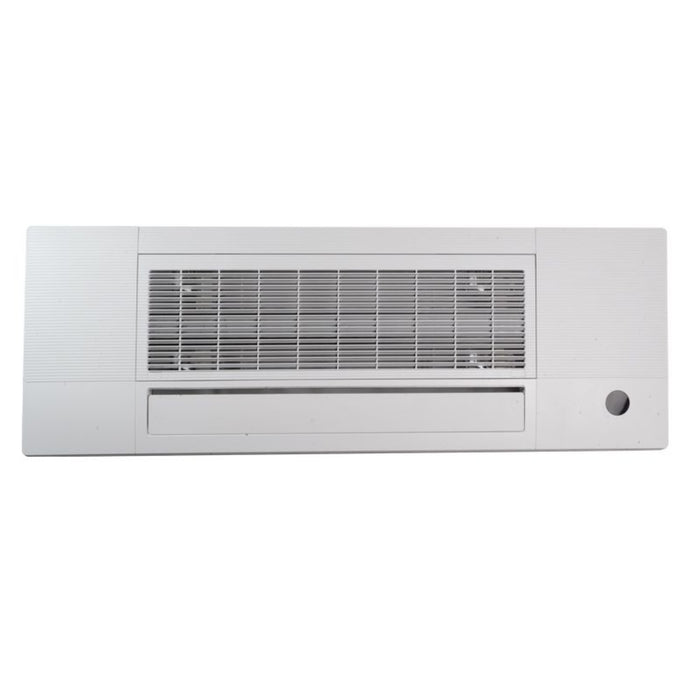

ACiQ - 6,000-12,000 BTU Slim Ceiling Cassette Mini-Split Air Handler - R454B - 230V
ADD TO CART FOR INSTANT SAVINGS!
ADD TO CART FOR INSTANT SAVINGS!
Slim Ceiling Cassettes give you the advantages of a traditional cassette, but in a slimmer profile designed to fit between 16”-on-center joists. This means an easier installation in many cases. Slim Ceiling Cassettes have a one-way air delivery, taking in return air along one edge and delivering conditioned air out the other. Traditional ceiling cassettes send conditioned air out in 4 directions and take return air in at the center. Slim Ceiling Cassette air handlers provide the same high-efficiency heating and cooling of a regular wall-mounted unit and come with a hand-held remote control. Once mounted in the ceiling, only the grille is visible for the most understated appearance.
Switchable Sizing
| 6,000/12,000 BTU Slim Ceiling Cassette ACiQ Mini Split Air Handler| R454B | |
|---|---|
| SKU | SCC-0612-HH-MB |
| Weight (in lbs) | 43.870000 |
| Brand/Manufacturer | ACiQ |

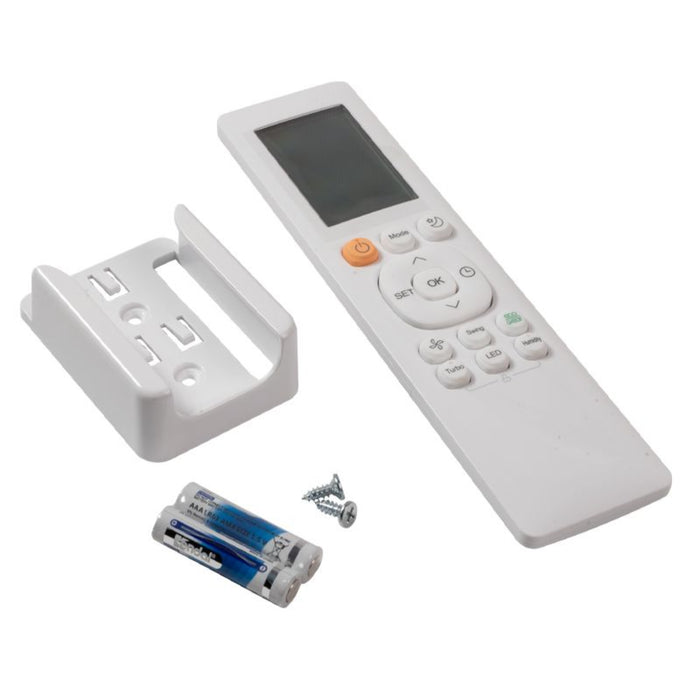

| Controller | Wireless Included |
| Cooling BTU | 9000 BTU |
| Heating BTU | 10900 BTU |
| Maximum CFM | 341.18 |
| Decibel Level (dBA) | As low as 31 |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical | 208/230V 1 Phase 60Hz |
| Phase | Single Phase |
| BTU/Tonnage | 9,000 BTU/0.75 Ton |
| Mini Split Type | Ceiling Cassette |
| Zone Compatibility | Multi Zone |
| Height | 8.98" |
| Width | 50.31" |
| Depth | 13.19" |
| Warranty | 12 year compressor, 7 year parts with online registration |
