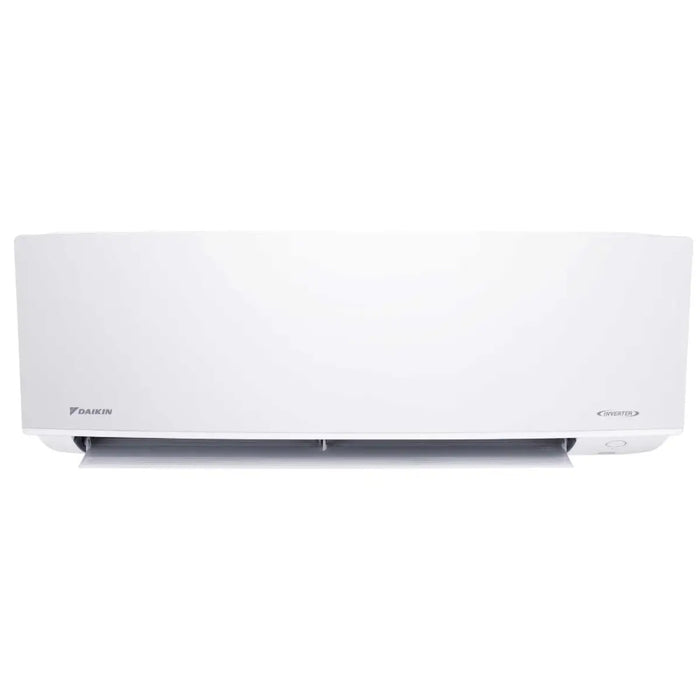

Daikin - 24,000 BTU - Entra Series Wall Mount Mini Split AC and Condenser - SEER2 18.0 - 230V

The new Daikin Entra Series boasts R-32 low-GWP refrigerant. R32 is up to 12% more efficient than R410A, resulting in lower Global Warming Potential (GWP). The lower the GWP, the better for the environment. The Entra Series provides energy efficient, comfort control for a single zone. This unit is a cooling system with a heat pump. Each single zone system comes complete with an indoor and outdoor unit as well as a remote. The updated design of the wall-mounted FTXC24AXVJU pairs with a quiet, compact outdoor unit (RXC24AXVJU). This unit offers 22,400 BTUs cooling capacity and 23,000 BTUs heating. It boasts an EER2 of 10.5, SEER2 rating of 18.0, and an HSP2F of 9.0.

Features

• Enhanced Performance: Instantly boosts cooling or heating power for 20 minutes, even at high capacity.
• Energy-Saving ECO+ Mode: Automatically adjusts temperature for optimal energy use while maintaining comfort.
• Improved Coil Cleanliness and Lifespan: Hydrophilic coating allows easy movement of condensate water, enhancing coil cleanliness and lifespan.
• Effective Air Purification: Titanium Apatite Photocatalytic Filter removes particles and neutralizes odors for cleaner air.
• Enhanced Durability: Anti-corrosion treatment on heat exchanger ensures long-lasting performance in any climate.

Specification

• Type: Wall Mounted
• Product Line: Entra
• Product Category: Mini Split Heat Pump System
• Operating Mode: Heating and Cooling
• Number of Zones: 1
• Refrigerant Type: R-32
• DOE Regional Compliance: Nationwide
• Line Set Size: 1/4" x 5/8"
• Performance:
• Cooling BTU: 24000
• Cooling Capacity:  22,400 BTU
• Heating Capacity:  23,000 BTU
• Cooling BTU Output Range: 5,800/27,300
• Heating BTU Output Range: 10,500 / 1.90
• Low Ambient Heating: No
• Minimum Outdoor Temperature for Heating: 5°F (-15°C)
• Minimum Outdoor Temperature for Cooling: 50°F (10°C)
• SEER (Seasonal Energy Efficiency Ratio): 18.0
• EER (Energy Efficiency Ratio): 10.50
• HSPF (Heating Seasonal Performance Factor): 9.00
• Electrical Data:
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Dimensions:
• Product Weight: 128 Pounds
• Shipping Weight: 138 Pounds
• Certifications:
• ETL Listed: Yes
• AHRI Certified: Yes
• AHRI Reference Number: 213895725

Owner's Manual

• Brochure
• Operation Manual
• Service Manual
• Specifications
• Warranty

All Daikin products are to be installed in accordance with the manufacturer's installation methods and recommendations by a licensed HVAC-R/electrical/plumbing technician, as required. Failure to do so, may result in voiding the manufacturer's warranty.”
