Daikin - 9,000 BTU - Entra Series Wall Mount Mini Split AC and Condenser - SEER2 18.0 - 230V

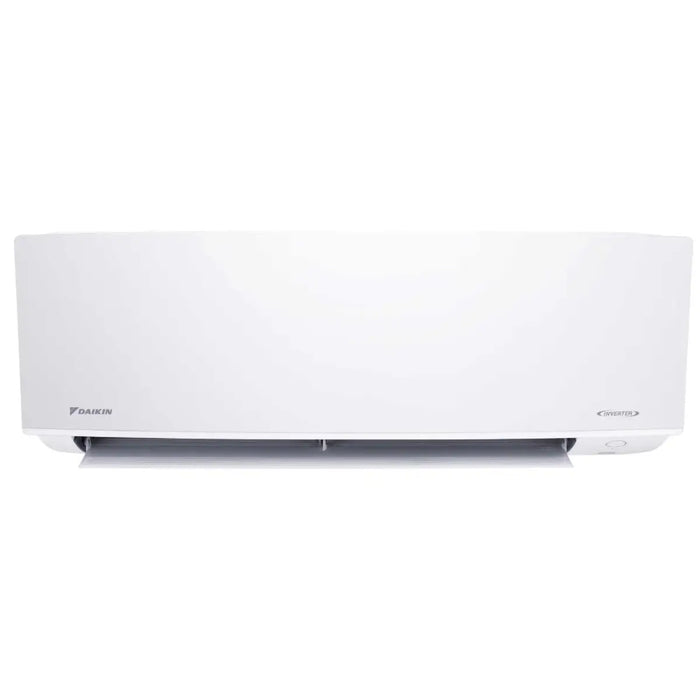

Daikin, a renowned name in HVAC, presents the RXC09AXVJU FTXC09AXVJU wall-mounted system, ideal for single-zone heating and cooling. This setup combines a Daikin wall-mounted indoor unit with an outdoor heat pump unit, delivering efficient and quiet air comfort to any room. With robust energy-saving features, Daikin ensures cost-efficient home comfort.

Features

• Enhanced Performance: Remote's powerful operation provides a temporary cooling or heating boost for 20 minutes, even during high capacity operation.
• Energy-Saving ECO+ Mode: Automatically adjusts temperature to optimize energy consumption while maintaining comfort.
• Improved Coil Cleanliness and Lifespan: Hydrophilic coated Blue Fin Protection facilitates condensate water movement, enhancing coil cleanliness and lifespan.
• Effective Air Purification: Titanium Apatite Photocatalytic Filter efficiently purifies and deodorizes air for improved indoor air quality.
• Enhanced Durability: Anti-corrosion treatment on the heat exchanger ensures long-lasting performance in various climates.

Specification

• Type: Wall Mounted
• Product Line: Entra
• Product Category: Mini Split Heat Pump System
• Operating Mode: Heating and Cooling
• Number of Zones: 1
• Refrigerant Type: R-32
• DOE Regional Compliance: Nationwide
• Line Set Size: 1/4" x 3/8"
• Performance:
• Cooling BTU: 9000
• Cooling Capacity: 9,000 BTU
• Heating Capacity: 9400 BTU
• Cooling BTU Output Range:  4,400/10,200
• Heating BTU Output Range:  4,400/13,000

• Low Ambient Heating: No
• Minimum Outdoor Temperature for Heating: 5°F (-15°C)
• Minimum Outdoor Temperature for Cooling: 50°F (10°C)
• SEER (Seasonal Energy Efficiency Ratio): 18.0
• EER (Energy Efficiency Ratio): 11.0
• HSPF (Heating Seasonal Performance Factor): 9.0
• Electrical Data:
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Dimensions:
• Product Weight: 75.3 Pounds
• Shipping Weight: 85.3 Pounds
• Certifications:
• ETL Listed: Yes
• AHRI Certified: Yes
• AHRI Reference Number:  213895727

Owner's Manual

• Brochure
• Installation Manual
• Service Manual
• Specification
• Warranty

All Daikin products are to be installed in accordance with the manufacturer's installation methods and recommendations by a licensed HVAC-R/electrical/plumbing technician, as required. Failure to do so, may result in voiding the manufacturer's warranty.
